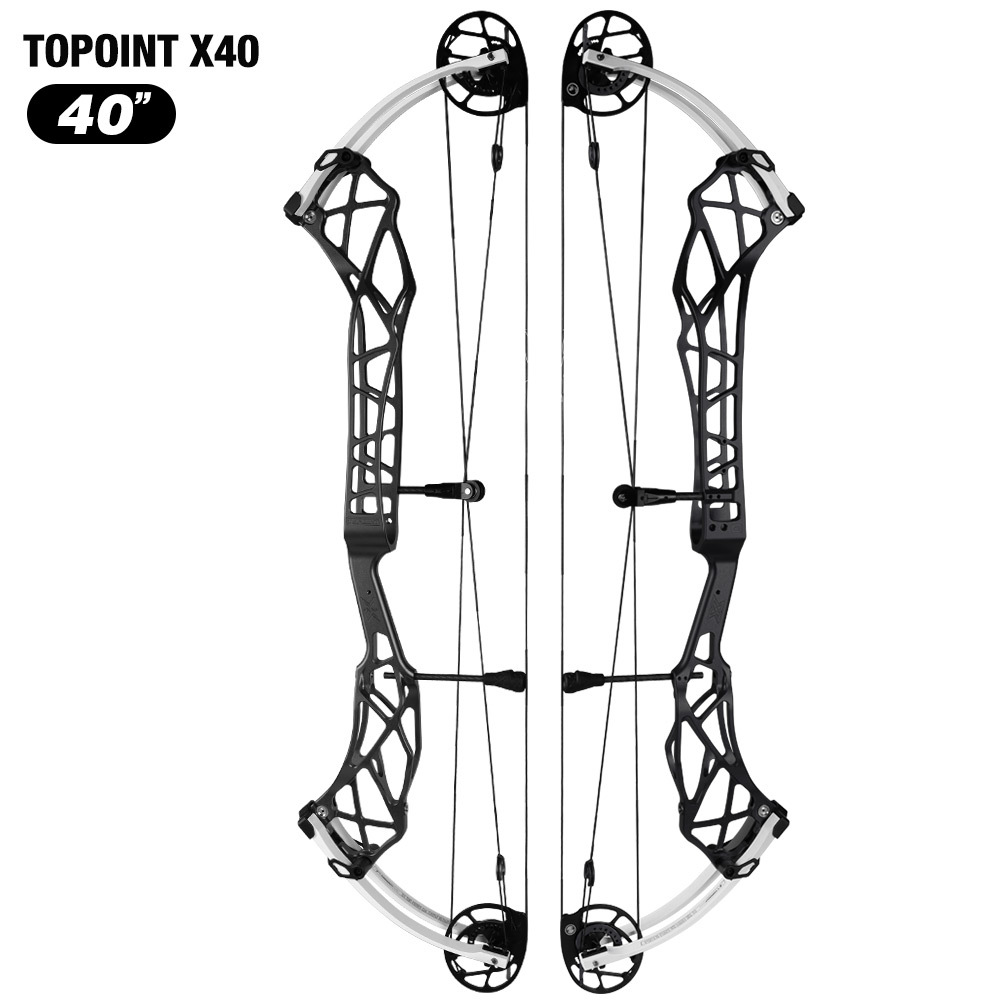

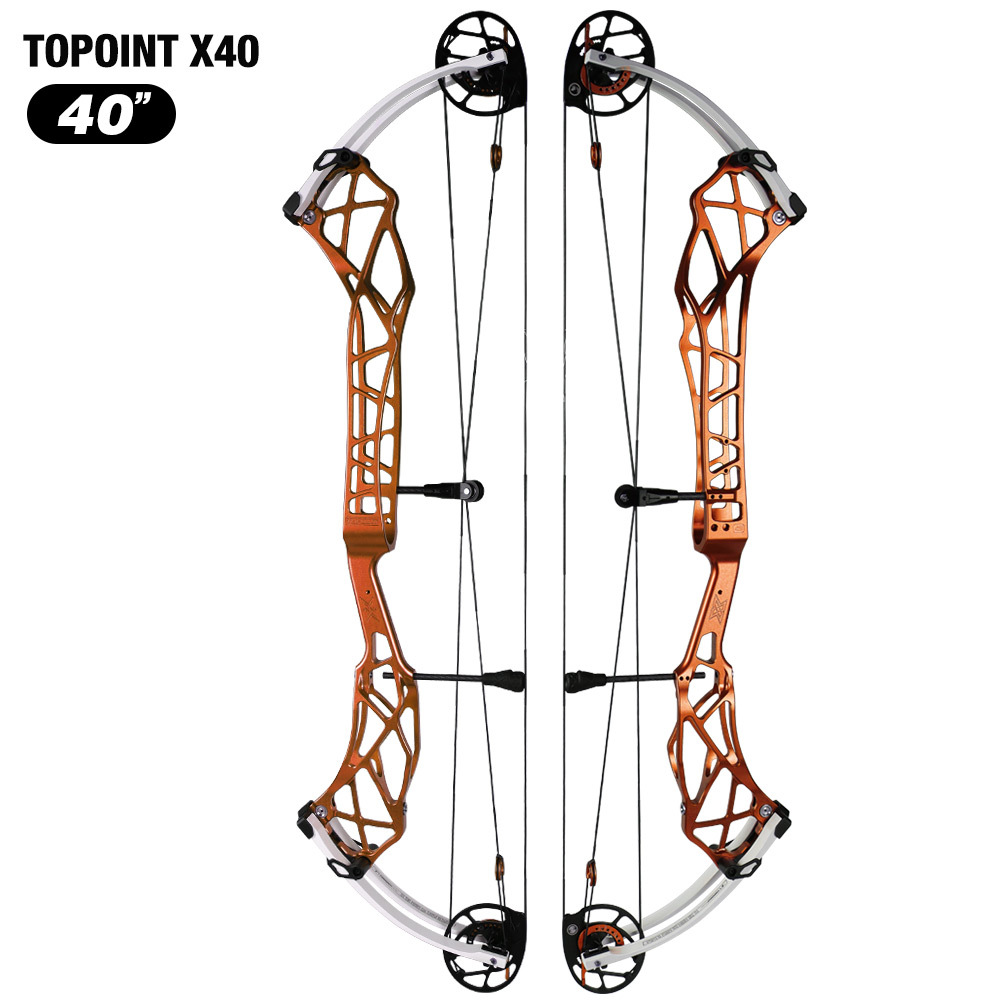

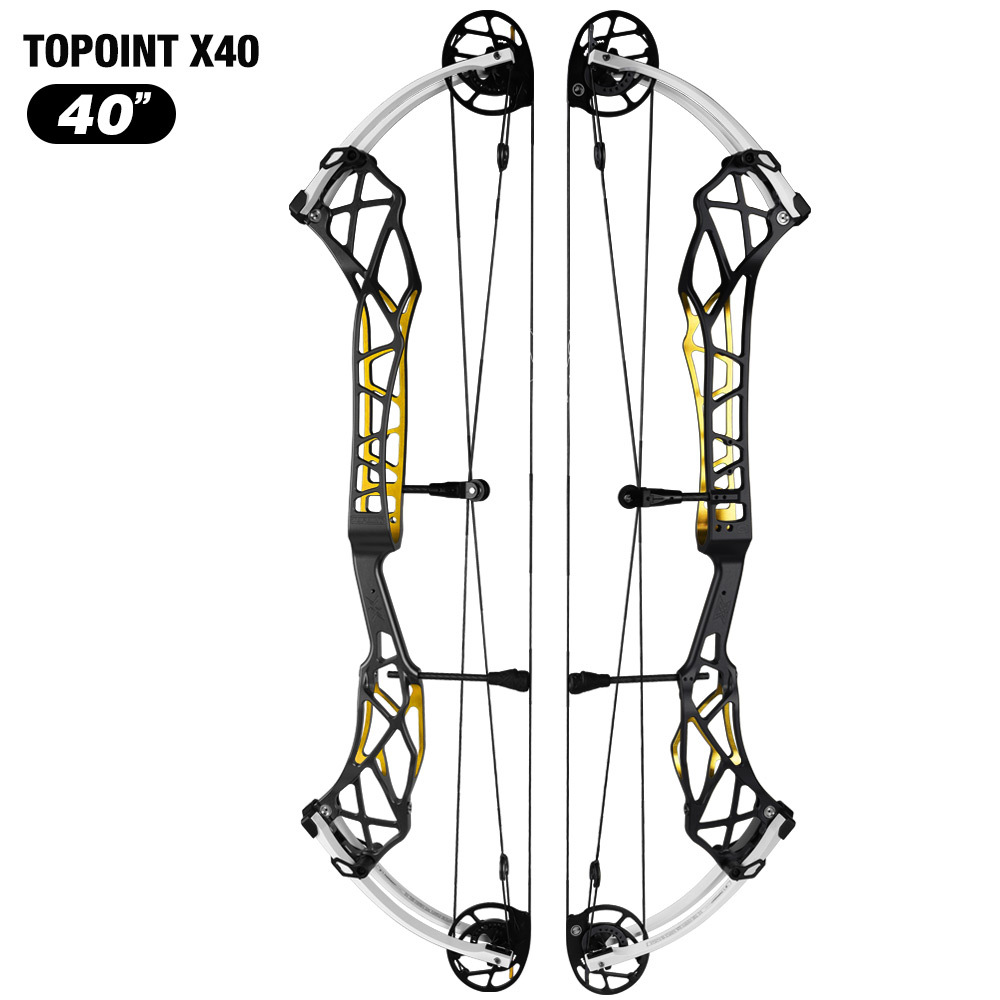

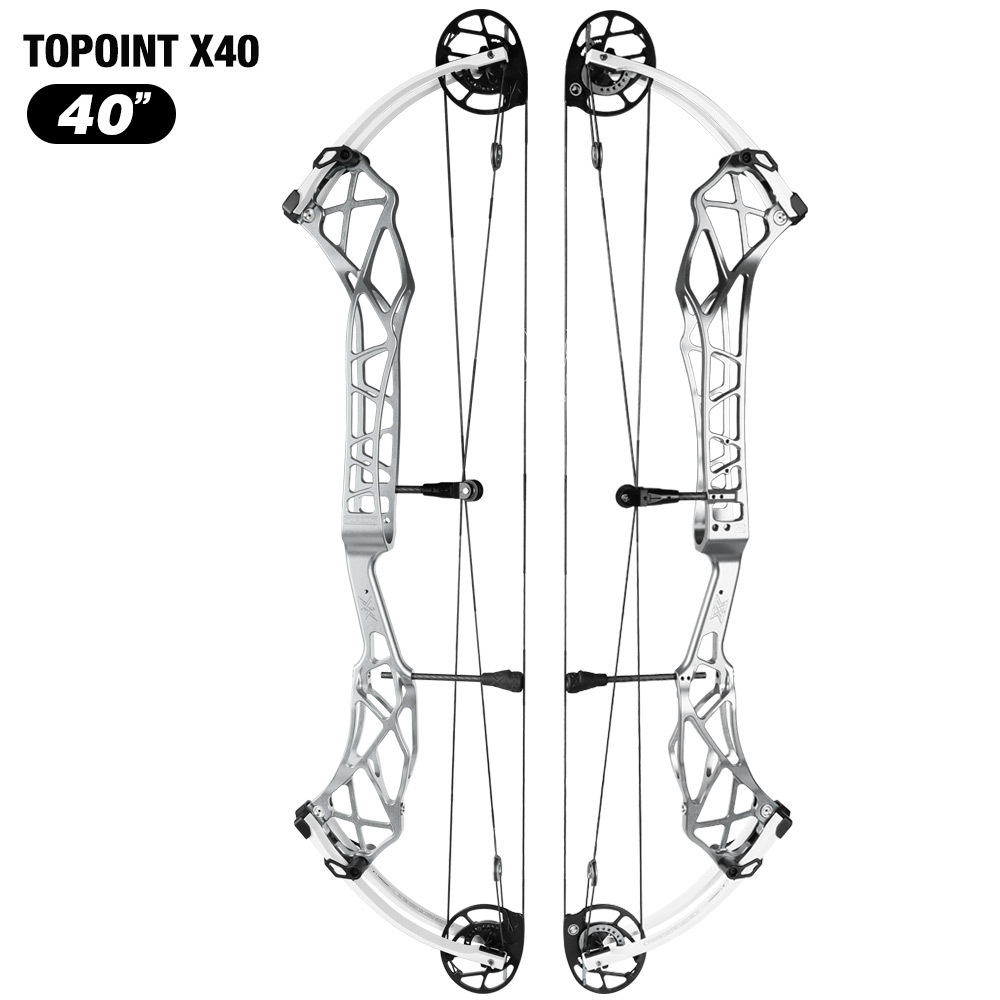

TOPOINT X 40 Target Compound Bow, Axle-Axle 40'',Draw Weright 40-50LB/50-60LB,Draw Length 25-28" / 27-31"

Sold:3
Price:
USD
$1099.00
  • Draw Weight:
    40-50lbs
    50-60lbs
  • Hand:
    RH
    LH
  • Draw Length:
    27-31"
    25-28"
  • Riser Color:
    Purple
    Red
    Black
    Green
    Orange
    Smoke
    Turquoise
    Pink
    Blue
    Sliver
    Black&Red
    Black&Green
    Black&Purple
    Black&Blue
    Black&Turqoise
    Blak&Orange
    Black&Gold
Quantity:
-
+
(1360 available)
Please select the information you wantX
  • Description
  • Reviews

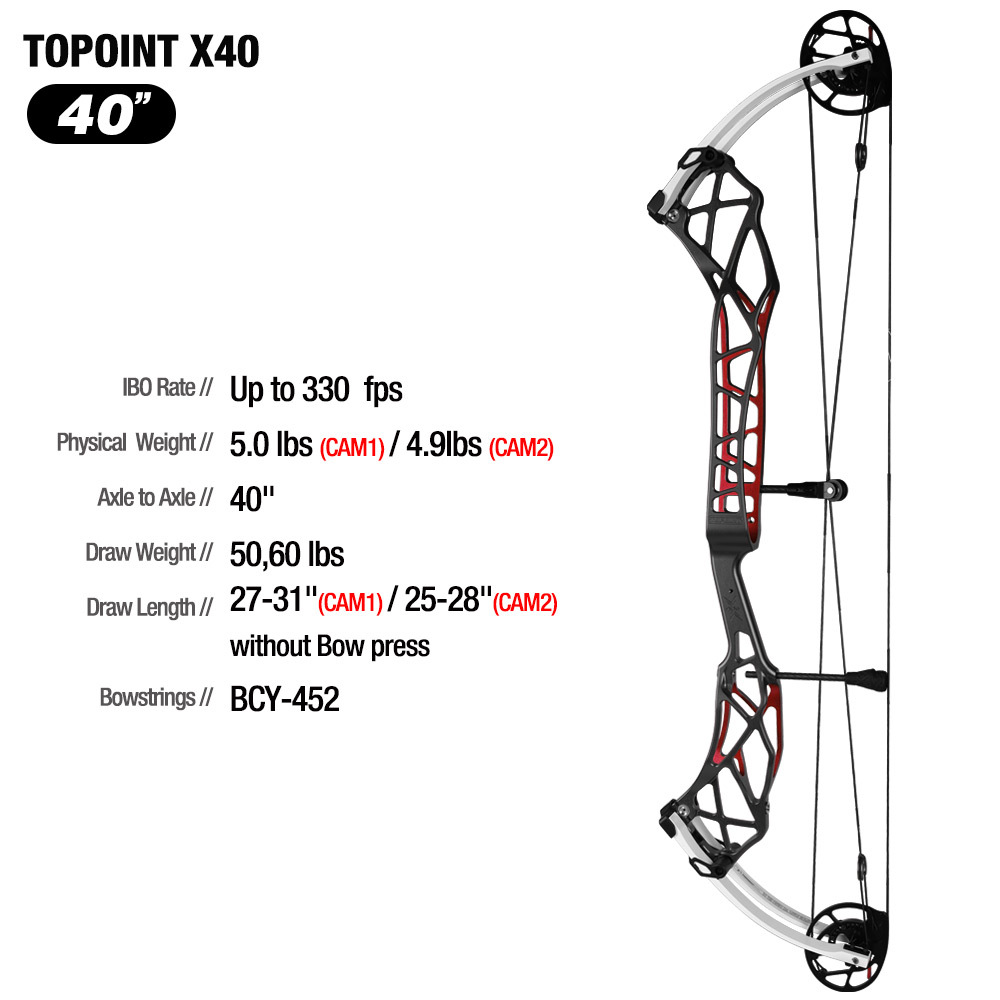

Product name COMPOUND BOW TOPOINT X40
Brand TOPOINT
Material  Aluminum
Specification Cam //  Dual/Adjustable(CAM1)
IBO Rate // Up to 330 fps
Physical Weight // 4.85 lbs.
Axle to Axle // 40"
Brace Height // 7"
Let-off // 66% 70% 75%
Draw Weight // 50,60lbs
Riser // Aluminum CNC Machining
Finish // Anodized
Draw Length // 27-31",without Bow press
Bowstrings // BCY-X99
String Length // 63.58"
Cable Length // 38.74"X2
Grip // Auminum
Cam //  Dual/Adjustable(CAM2)
IBO Rate // Up to 330 fps
Physical Weight // 4.76 lbs.
Axle to Axle // 40"
Brace Height // 6.75"
Let-off // 66% 70% 75%
Draw Weight // 50,60lbs
Riser // Aluminum CNC Machining

Finish // Anodized
Draw Length // 25-28",without Bow press
Bowstrings // BCY-X99
String Length // 58.66"
Cable Length // 38.5"X2
Grip // Auminum

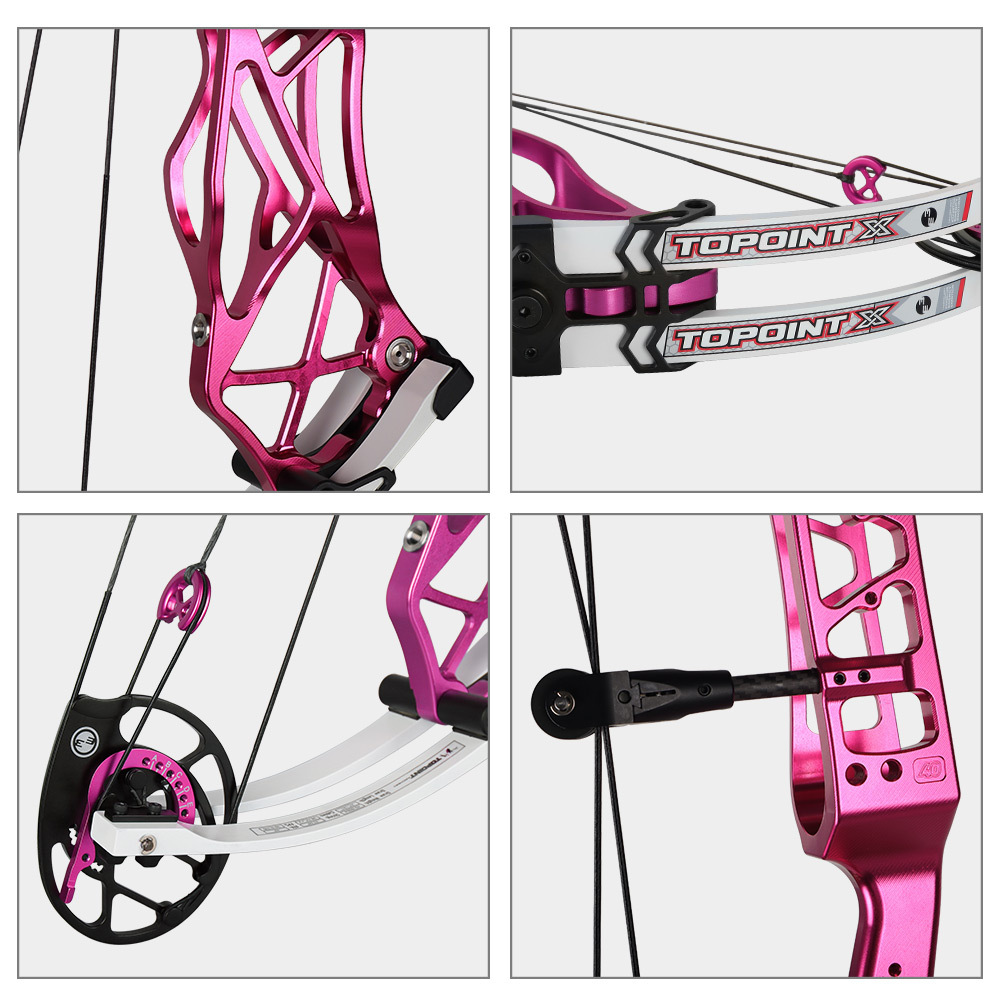

  The limbs are imported from USA producedby Gordon Composites ,the most popularlimb supplier in the world. The 23mm widthlimbs make the bow more stronger,meanwhile these limbs can help thebow perform better in daily use.

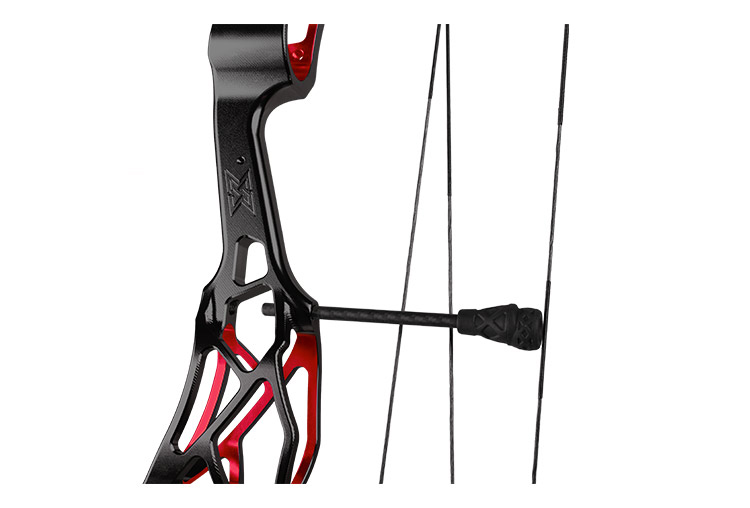

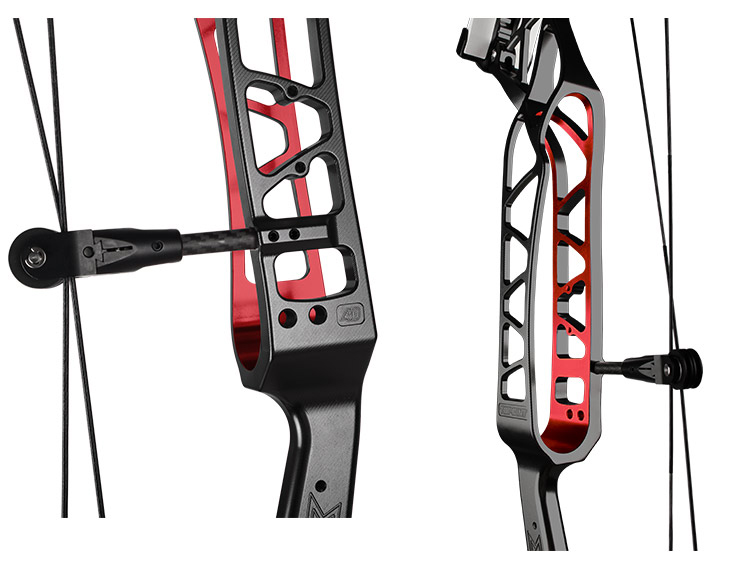

CNC milling technique make the grip morestronger. Special angle design of the griphelp you increase shooting consistencyand accuracy.CNC machining bow riser, material: 6061-T6

CNC machining bow cam, material: 7075-T6

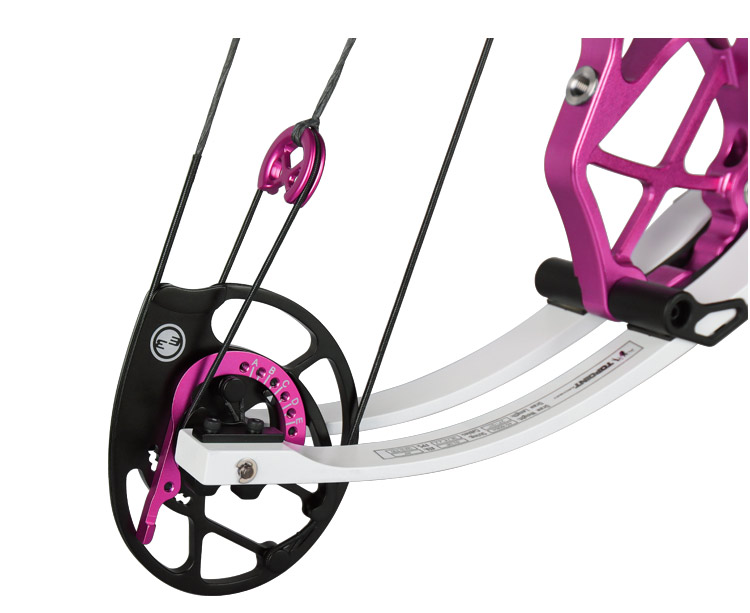

The Cam designed by the famouscompound bow designer in China, this camsystem can adjust the draw lenath withoutbow press,2 kinds of different draw lengthCams can be seleced this can fit almost alldifferent draw lengths' players. Hight speeddesign can help you increase shooting
consistency and accuracy.

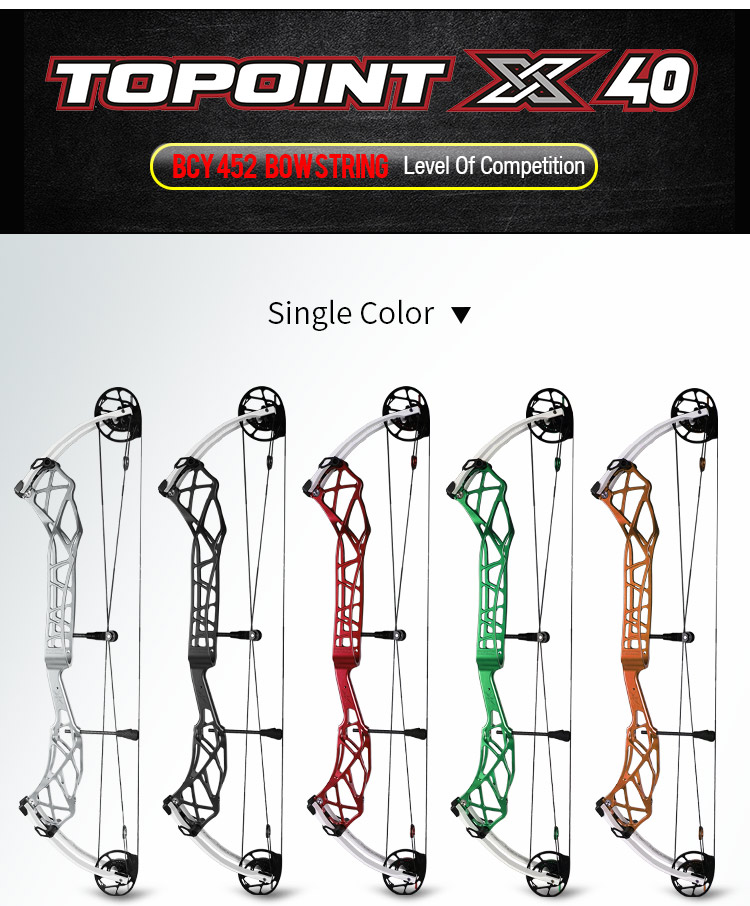

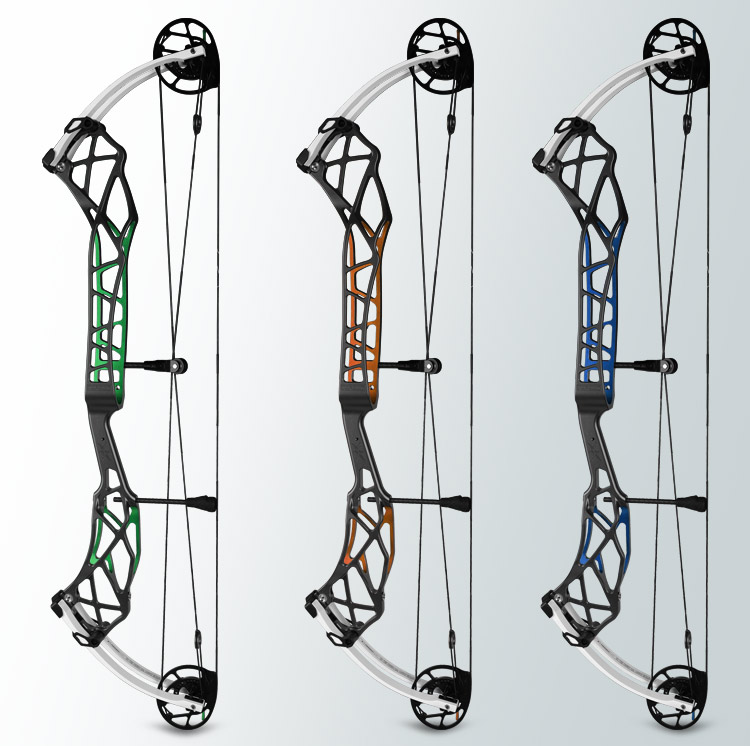

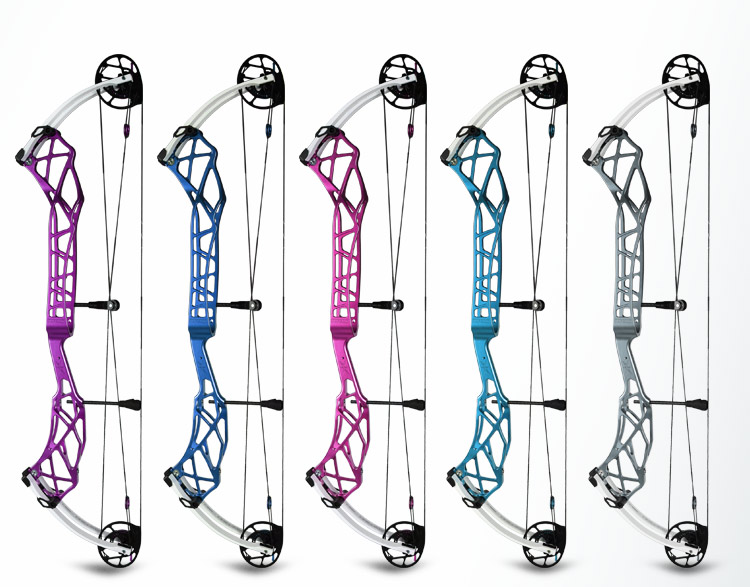

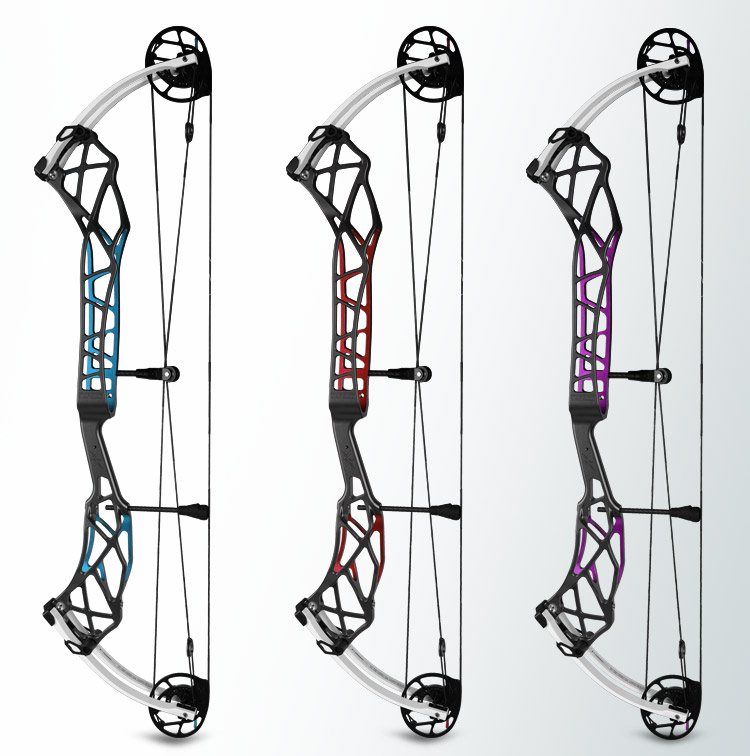

Surface finish: Anodized ,10color select
Bow string use BCY material
Draw Length: 25-31”Adjustable, without bow press
Draw weight: 50lbs/60bs

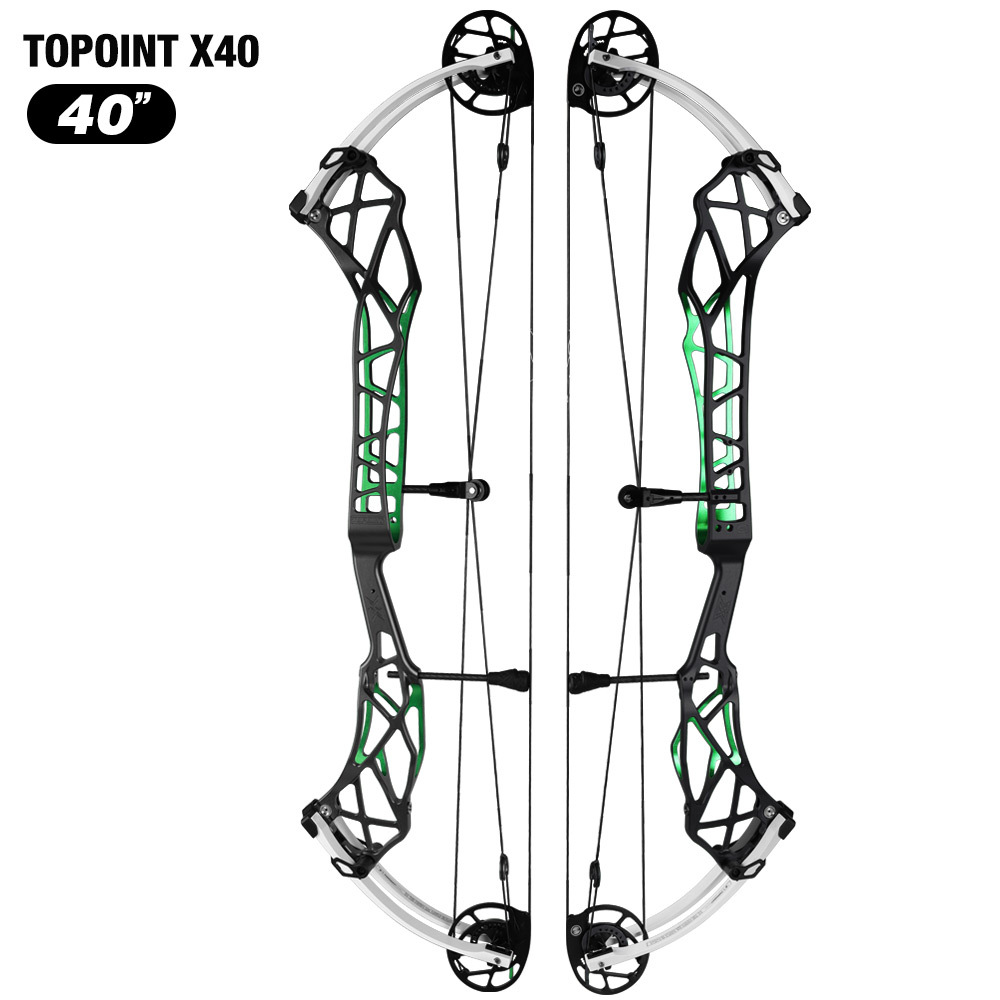

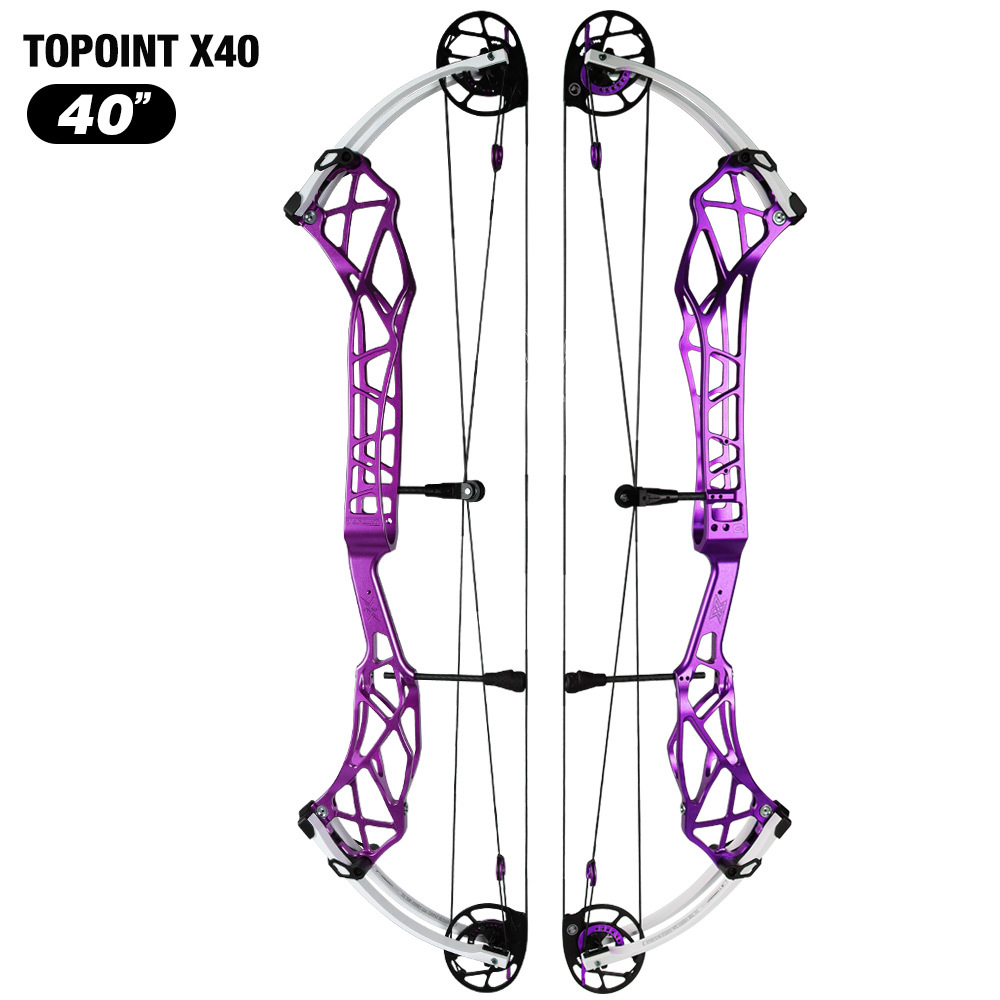

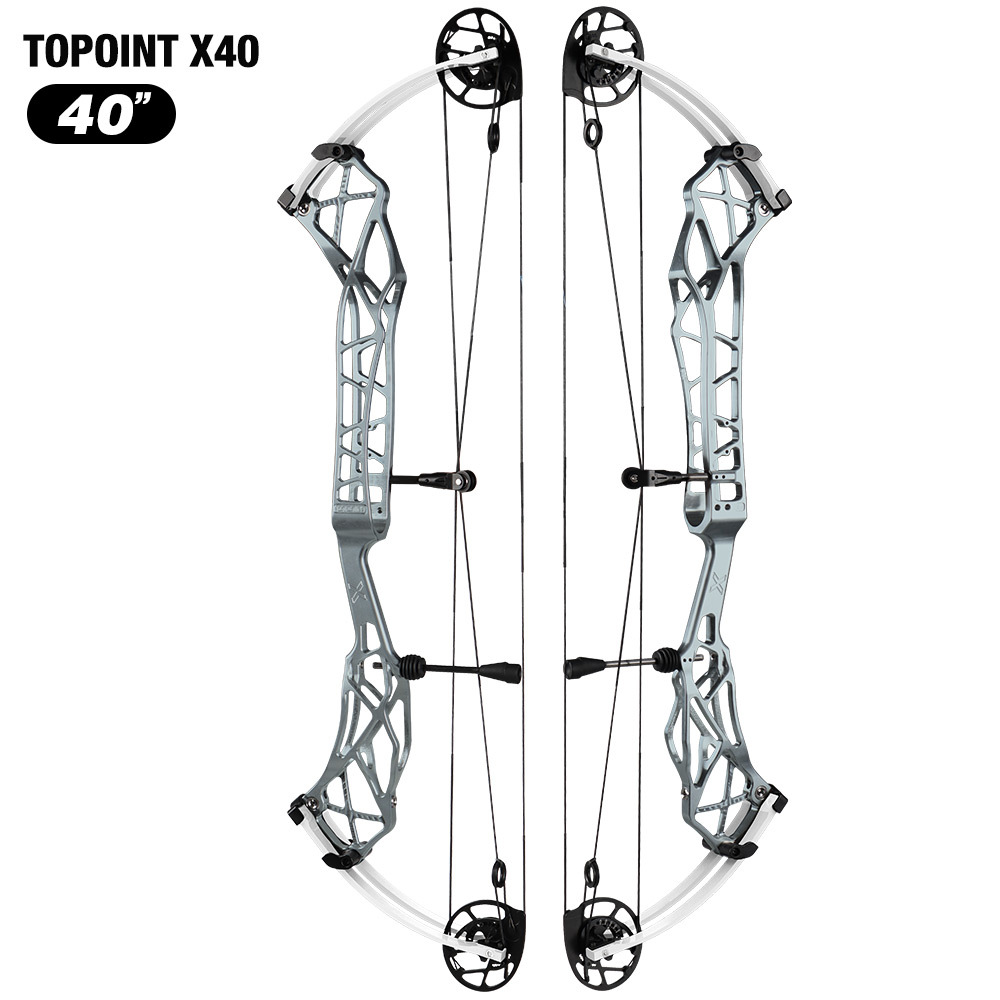

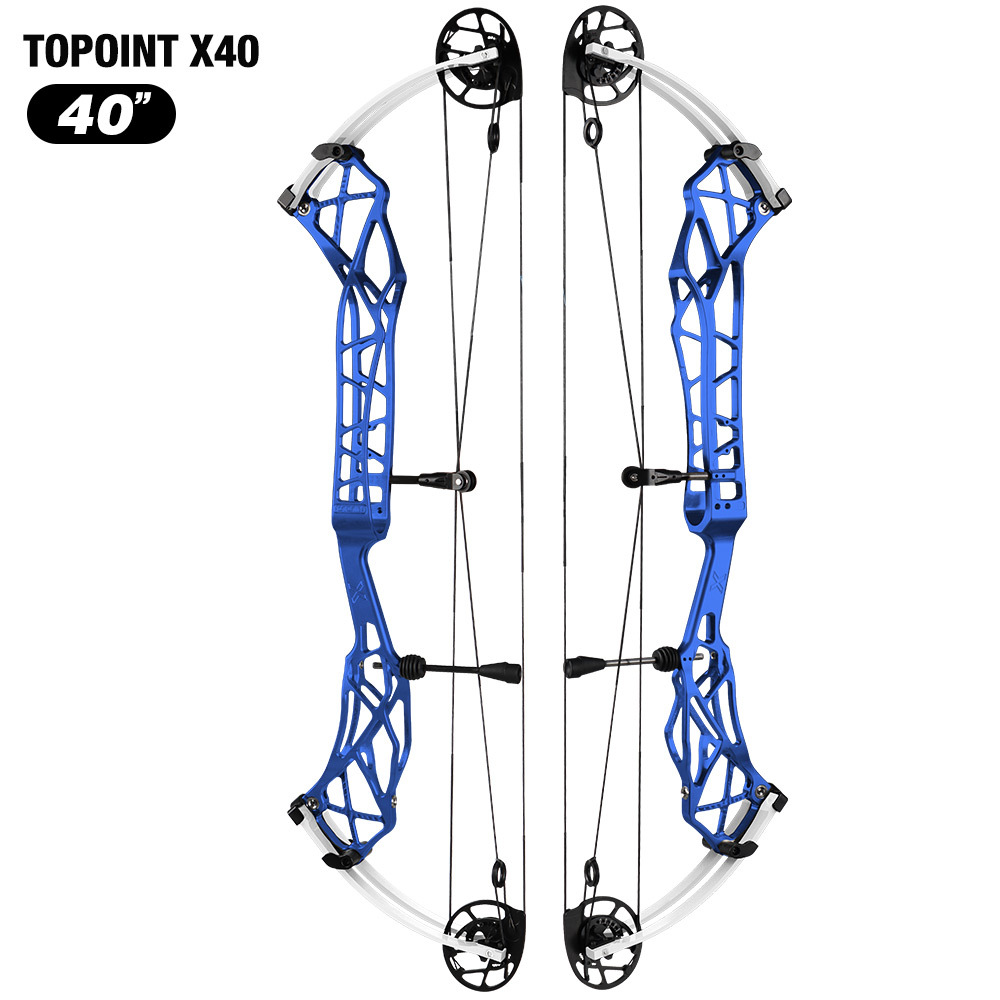

Right Hand /Left Hand Available




40 Axis Closed Bow Window
Aluminum CNC Machining
Draw Length: 25-28"      27-31"
        The Topoint X40 bow is equiped with a dual 'auto syncro' cam with two cam system options. The draw length adjustability range for TopointX40 CAMl is from 27-31" for Topoint X40 CAM2, the adjustability rangeisform 25-28" To adjust draw length, loosen the fastening screw, there after, remove the draw length screw fromthe module and rotate the drawmodule to the desired draw length hole. Reinsert the draw length screw. snug the screw into position and retighten the fastening screw clock wise   (do not over tighten). Repeat this processon the second cam making sure both modules are set in the same draw length position.









50lbs   60lbs
      You have the choice of draw weight from 50 bs or 60lbs. Drawweight adjustments can be made by turning the limb bolt counter. clockwise using an Allen key it is important toadjust both limb boltsin equal amounts. Do notexceed the recommended turns out from themaximumdraw weight. turns starting from closed Maximumopening: 6 complete position.

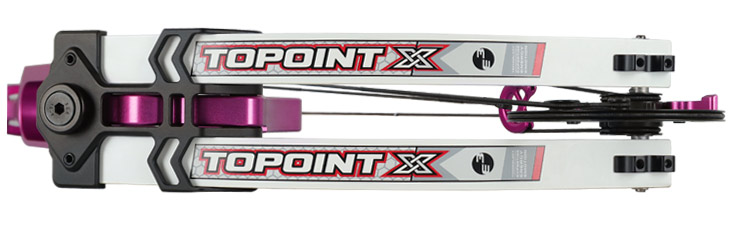

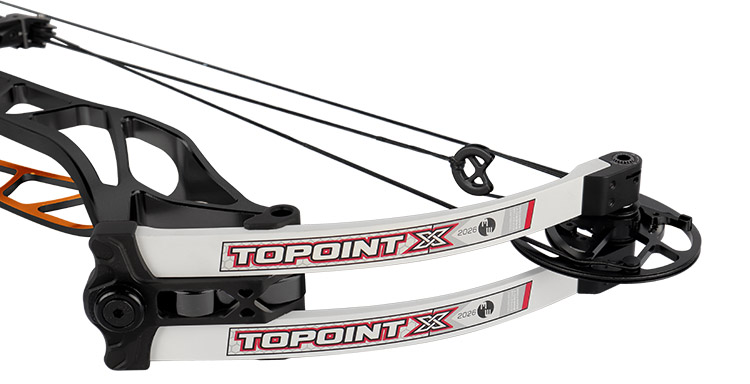

GORDON COMPOSITES 23mm BOW LIMBS
from USA which widely used by many
famous archery brands.
BCY-X99 BOW STRING & CABLES Imported from
the best string supplies of BCY Company in USA.
One of the best string supplies in the world.
