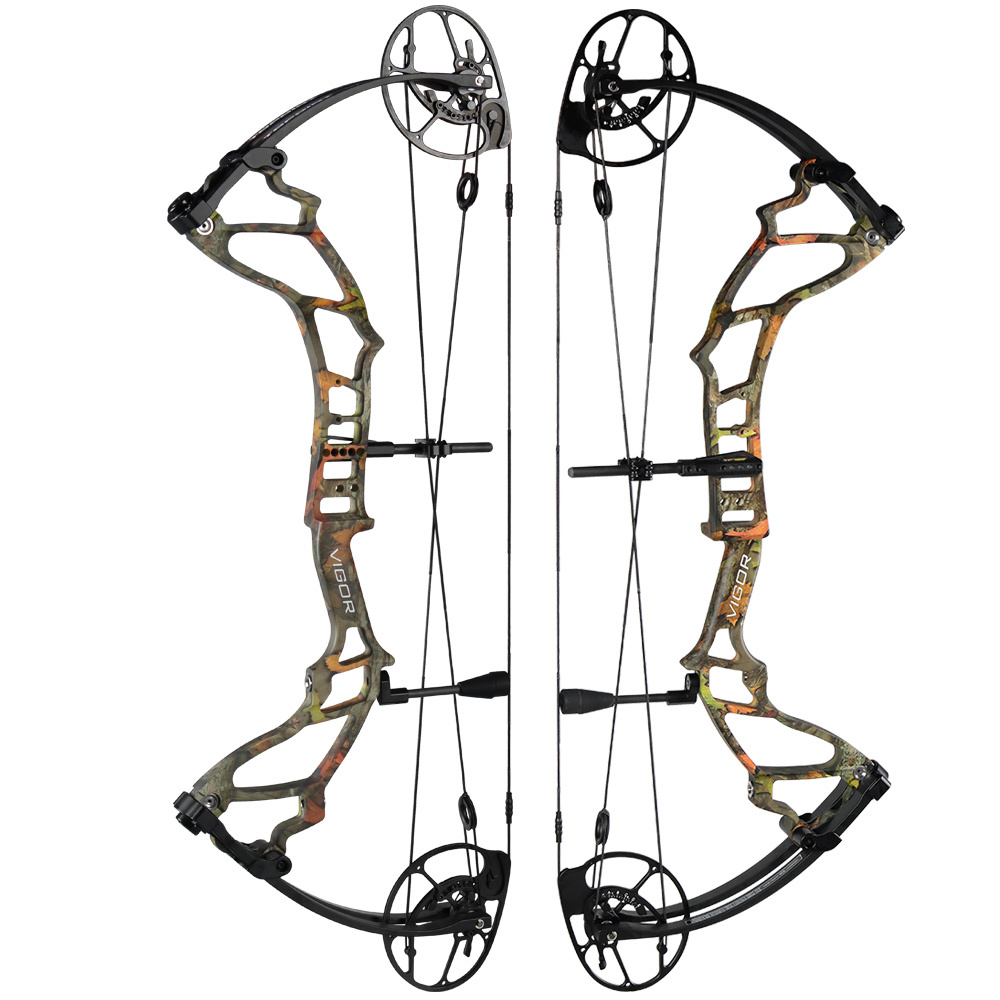

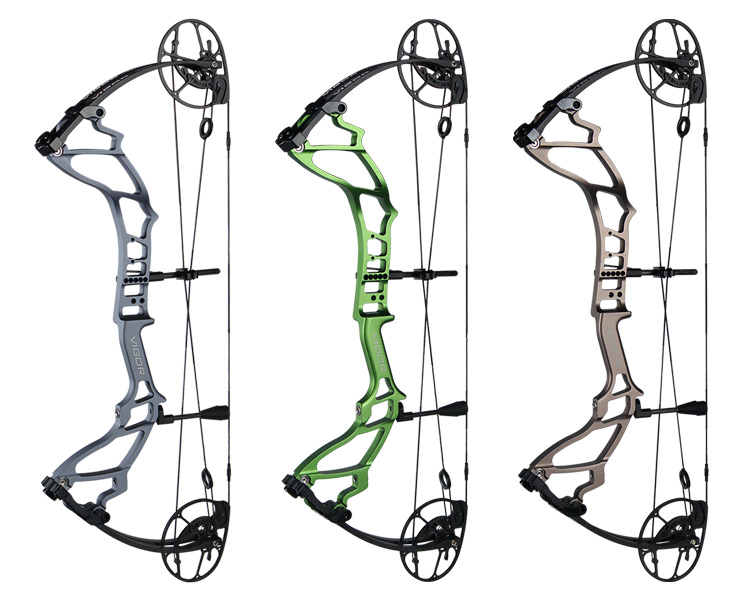

Smoke // Army Green // Bronze |

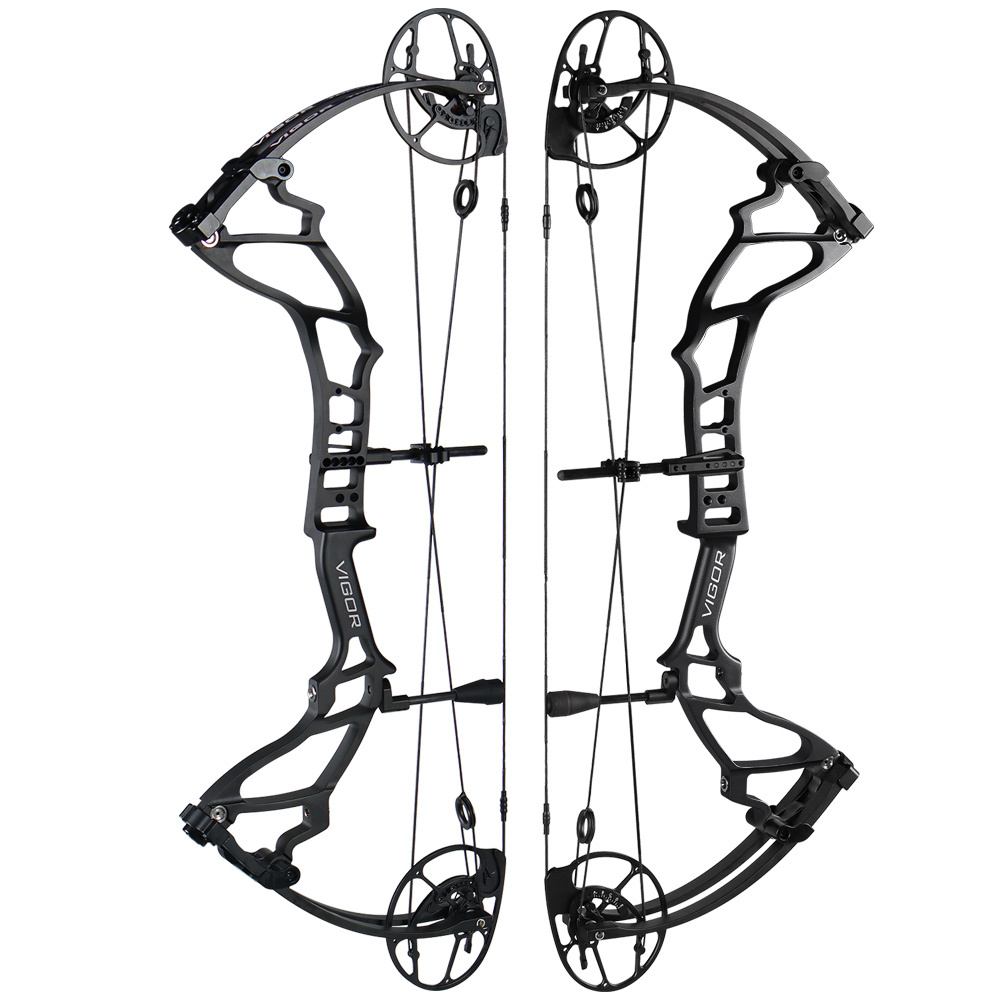

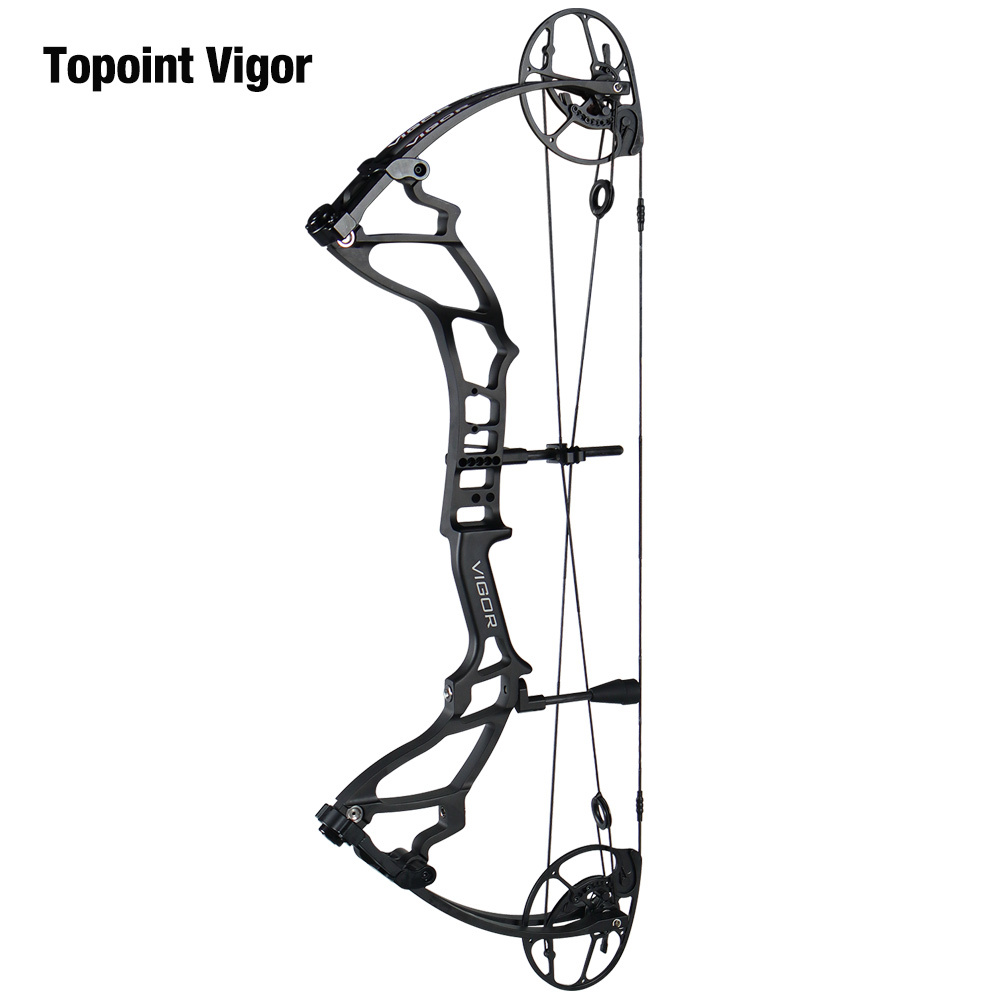

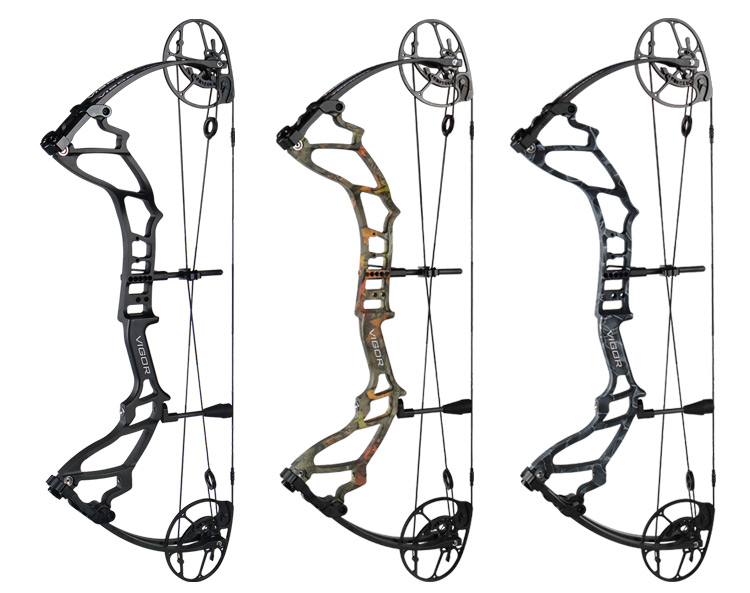

Black // Camo // Ghost |

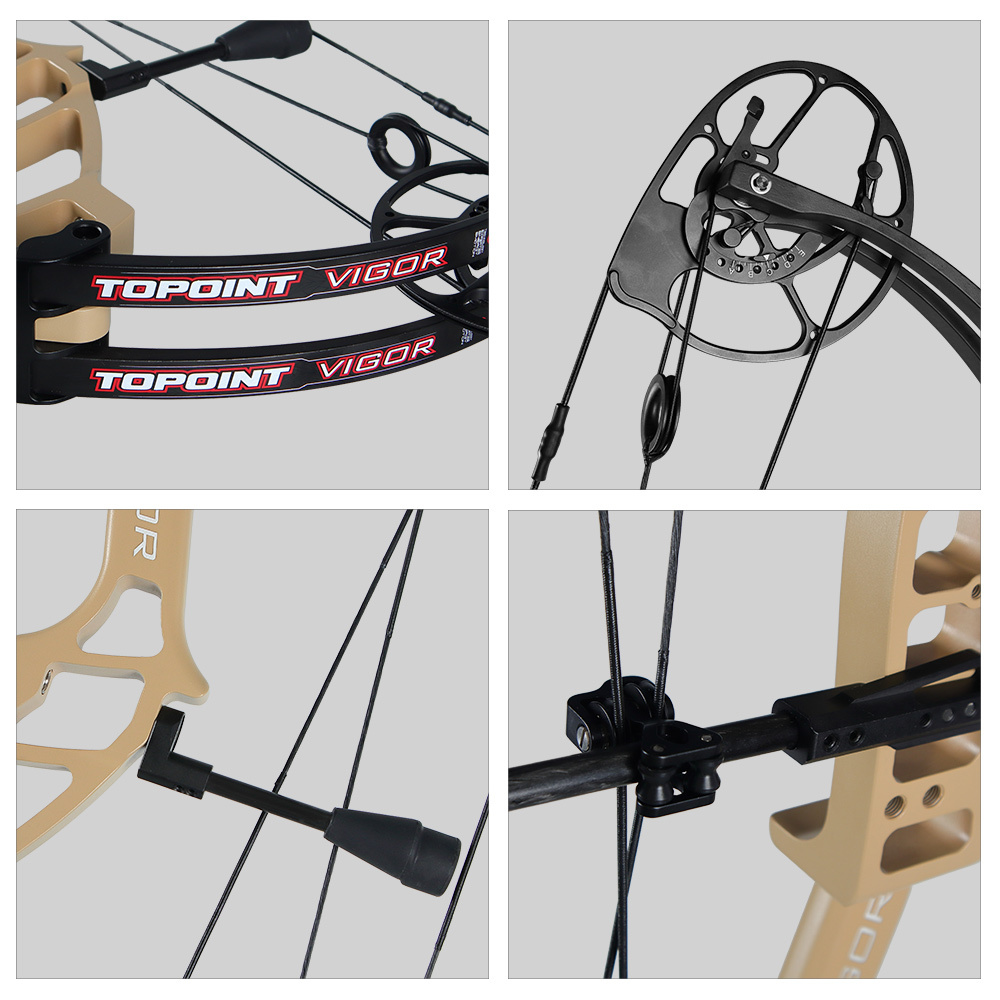

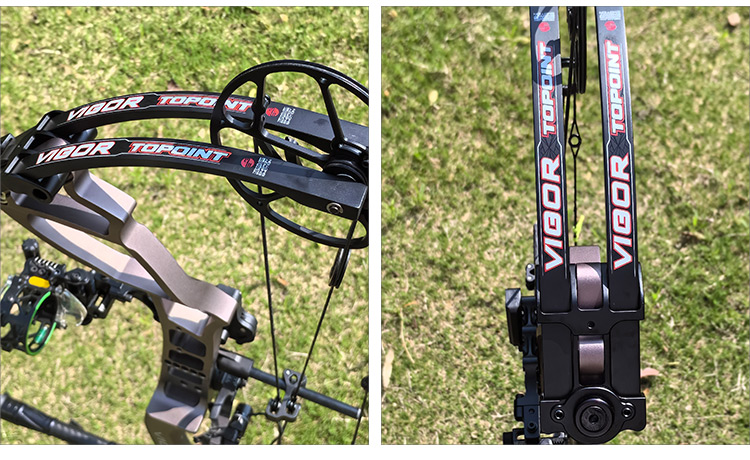

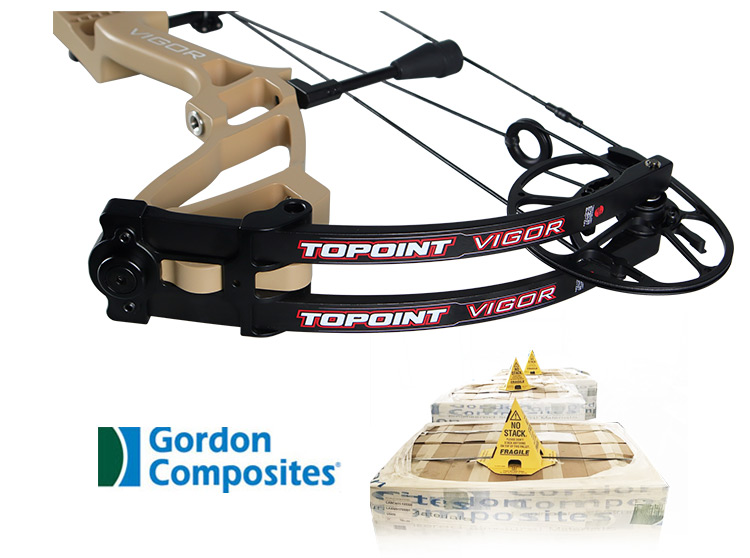

VIGOR'S LIMB WIDTH 23MM
The 23mm widthlimbs make the bow more stronger,meanwhile these limbs can help the bow perform better in daily use.
|

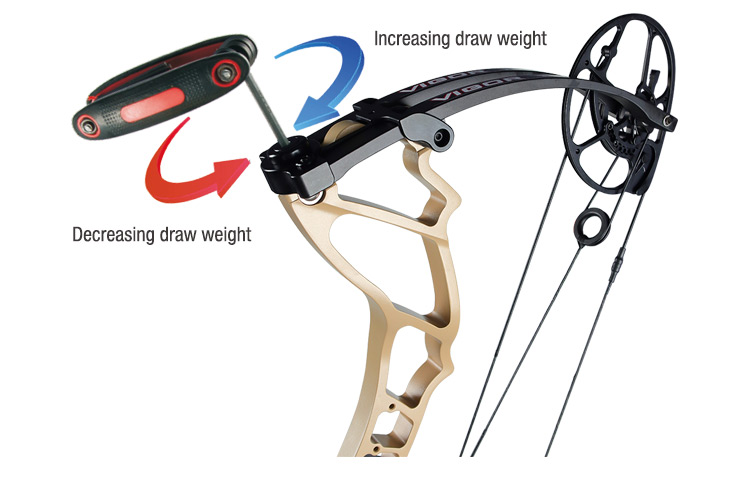

DRAW WEIGHT ADJUSTABILITY
You have the choice of draw weight from 40-70lbs. Draw weight adjustments can be made by turning the limb bolt counter --clockiseusing an Allen .lt is important to adjust both limb boltsin equalamounts.
Do not exceed the recommended turns out from the maximum drawweight. Maximum opening:11complete turnsstarting from closedposition |

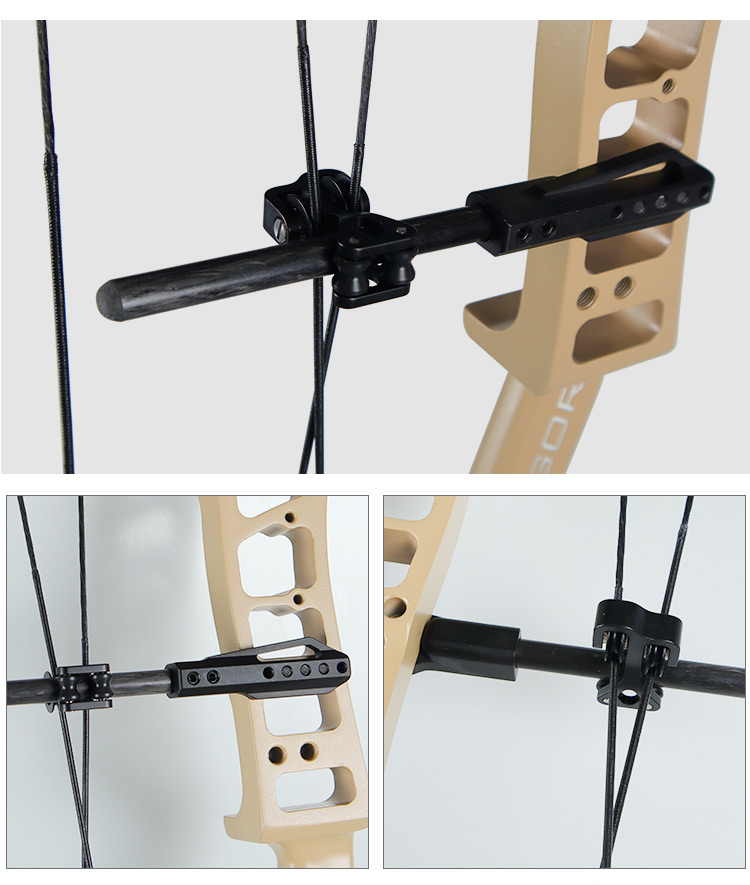

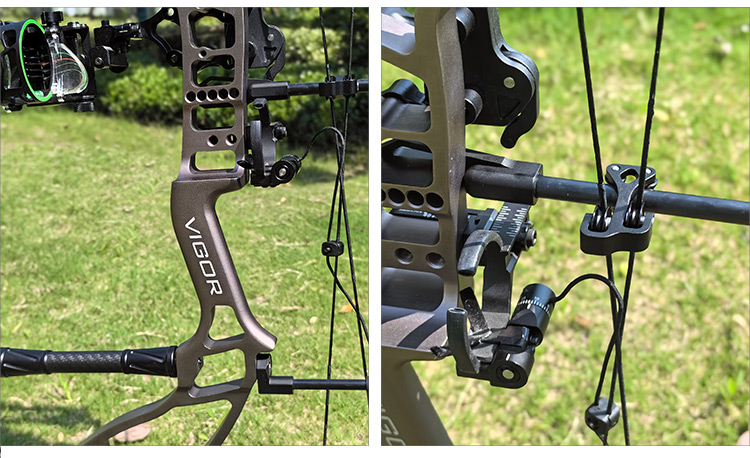

ROLLER CABLE SLIDE
Higher speed with aluminum material and stainless axles Lower abrasion
|

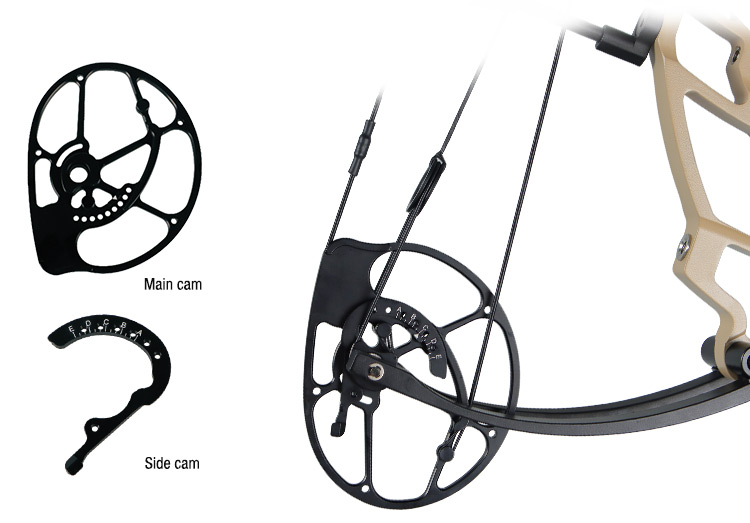

DUAL AXLES WITH TWO HIGH SPEED BOW CAMS

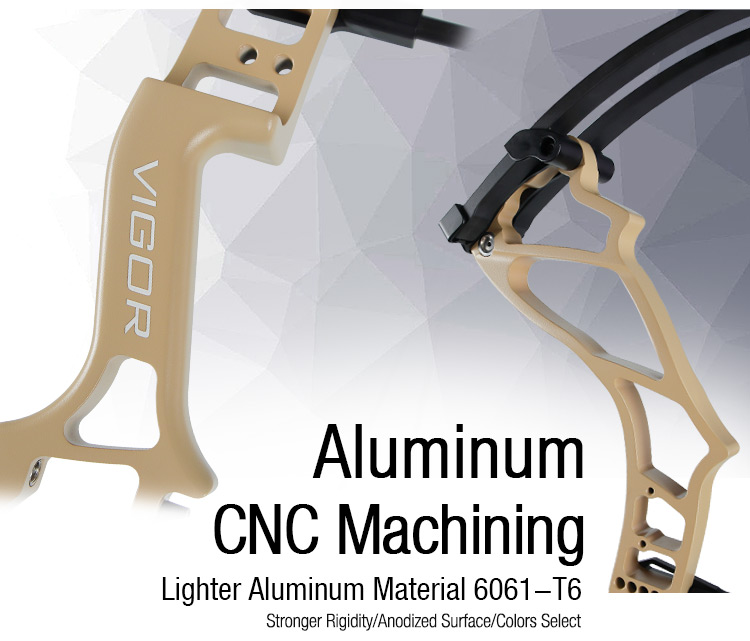

CNC MACHING ALUMINUM Topoint Vigor 's Cam system is made up of main cam and sidecamby shown below ,draw length can be adjusted without bow press.
The triangle mark on main cam can be aligned with the line on sidecam from A to E, total13 scales. Topoint Vigor's draw length see below on Table : |
Label | A | A1 | A2 | B | B1 | B2 | C | C1 | C2 | D | D1 | D2 | E |
Draw length | 26" | 26.5" | 27" | 27.5" | 27.5" | 27.75" | 28" | 28.5" | 28.75" | 29" | 29.25" | 29.5" | 30" |

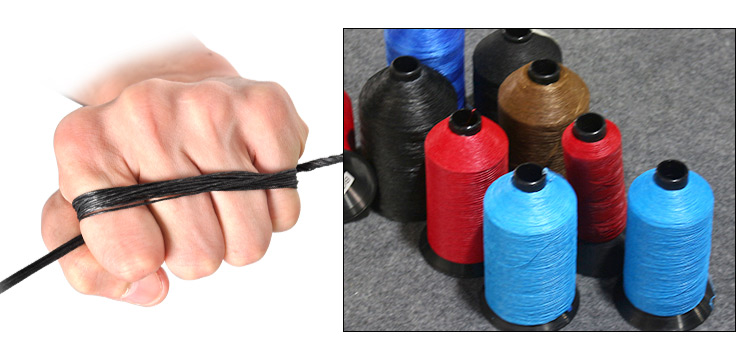

BCY BOW STRING & CABLES lmported from the best stringsupplies of BCY Company in USA. One ofthe best string supplies in the world. |
