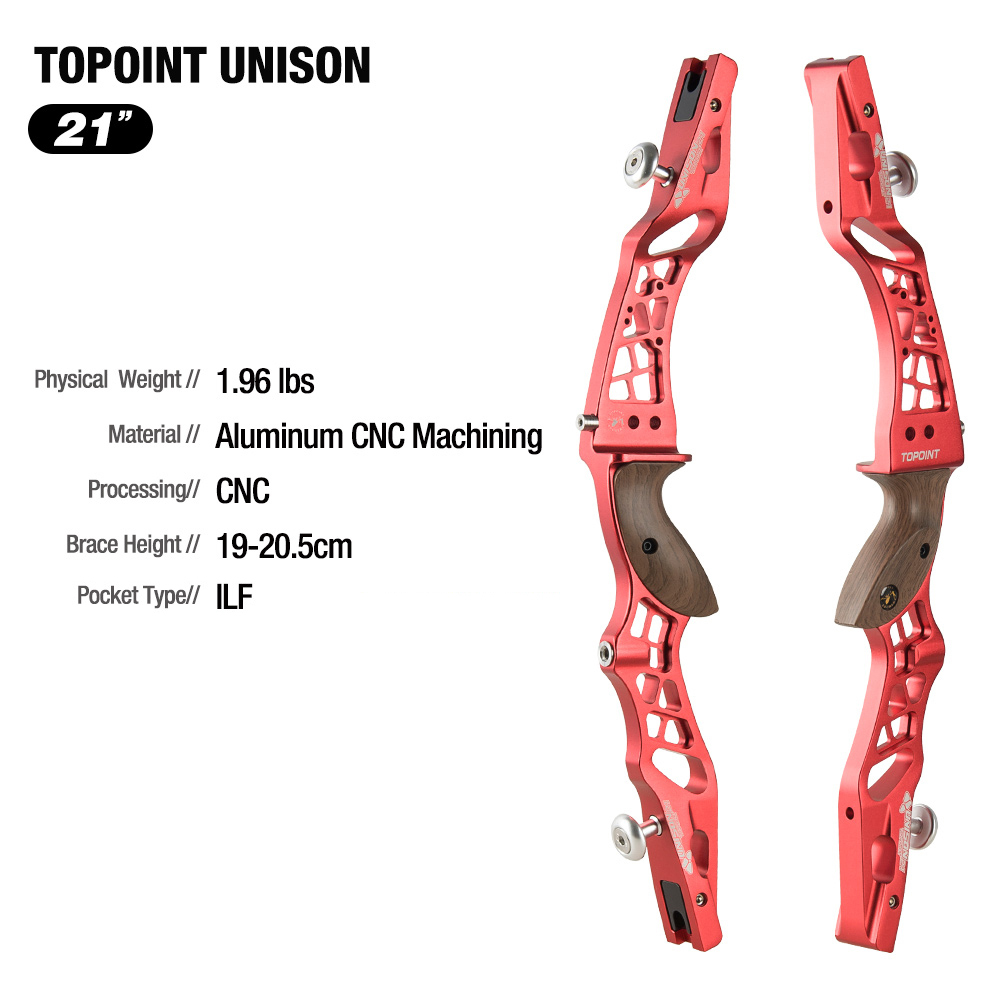

Specification
Net weight: 2.9Lbs

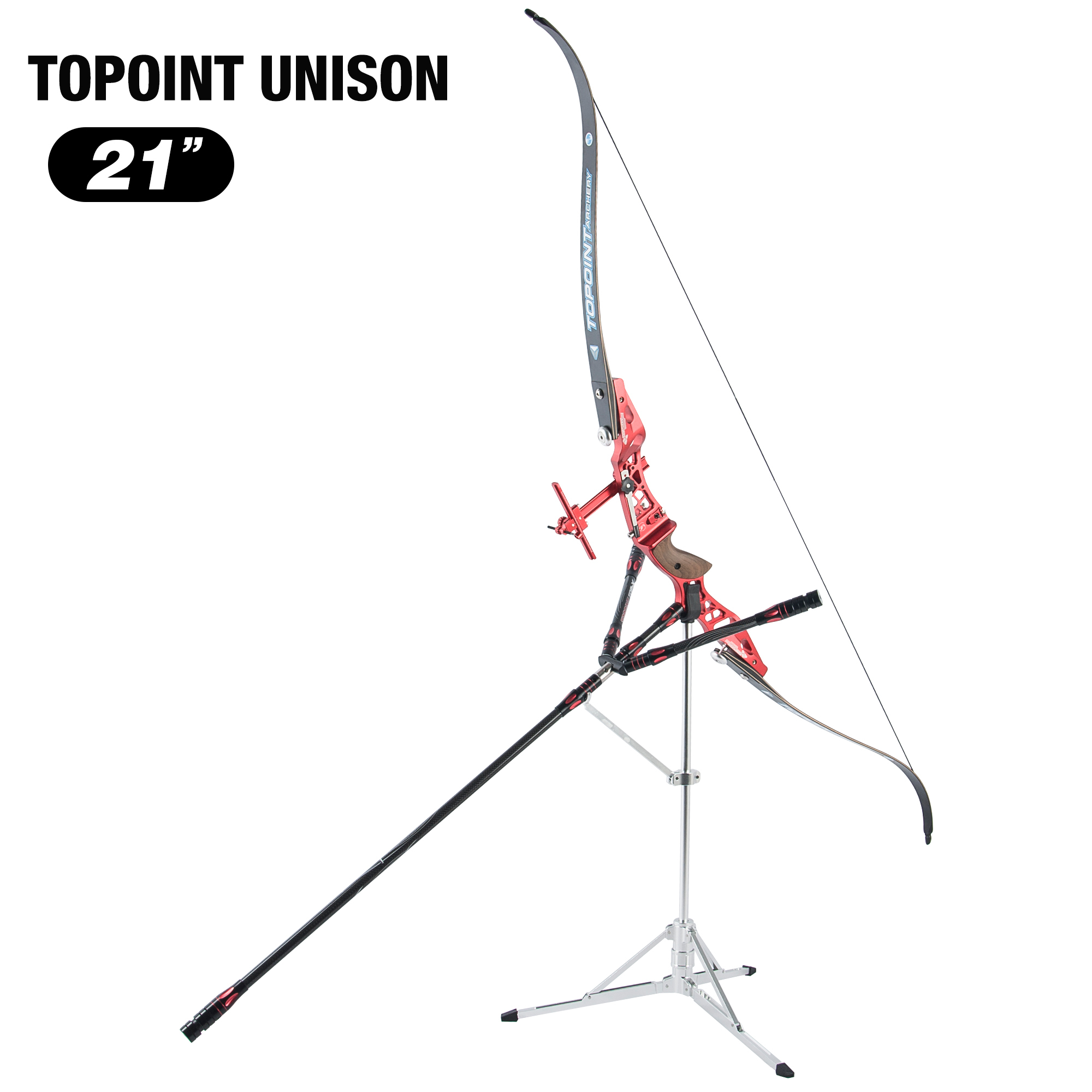

Riser length: 21"
The handle material: aluminum alloy 6061-T6. Plastic wooden Color Grip

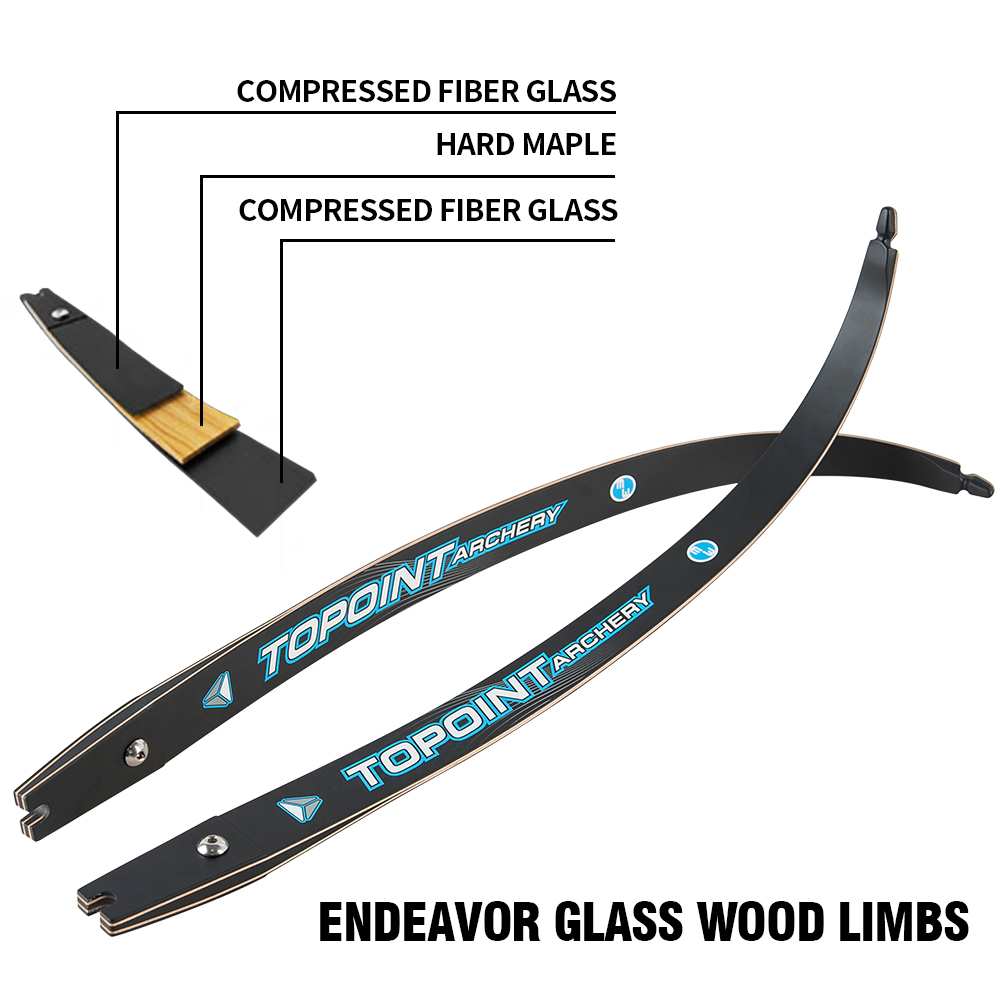

Cost-effective limbs made of glass laminates surrounding a hard maple core.

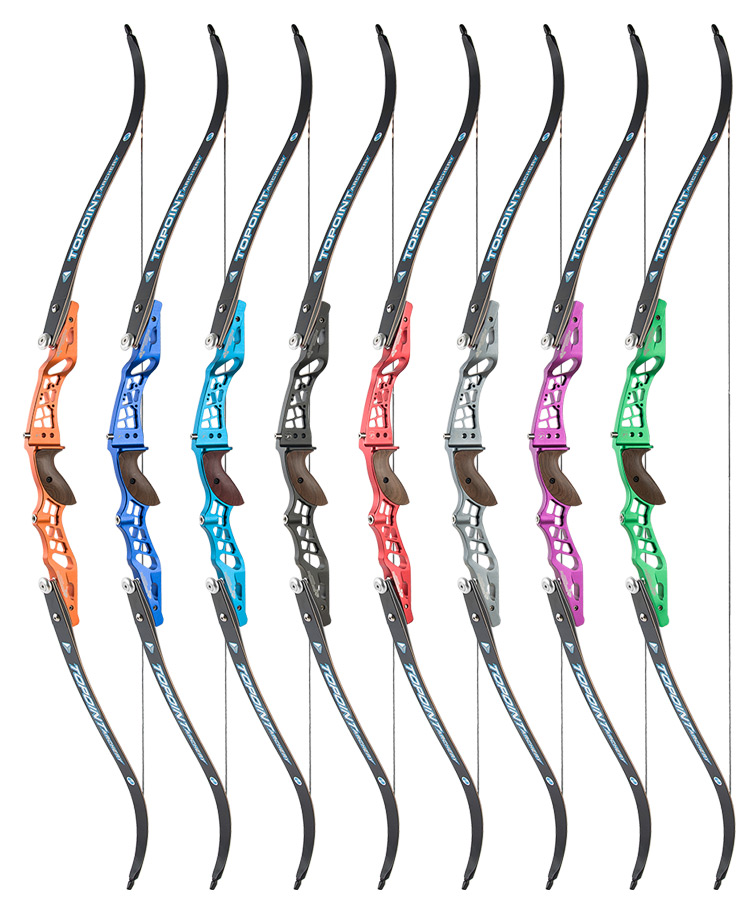

Color: Black/Purple/Bule/Red/Orange/Smoke/Green/Turqoise
Features: CNC machining, ILF device
Introduction：
Brace height
Brace height is the horizontal distance between the grip and the bowstring.
Changingthe brace height does not affect the draw weight. But will significantly affect bow perfor-mance.
A higher brace height will decrease velocity while a lower brace height will increasevelocity.
Tiller and draw weight adjustability
To adjust the tller and bow weight, firstly, you need to loosen the weight tiller locking bolt with the Allen key. Use the Allen key to turn the weight tiller adjustment bolt clockwise to increase bow weight and counter clockwise to decrease bow weight. When the correct poundage is set, tighten the locking bolt located at back of theriser. It is best to adjust the tiller and weight while the bow is unstrung. When adjusting the tller and bowweight, do not exceed the recommended turns out from the maximum position.Maximum opening: 4 complete turns starting from closed position.
Limb / riser alignment
Before adjusting the alignment of the riser, first check the center string position towards the riser. You can adjust the centershot without unstringing your bow.
1. Unscrew both locking screws
2. To adjust limb position to the left, loosen the inner left
side bolt and tighten the right sided one till the limb is centered.
3. Once the limb is centered, retighten the left side bolt
4. Fasten both locking screws

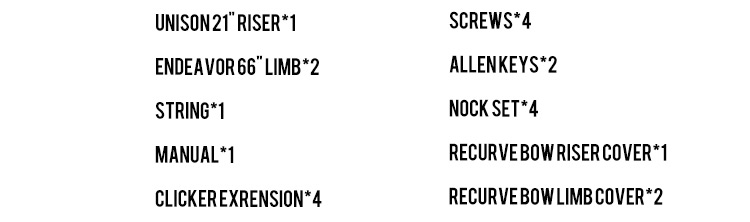

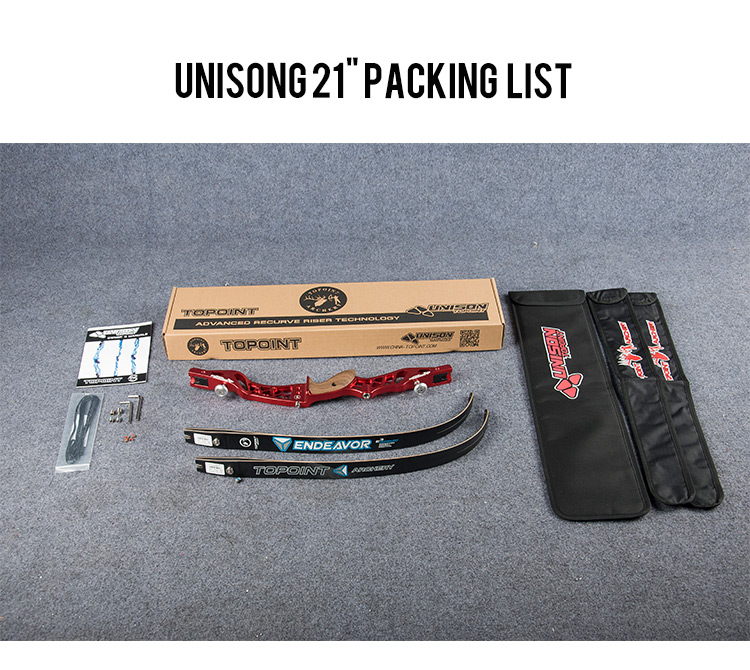

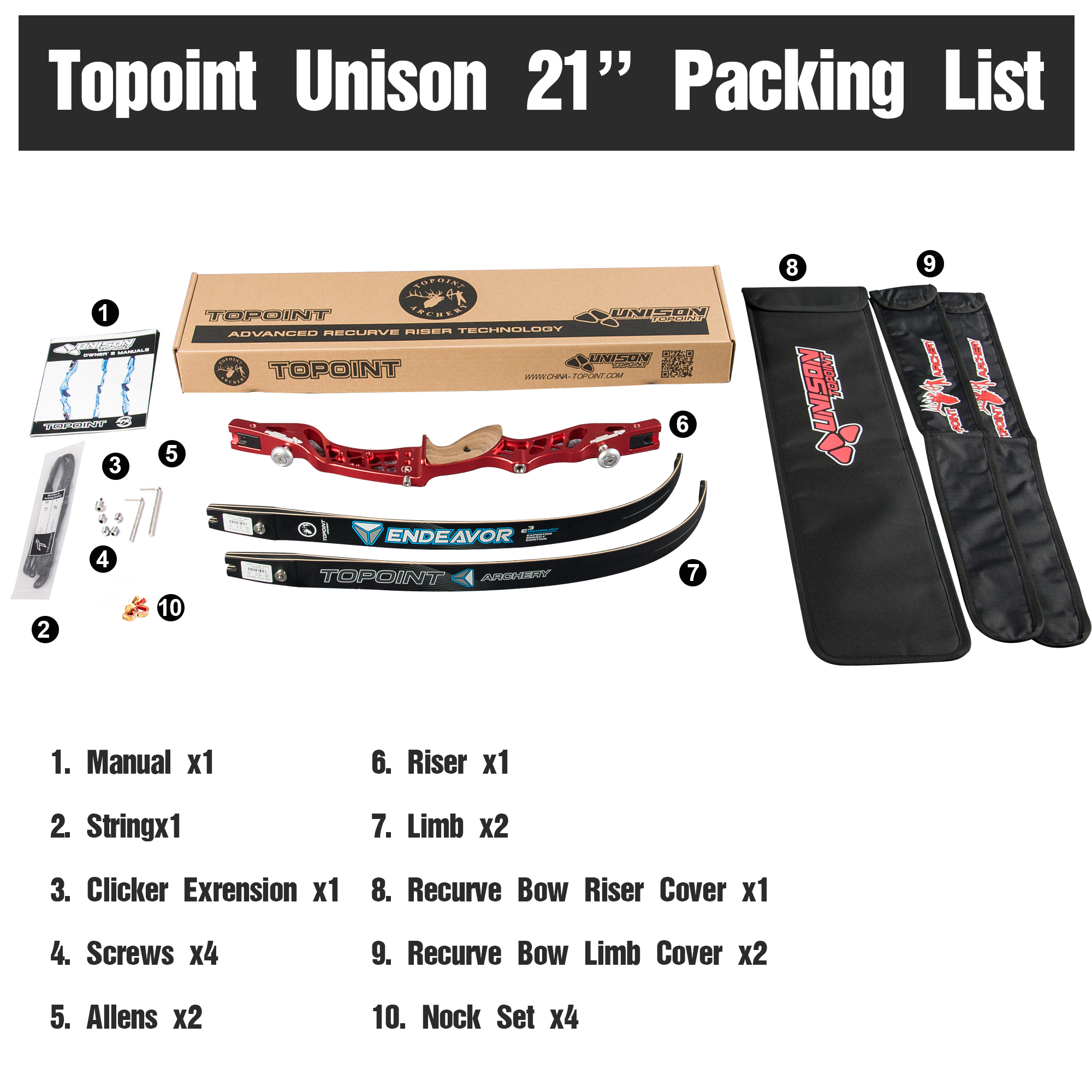

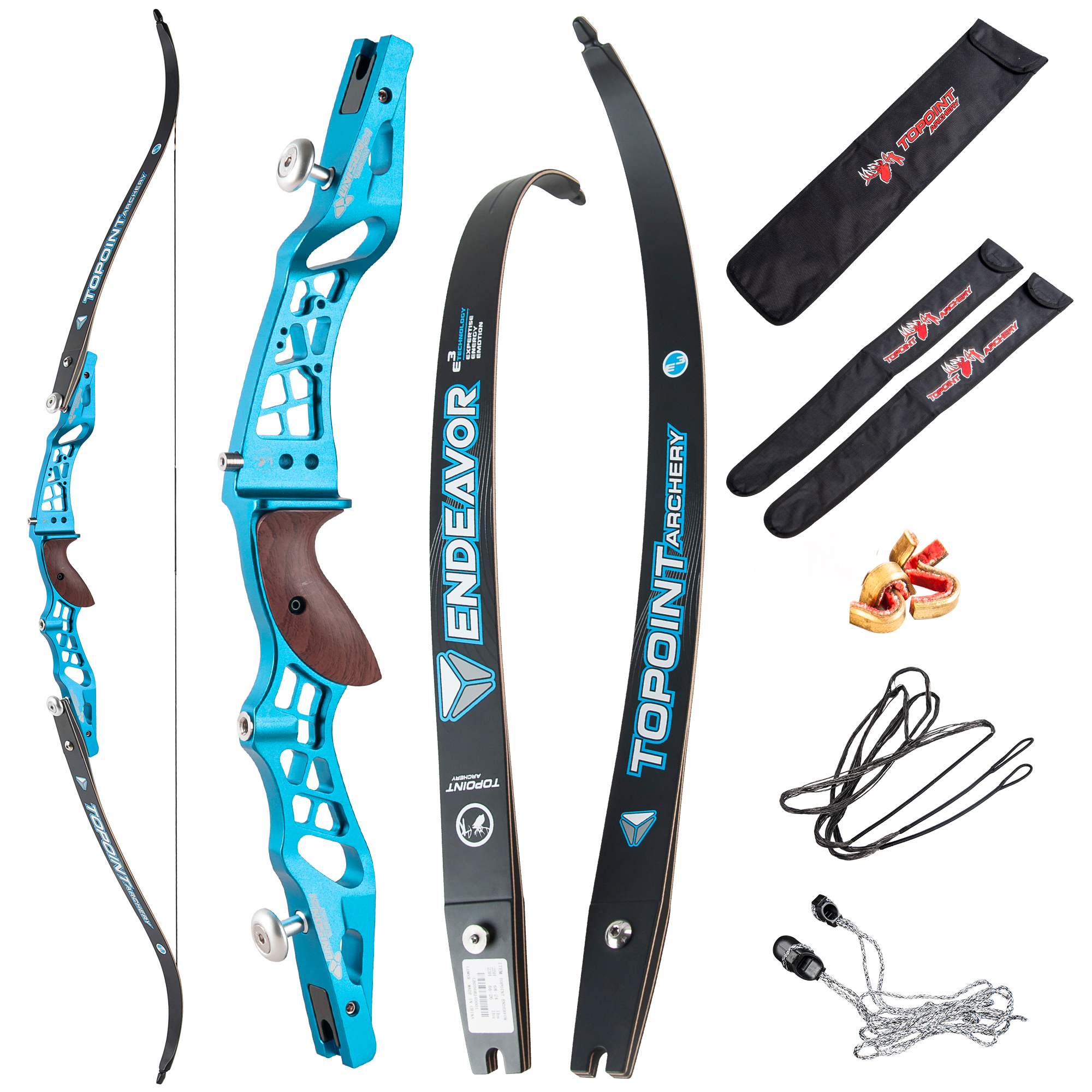

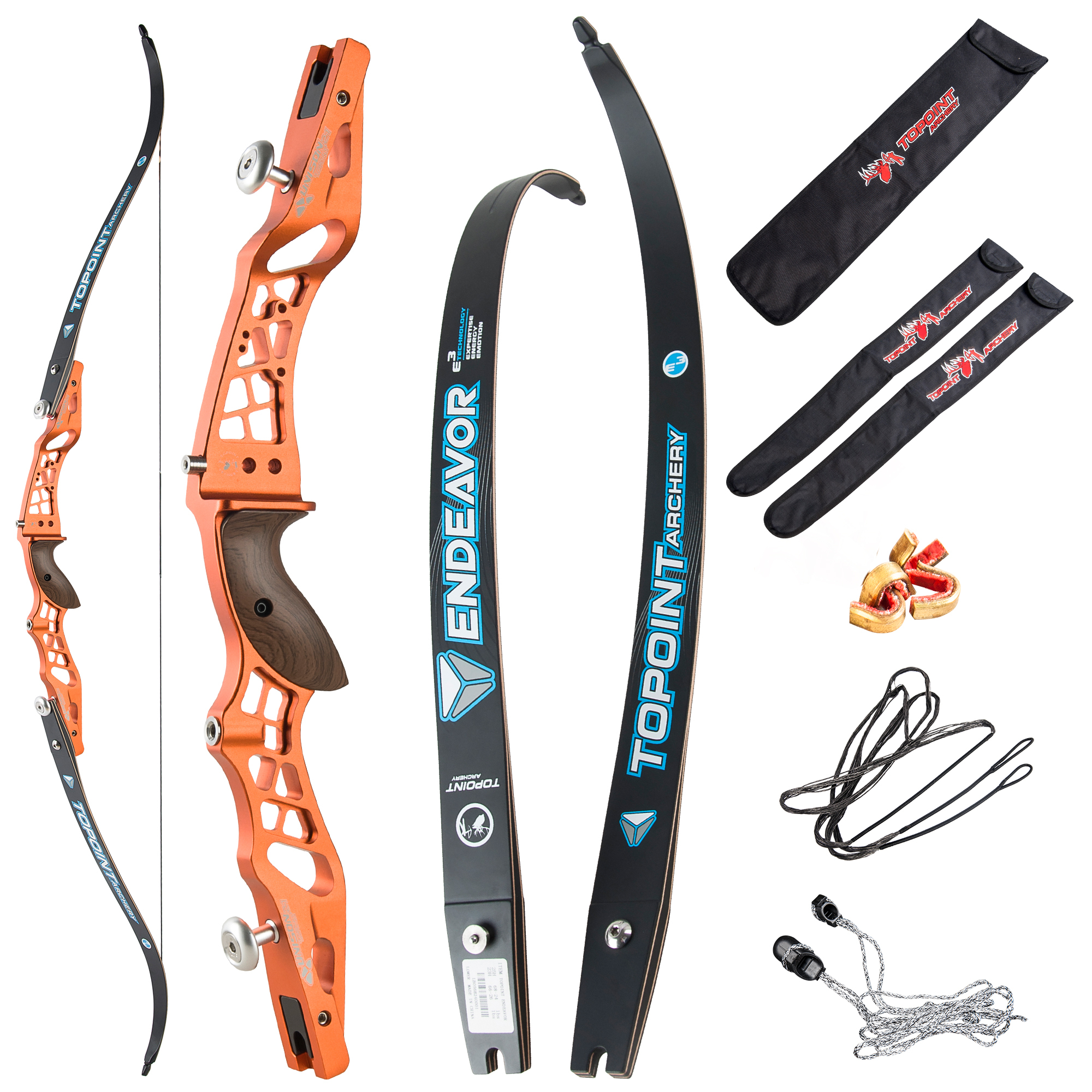

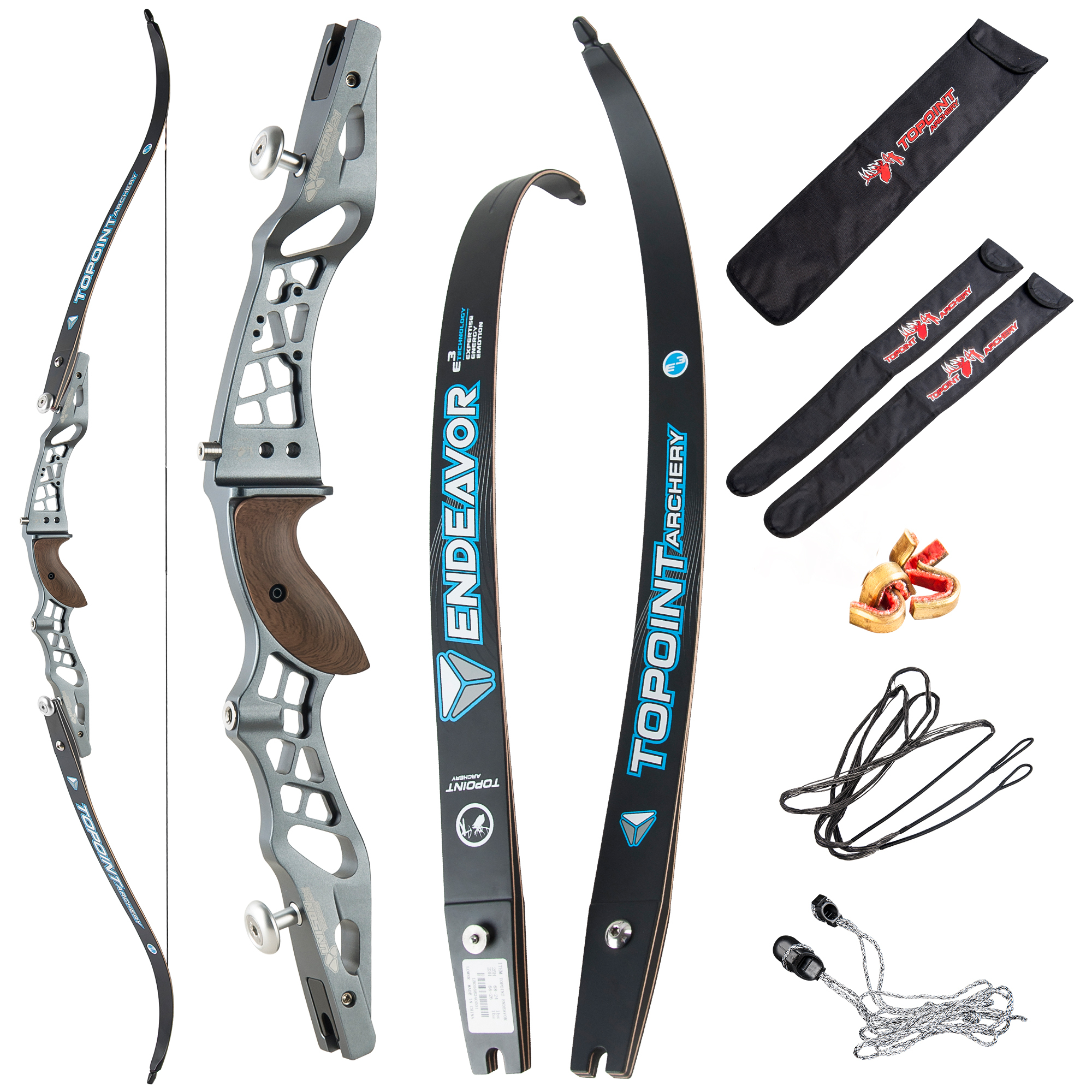

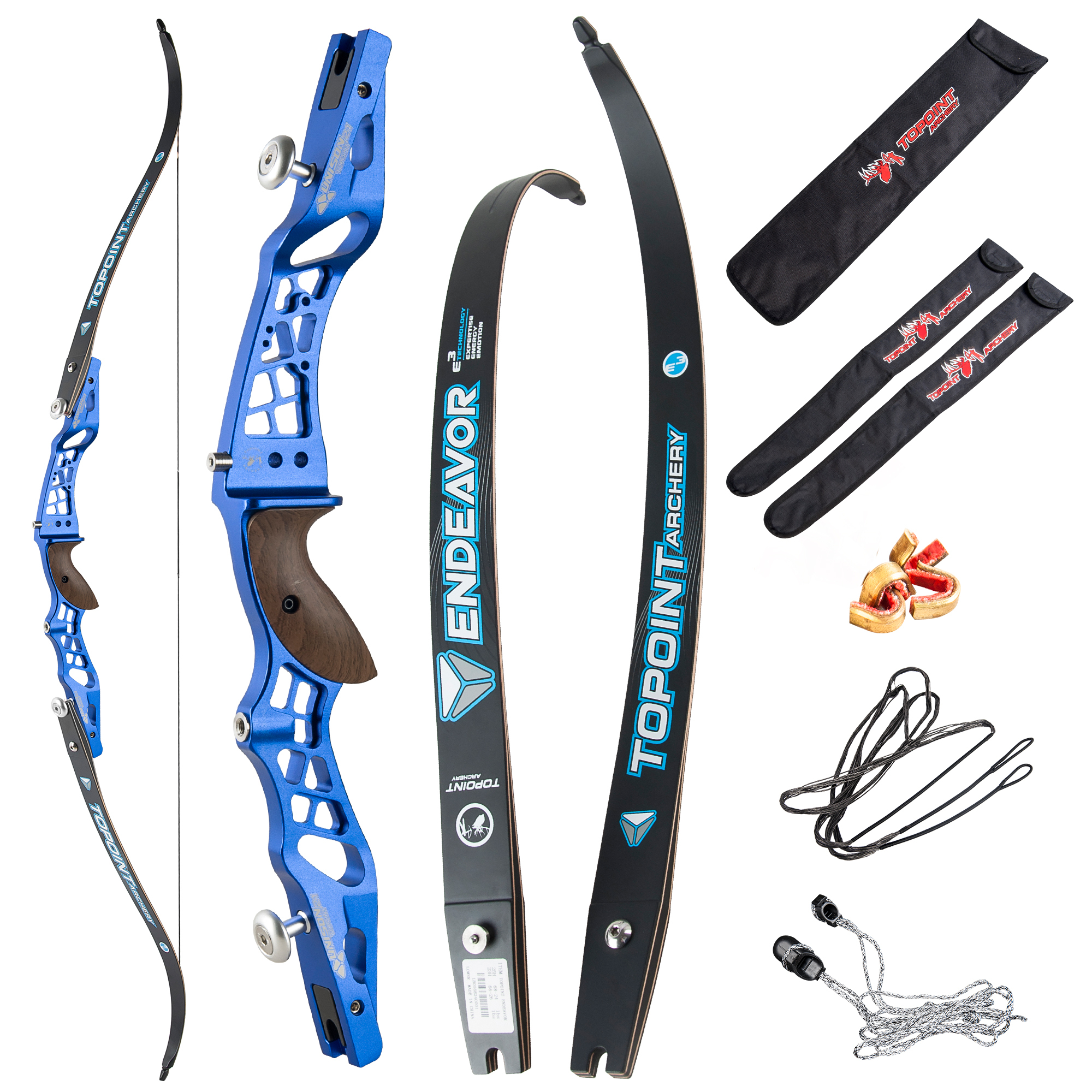

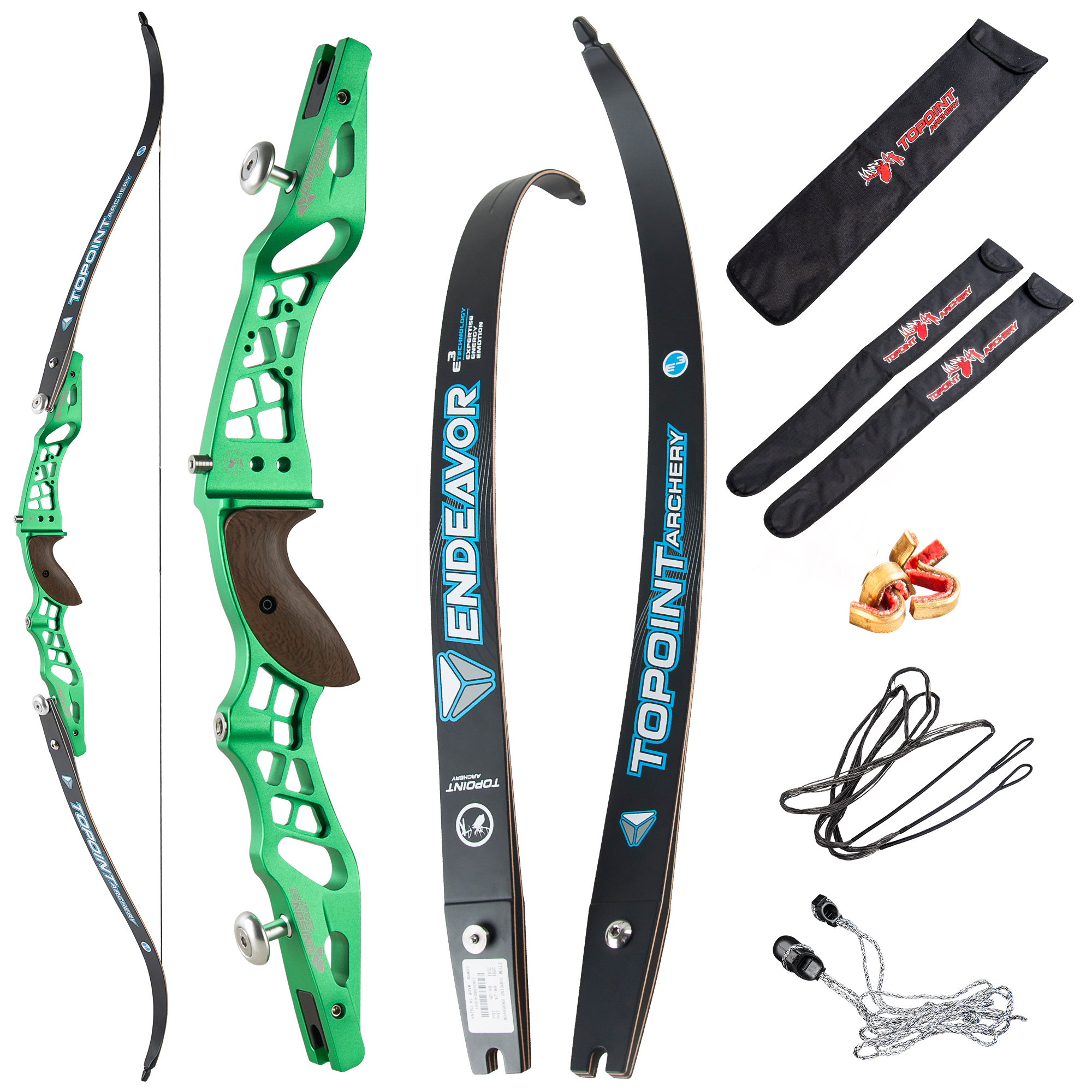

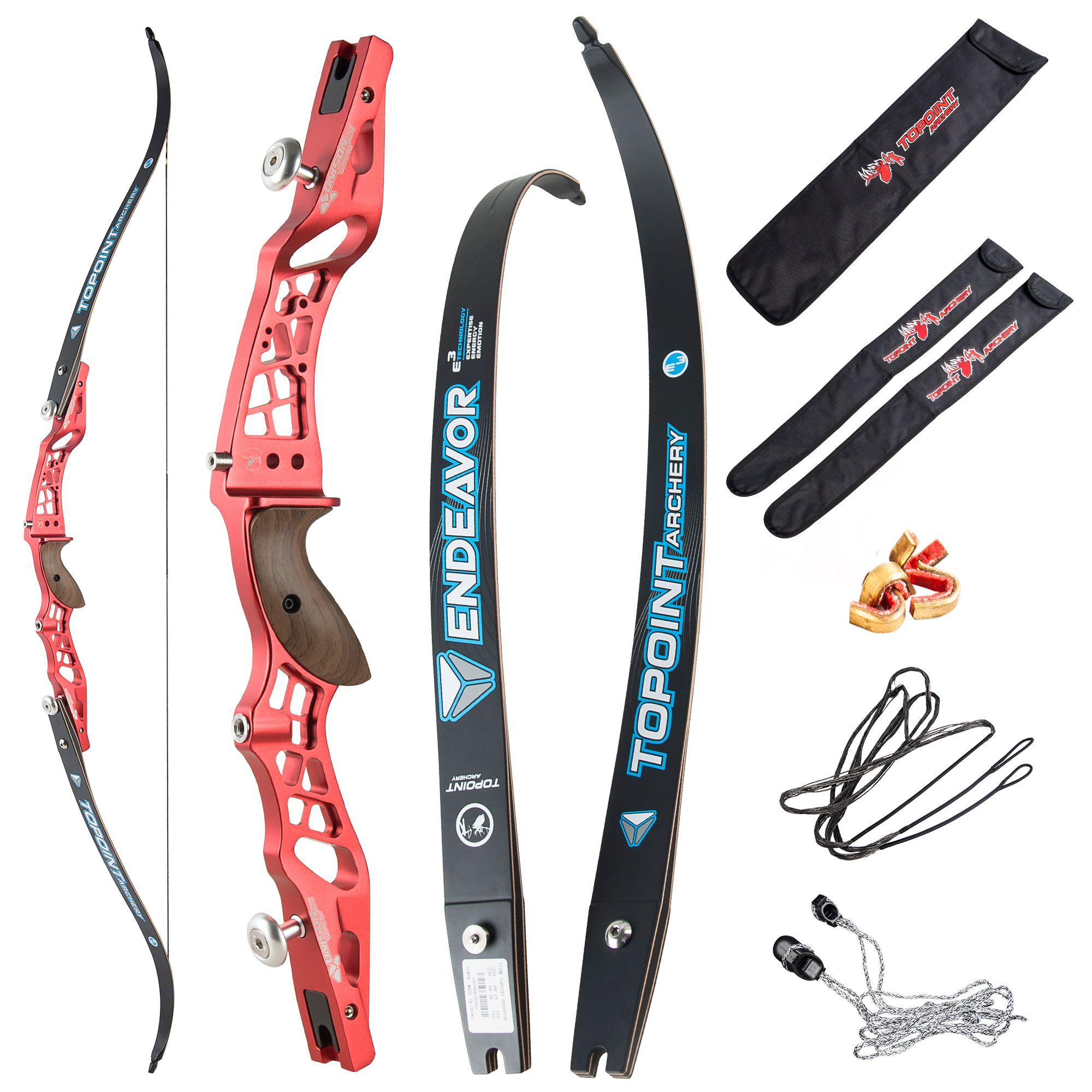

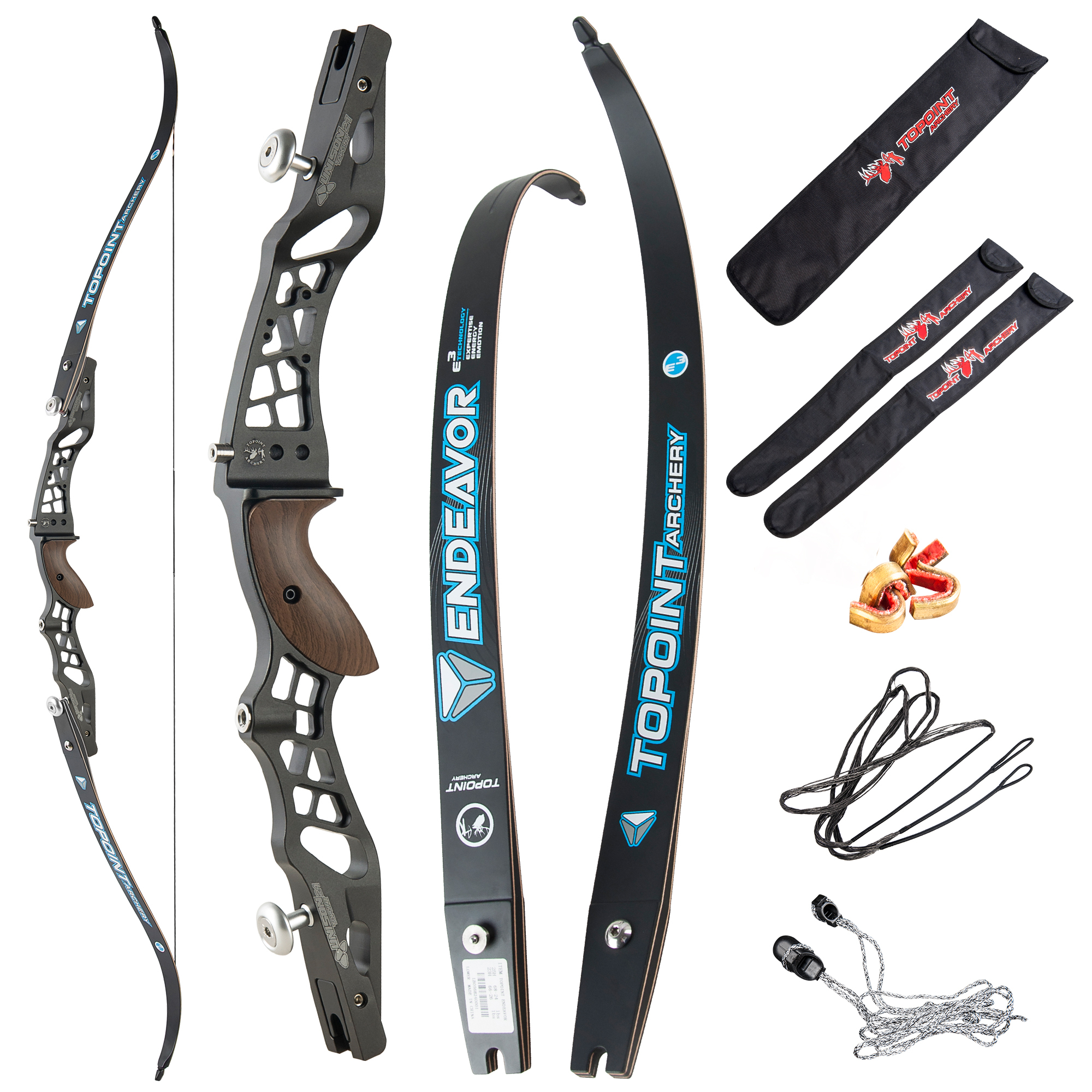

Package Including:
Unison 21" riser*1
Endeavor 66" Limb*2
String*1
Manual*1
Clicker exrension*4
Screws*4
Allen keys*2
Nock set*4

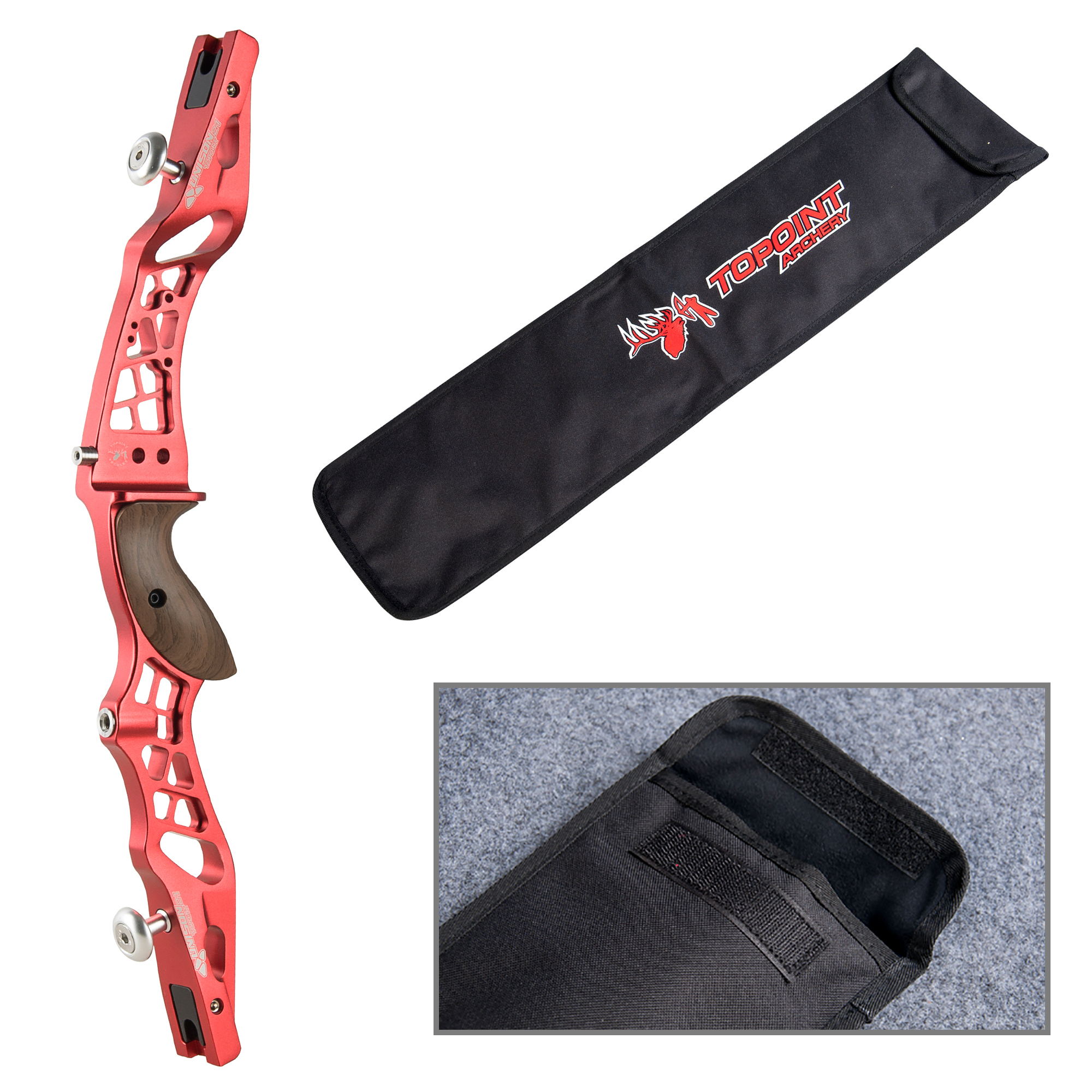

Recurve bow riser cover*1
Recurve bow limb cover*2
| FINISH >> Anodized / Camo |

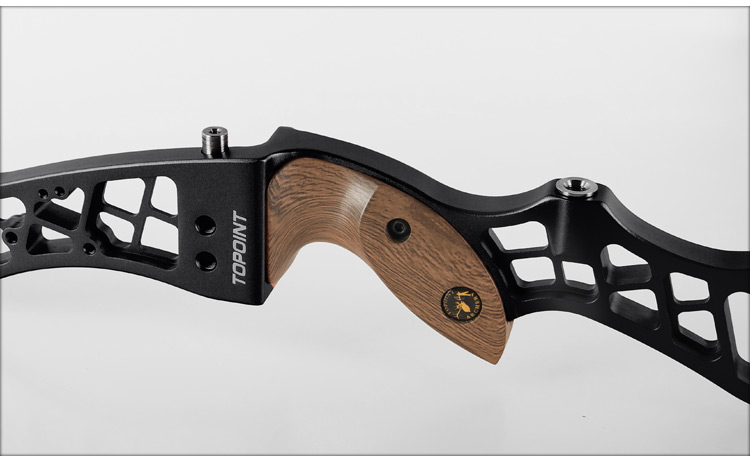

| Special unique designed plastic grip |
| Red/ Turquoise/ Blue/ Purple/ Orange/ Green/ Smoke/ Black |
| Bow length: Riser and limb fitting |

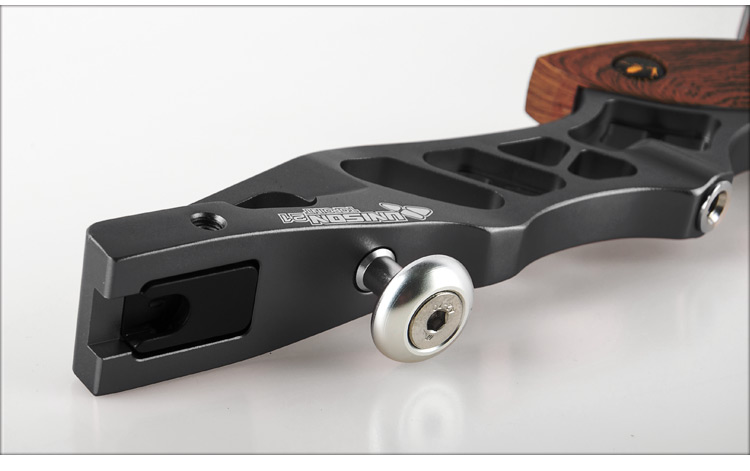

| In order to properly assemble the limbs with the riser, you will need to push the lLFdetent part from the limb into the appropriately sized slot on the riser until you hear a click. |
| TOPOINT Length ofriser |
Long Limbs |
Medium Limbs |
Short Limbs |
| 25 inch |
70" |
68" |
66" |
| 23 inch |
68" |
66" |
64" |
| Brace height is the horizontal distance between the grip and the bowstring. Changing the brace height does not affect the draw weight but can significantly affect bow performance. A higher brace height will decrease velocity while a lower brace height will increase velocity. |
| TOPOINT Length ofriser |
Long Limbs |
Medium Limbs |
Short Limbs |
| 25 inch |
22~23.5cm |
21~22.5cm |
20.5~22cm |
| 23 inch |
21~22.5cm |
20~21.5cm |
19.5~21cm |
| Tiller and draw weight adjustability |
To adjust the tiller and bow weight, you first need to loosen the weight/tiller locking bolt with the Allen key (photo 1). Use the Allen key to turn the weight/tiller adjustment boltclockwise to increase bow weight and counter clockwise to decrease bow weight(photo 2).
When the correct poundage is set, tighten the locking bolt located at back of theriser (photol). It is best to adjust tiller and weight while the bow is unstrung. |
| Tiller and draw weight adjustability |
| When adjusting the tillerand bow weight, do not exceed the recommended turns outfrom the maximum position (photo 3) .Maximum opening: 4 complete turns starting from closed position (photo 4). |
| Before adjusting the alignment of the riser, first check the center string position towards the riser. You can adjust the center shot without unstringing your bow.1. Unscrew both locking screws (photo 5)2. To adjust limb position to the left, loosen the inner left side bolt (photo 6) and tightenthe right sided one till the limb is centered.3. Once the limb is centered, retighten the left side bolt (photo 6)4. Fasten both locking screws (photo 5) |
