Topoint Slither package

Price:
USD
$399.98
  • Color/Package:
    Smoke
    Bronze
    Black
    Tactical
    Ghost
    Arm Green
  • Draw Weight:
    30lbs
    35lbs
    40lbs
    45lbs
    50lbs
  • Riser Length:
    17"
    19"
    21"
Quantity:
-
+
(180 available)
Please select the information you wantX
  • Description
  • Reviews
roduct name Hunting Recurves -Topoint Slither
Brand TOPOINT
Material   Aluminum CNC Machining
Specification
PHYSICAL WEIGHT >> 2.18Lbs
PROCESSING >> CNC
MATERIAL >> Aluminum CNC Machining
POCKETTYPE >> ILF
BRACE HEIGHT >> 19-21CM
LENGTH OF RESER >> 17“
LENGTH >> 17”(FITS FOR A 58' 60"  OR 62” BOW)
FINISH >> Anodized /Camo
TYPE >> RH
GRIP >> Wood


PHYSICAL WEIGHT >> 2.42Lbs
PROCESSING >> CNC
MATERIAL >> Aluminum CNC Machining
POCKETTYPE >> ILF
BRACE HEIGHT >> 20-22CM
LENGTH OF RESER >> 19“
LENGTH >> 19"(FITS FOR A 60" 62" OR 64" BOW)
FINISH >> Anodized /Camo
TYPE >> RH
GRIP >> Wood
PHYSICAL WEIGHT >> 2.57Lbs
PROCESSING >> CNC
MATERIAL >> Aluminum CNC Machining
POCKETTYPE >> ILF
BRACE HEIGHT >> 21-23CM
LENGTH OF RESER >> 21“
LENGTH >> 21"(FITS FOR A 62" 64"  OR 66" BOW)
FINISH >> Anodized /Camo
TYPE >> RH
GRIP >> Wood

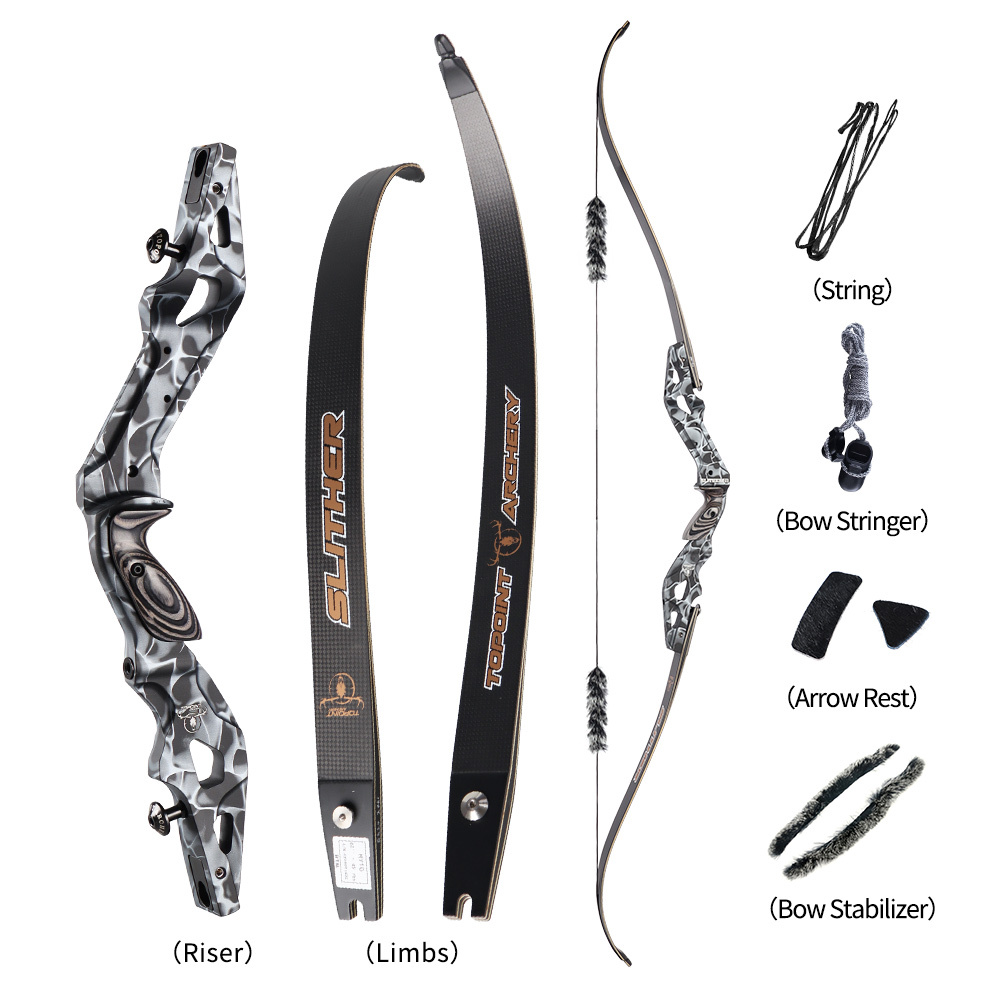

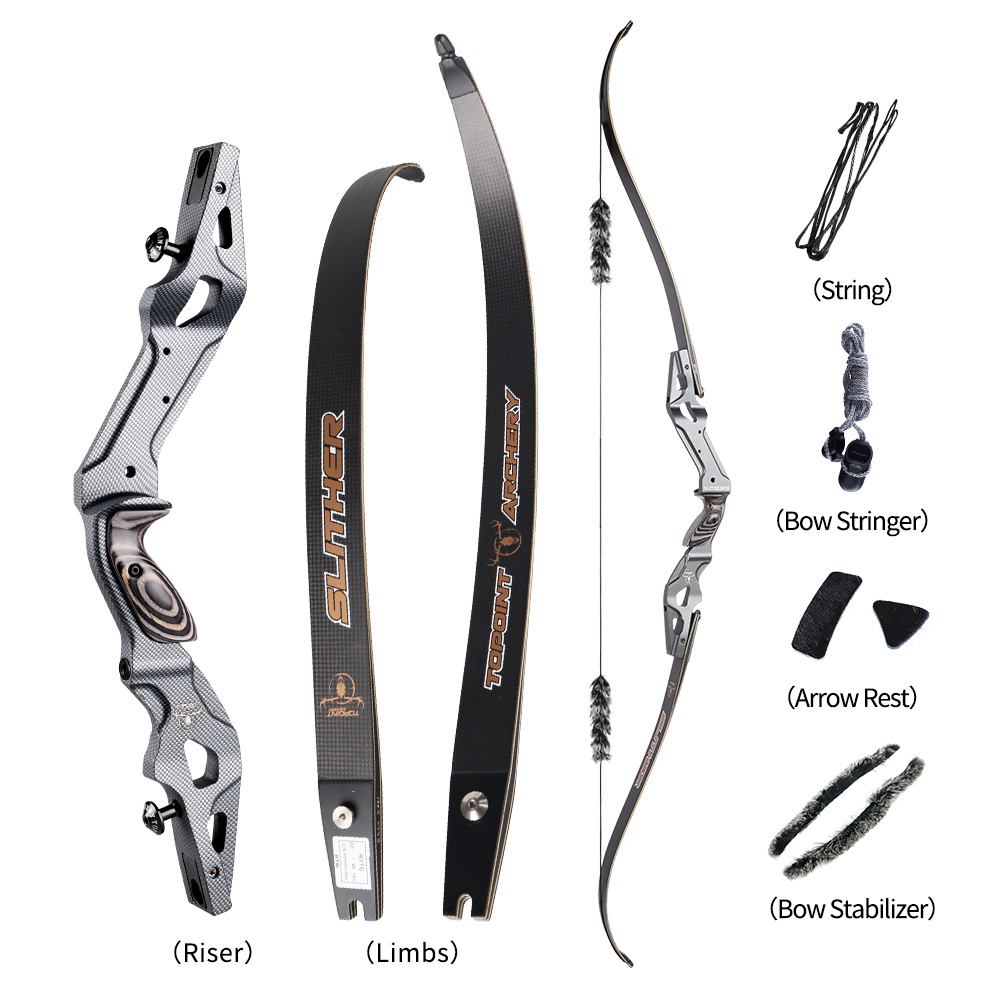

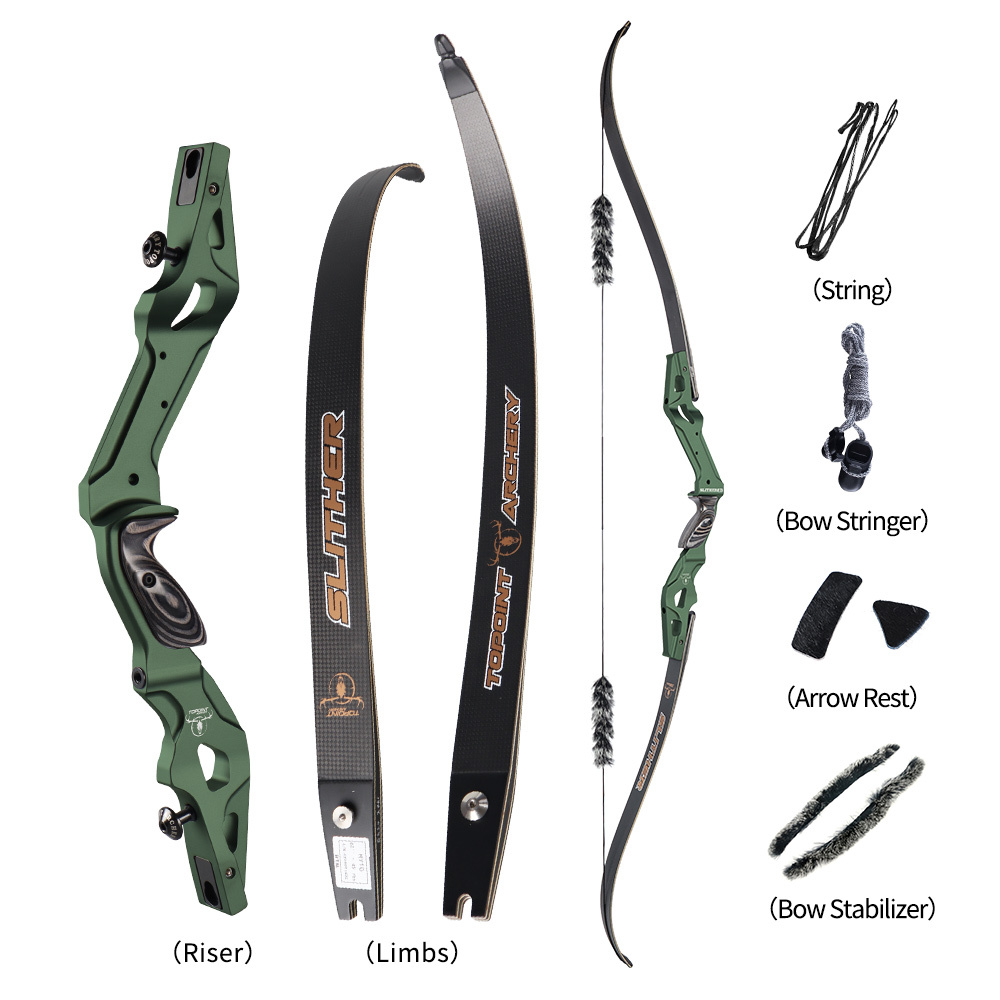

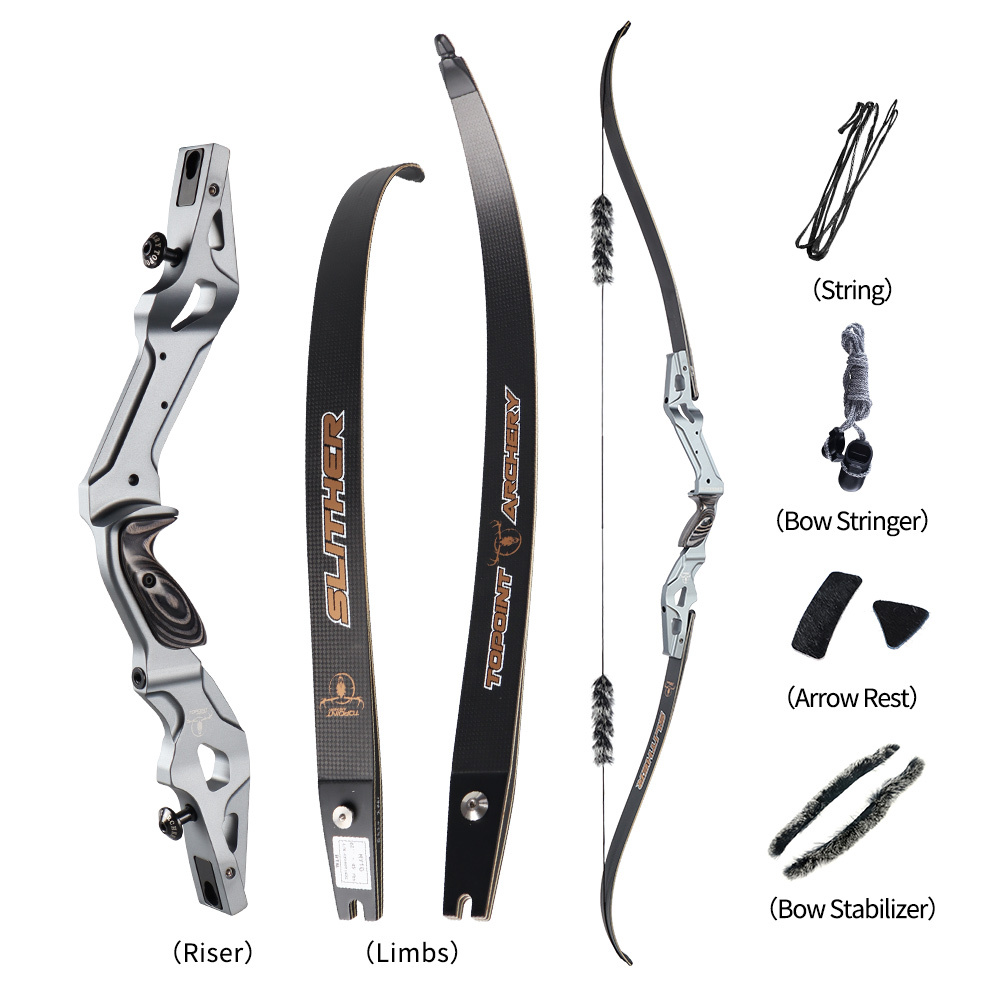

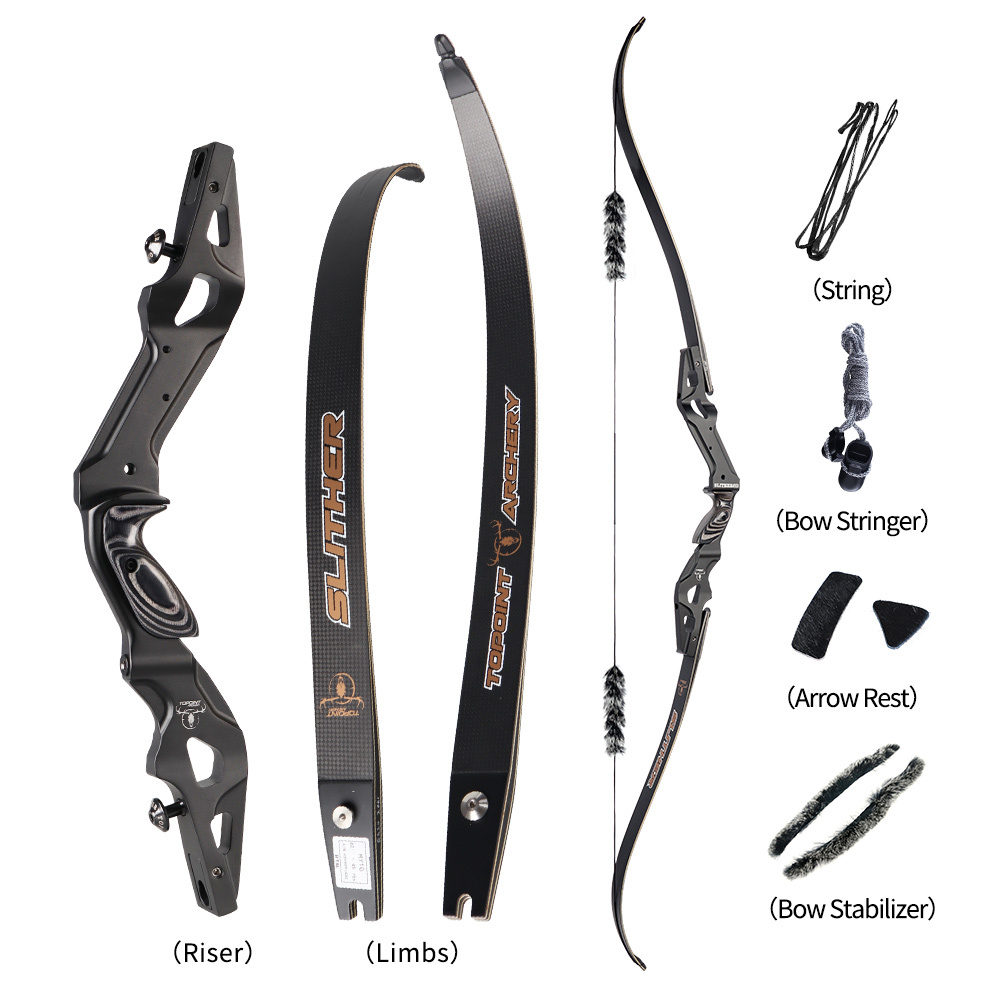

Package Topoint Slither Riser * 1
Topoint Slither Limbs
String * 1
Bow Stringer * 1
Shelf Rests * 1
Bow Stabilizer * 1

RECURVE BOW LIMBS
 INCREASING BY 5LBS
RISER SHORT MEDIUM LONG
FITS 17” ILF RISER 58" -35 T0 60LBS 60" -35 T0 60LBs 62" -35 T0 60LBS
FITS 19” ILF RISER 60" -30 T0 55LBS 62" -30 T0 55LBS 64" -30 T0 55LBS
FITS 21” ILF RISER 62" -25 T0 50LBs 64" -25 70 50LBS 66" -25 T0 50LBS

                                       Riser Material >> Aluminum CNC Machining

                                                    Finish >> Anodized /Camo
                            ILF device can install the bow blade without allen key
              In order to properly assemble the limbs with the riser, you will need to push theILF detent part from the limb
into the appropriately sized slot on the riser until youhear a click.


                                  TOPOINT SLITHER 3K CARBON BAMBOO LIMBS
                          RECURVE BOW LIMBS //  IINCREASING BY 5LBS



                                          Special Unique Designed Wooden Grip
                                                  68"(StringType: B55, 12 strands)


                               Ghsot / Tactical / Smoke/ Black / Bronze/  Arm green

                                                       Bow length: Riser and limb fitting
          In order to properly assemble the limbs with the riser, you will need to pushthe lLF detent part
from the limb into the appropriately sized slot on the riser untilyou hear aclick.


TOPOINT Length of riser Long Limbs Medium Limbs Short Limbs
21 inch 66" 64" 62"

                                                                    Brace Height
             Brace height is the horizontal distance between the grip and thebowstring.Changing the brace
heightdoes not affect the draw weight but cansignificantly affectbow performance. A higher brace
height will decrease velocitywhile a lower braceheight will increase velocity.


Recurve Bow Long Limbs Medium Limbs Short Limbs
21 inch 22~23cm 21.5~22.5cm 21~22cm


                                                  Tiller And Draw Weight Adjustability

          When the correct poundage is set, tighten the locking bolt located at backof the riser(photo1).
It is best to adjust tiller and weight while the bow is unstrung. To adjust the tiller and bow weight,
you first need to loosen the weight/tillerlockingbolt with the Allenkey (photo1).
       Use the Allen key to turn the weight/tiller adjustment boltclockwise to increase bow weight
and counter clockwise to de-crease bow weight (photo2).

         When adjusting the tiller and bow weight, do not exceed the recommendedturnsout from the
maximum position (photo 3)
           Maximum opening: 4 completeturns starting from closed position (photo 4).




                                                               Limb / Riser Alignment

           Before adjusting the alignment of the riser, first check the center string positiontowards the riser.
You can adjust the centershot without unstringing your bow.
         Before adjusting the alignment of the riser, first check the center string positiontowardsthe riser. You can  adjust the centershot without unstringing your bow.
          1. Unscrew both locking screws(photo 5)
         2. To adjust limb position to the left, loosen the innerleft side bolt (photo 6) andtightenthe right sided one till  the limb is centered.
          3. Once the limb is centered, retighten the left side bolt(photo 6)
          4.Fasten both lockingscrews(photo 6)
