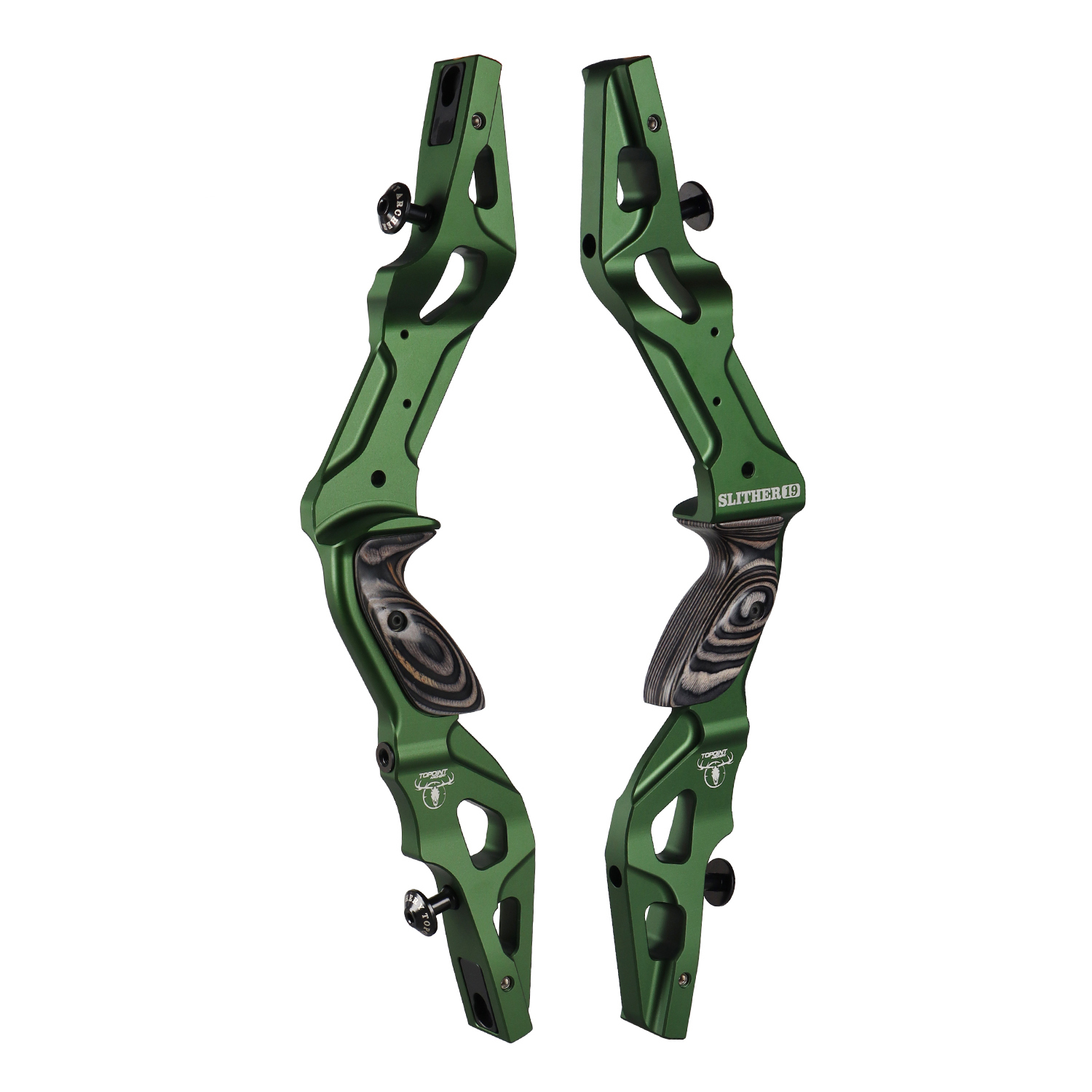

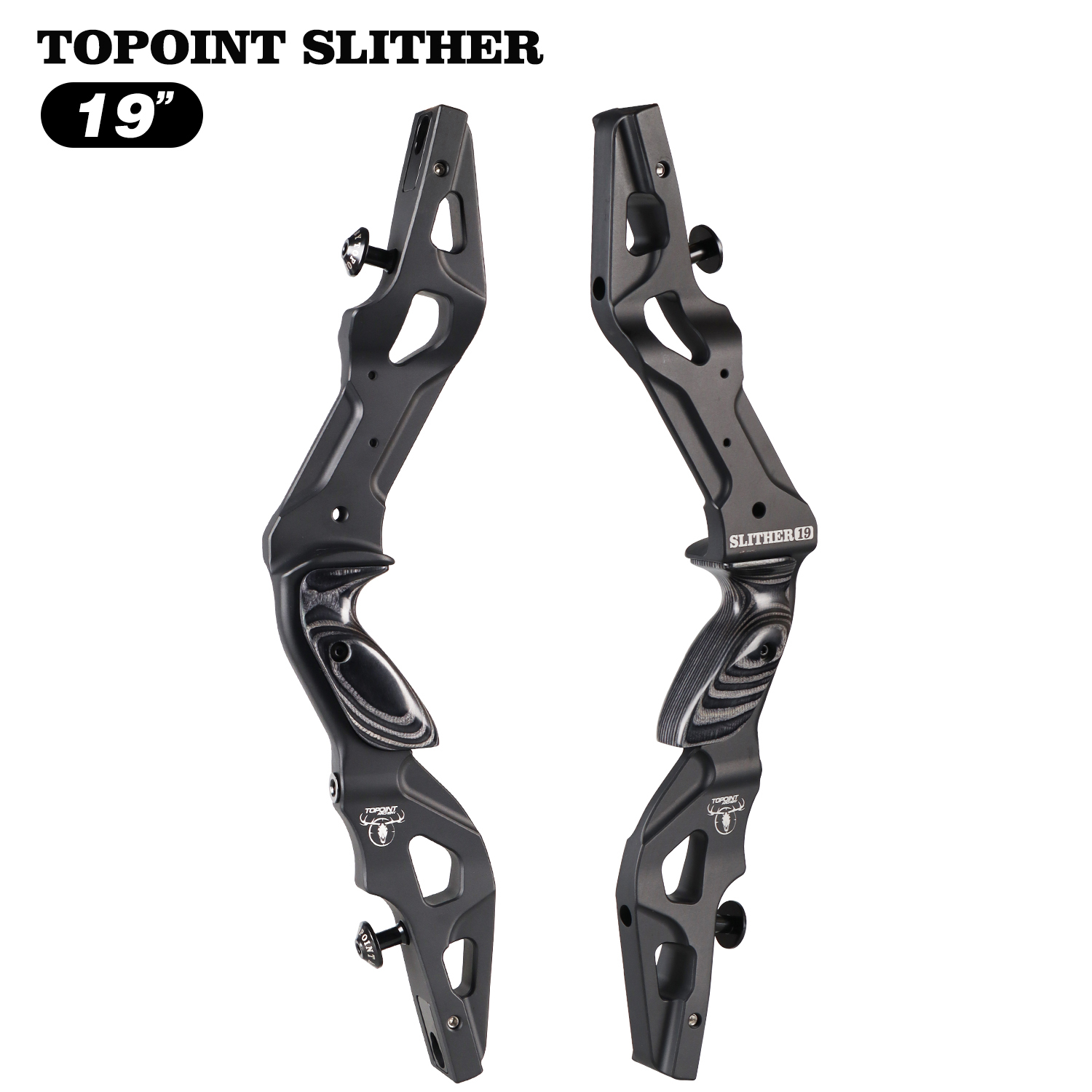

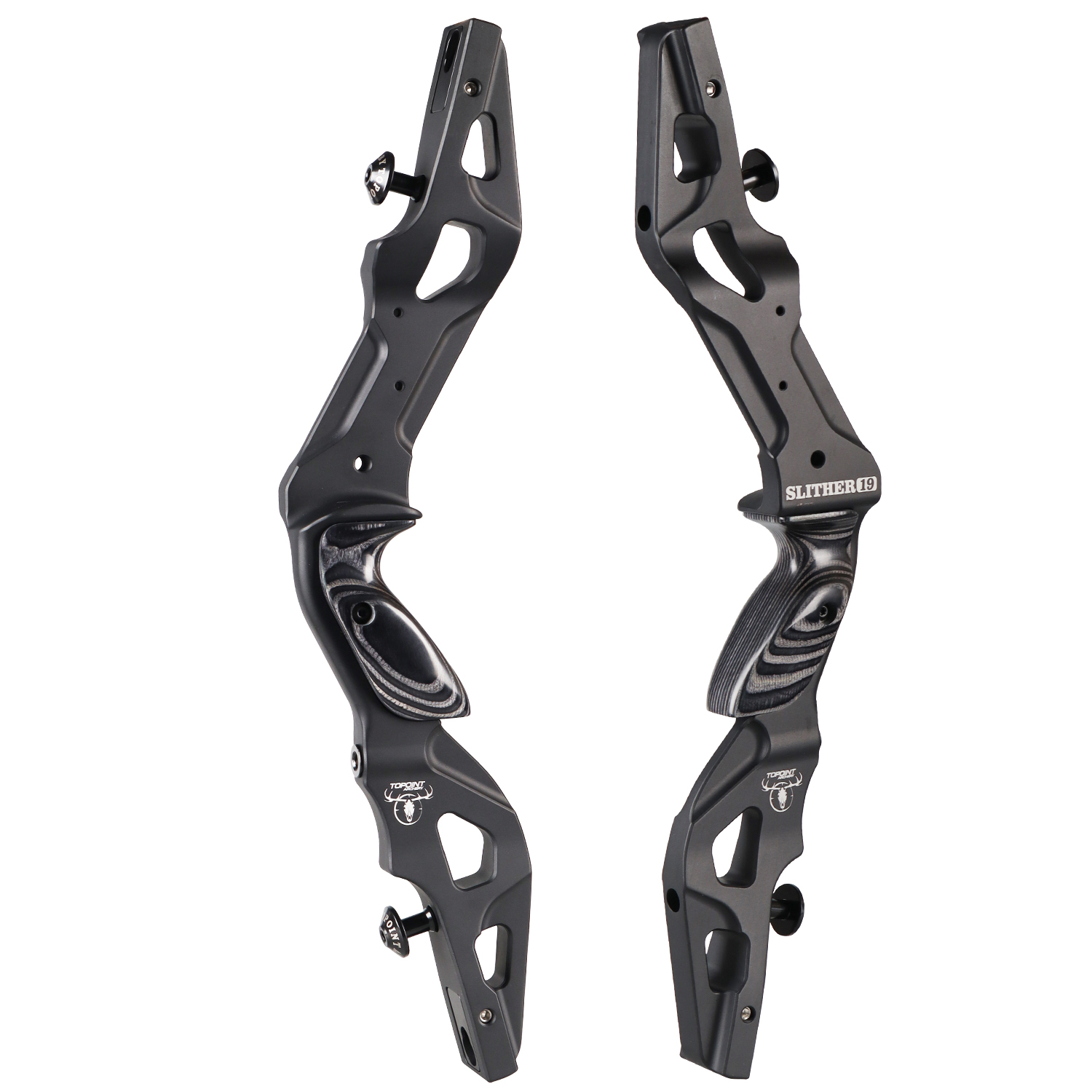

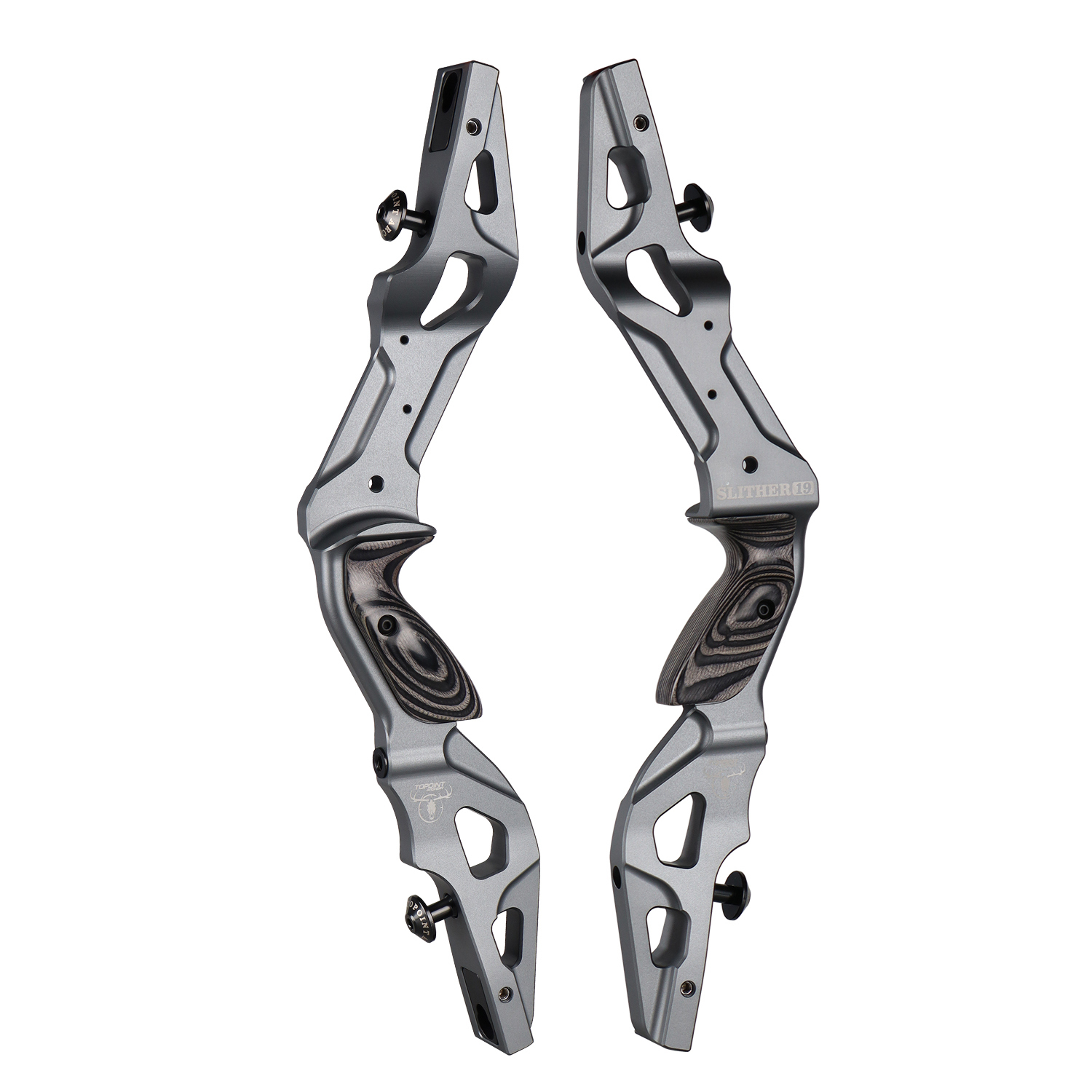

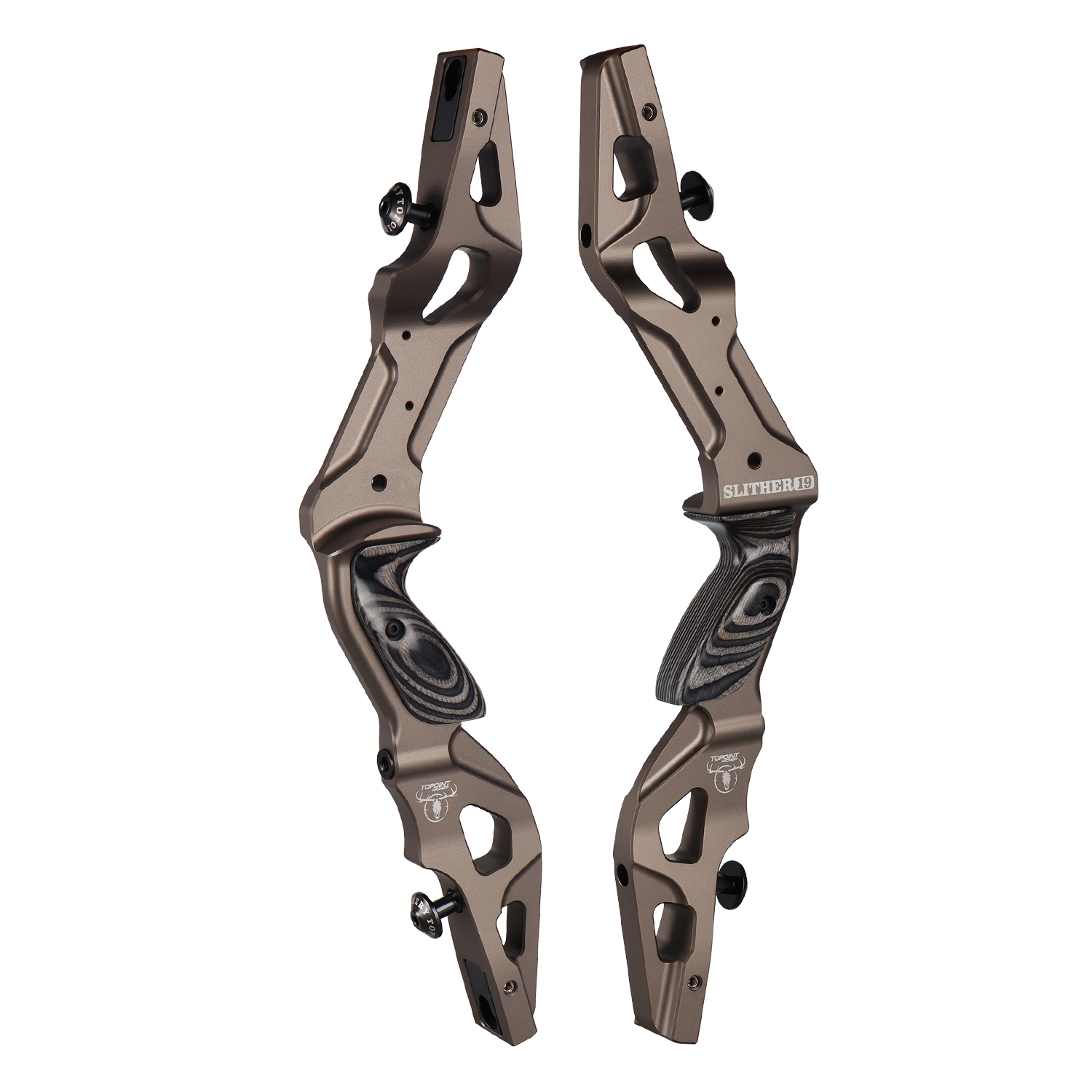

| roduct name |
Hunting Recurves -Topoint Slither |
| Brand |
TOPOINT |
| Material |
Aluminum CNC Machining |
| Specification |

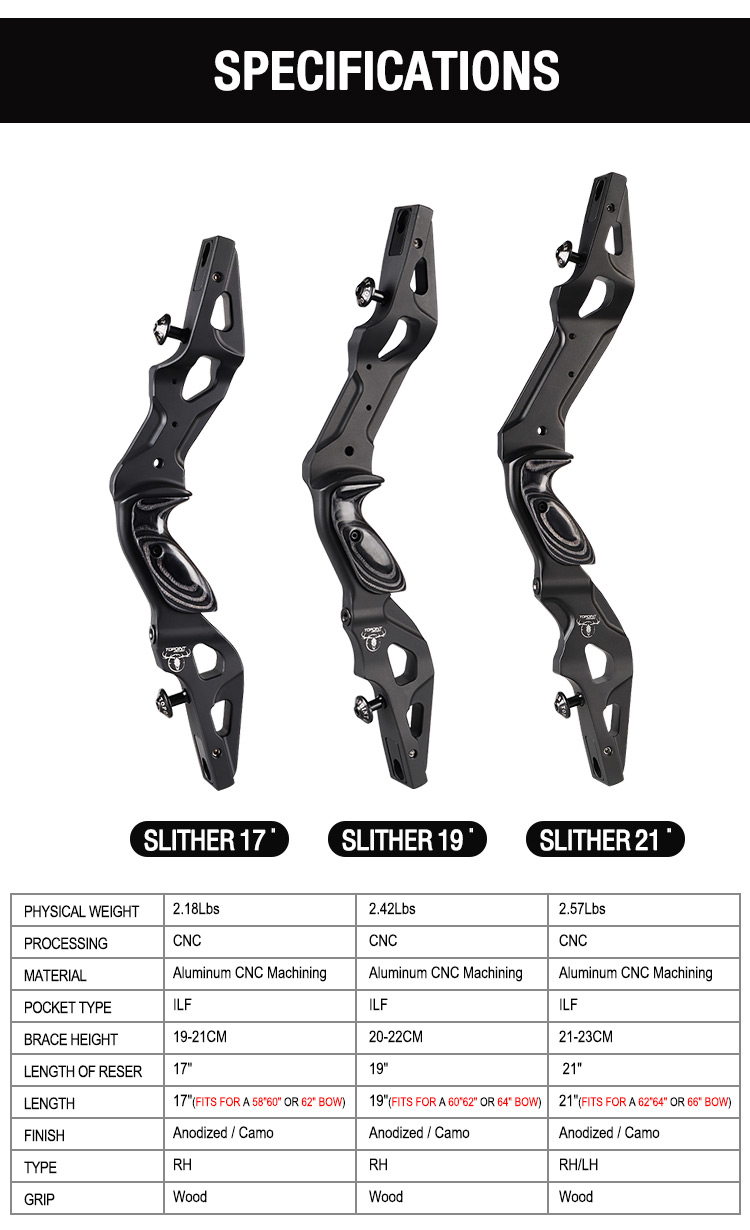

PHYSICAL WEIGHT >> 2.18Lbs
PROCESSING >> CNC
MATERIAL >> Aluminum CNC Machining
POCKETTYPE >> ILF
BRACE HEIGHT >> 19-21CM
LENGTH OF RESER >> 17“
LENGTH >> 17”(FITS FOR A 58' 60" OR 62” BOW)
FINISH >> Anodized /Camo
TYPE >> RH
GRIP >> Wood
|

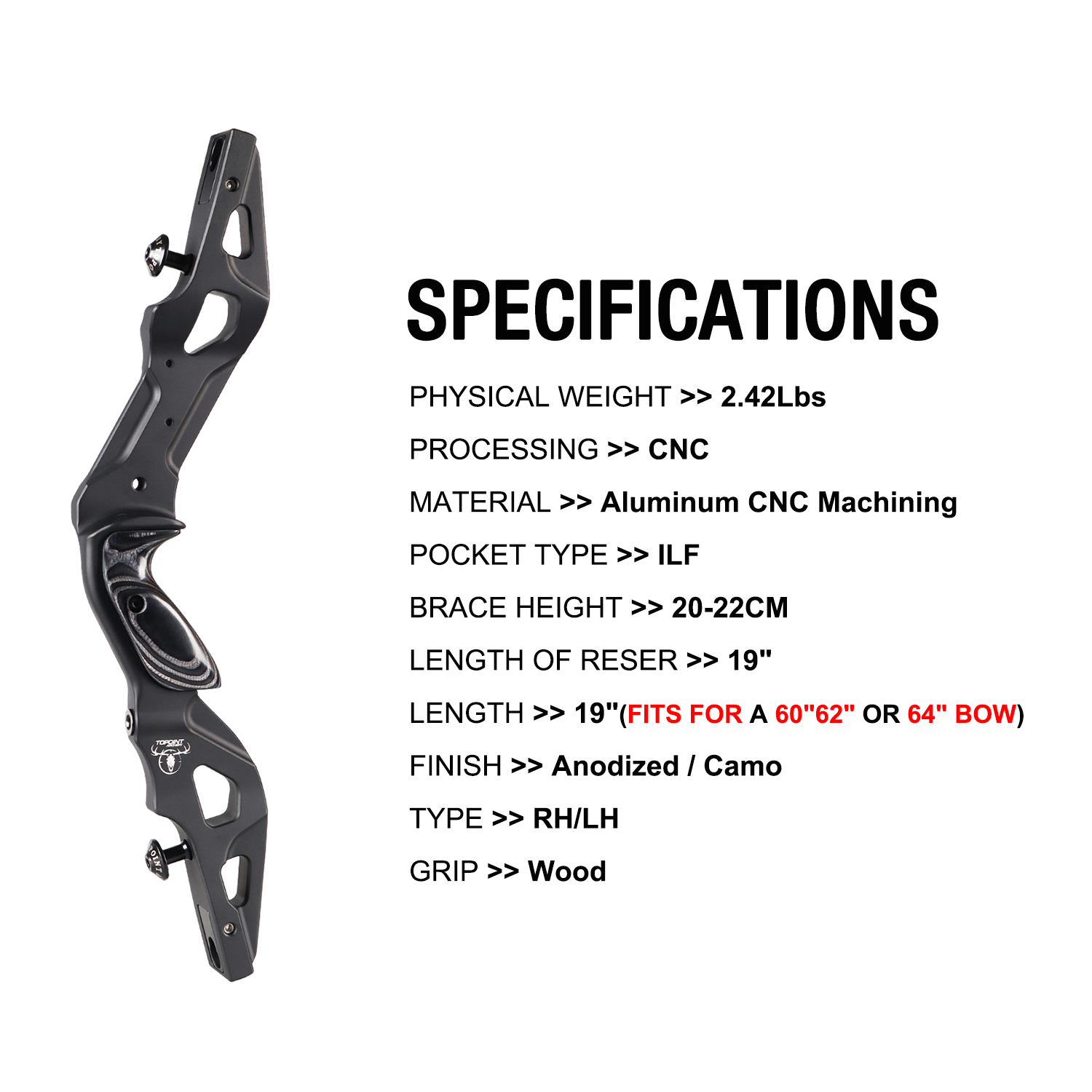

PHYSICAL WEIGHT >> 2.42Lbs
PROCESSING >> CNC
MATERIAL >> Aluminum CNC Machining
POCKETTYPE >> ILF
BRACE HEIGHT >> 20-22CM
LENGTH OF RESER >> 19“
LENGTH >> 19"(FITS FOR A 60" 62" OR 64" BOW)
FINISH >> Anodized /Camo
TYPE >> RH
GRIP >> Wood |
PHYSICAL WEIGHT >> 2.57Lbs
PROCESSING >> CNC
MATERIAL >> Aluminum CNC Machining
POCKETTYPE >> ILF
BRACE HEIGHT >> 21-23CM
LENGTH OF RESER >> 21“
LENGTH >> 21"(FITS FOR A 62" 64" OR 66" BOW)
FINISH >> Anodized /Camo
TYPE >> RH
GRIP >> Wood |
| Package |
Topoint Slither Riser * 1
Topoint Slither Limbs
String * 1
Bow Stringer * 1
Shelf Rests * 1
Bow Stabilizer * 1
|

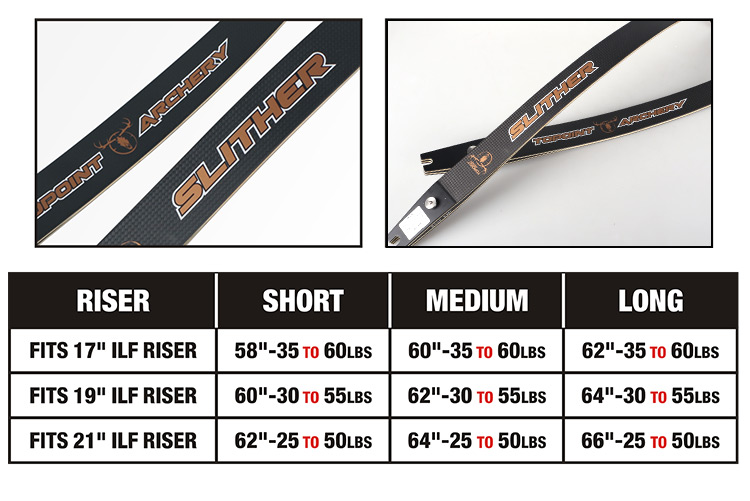

RECURVE BOW LIMBS
INCREASING BY 5LBS |
RISER |
SHORT |
MEDIUM |
LONG |
| FITS 17” ILF RISER |
58" -35 T0 60LBS |
60" -35 T0 60LBs |
62" -35 T0 60LBS |
| FITS 19” ILF RISER |
60" -30 T0 55LBS |
62" -30 T0 55LBS |
64" -30 T0 55LBS |
|
| FITS 21” ILF RISER |
62" -25 T0 50LBs |
64" -25 70 50LBS |
66" -25 T0 50LBS |
Riser Material >> Aluminum CNC Machining
Finish >> Anodized /Camo
ILF device can install the bow blade without allen key
In order to properly assemble the limbs with the riser, you will need to push theILF detent part from the limb
into the appropriately sized slot on the riser until youhear a click.

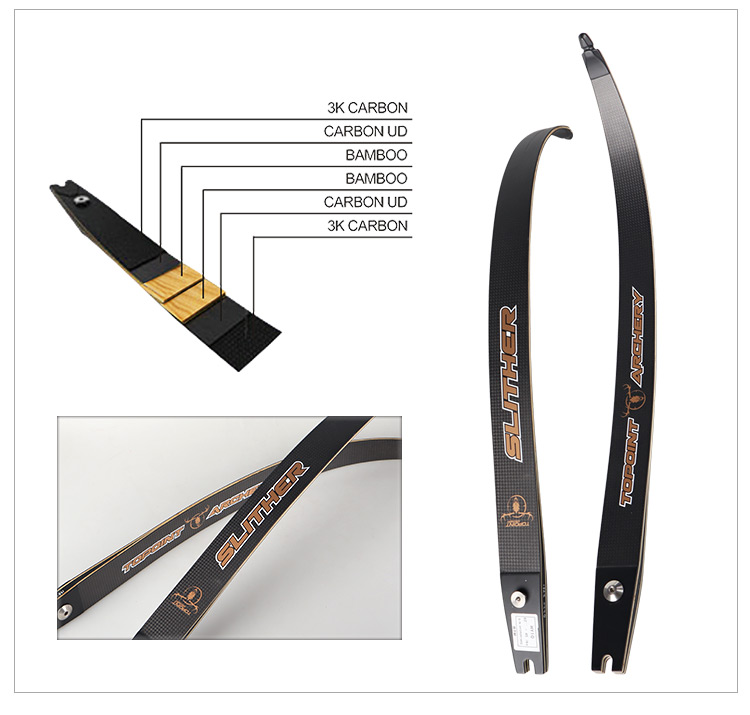

TOPOINT SLITHER 3K CARBON BAMBOO LIMBS
RECURVE BOW LIMBS // IINCREASING BY 5LBS
Special Unique Designed Wooden Grip

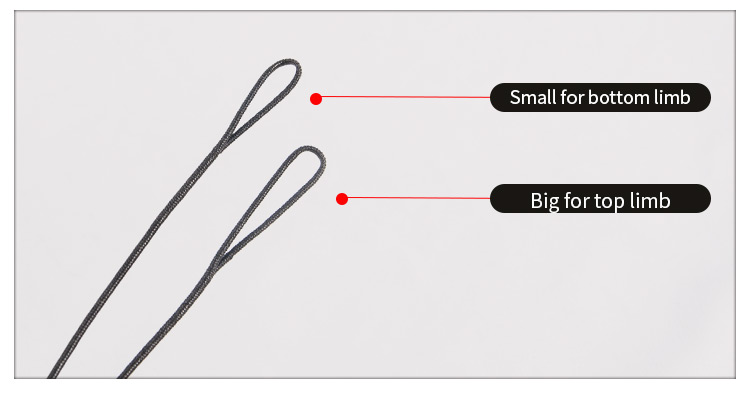

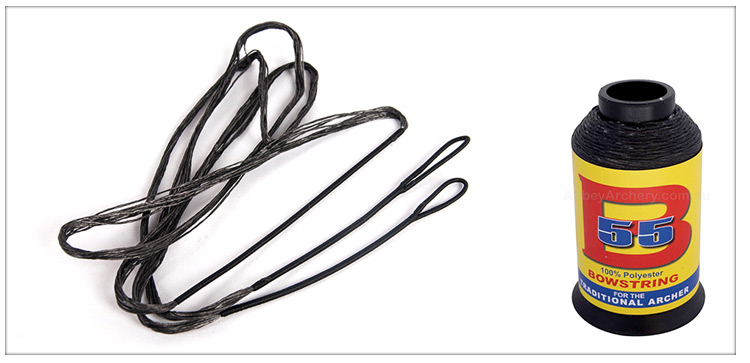

68"(StringType: B55, 12 strands)

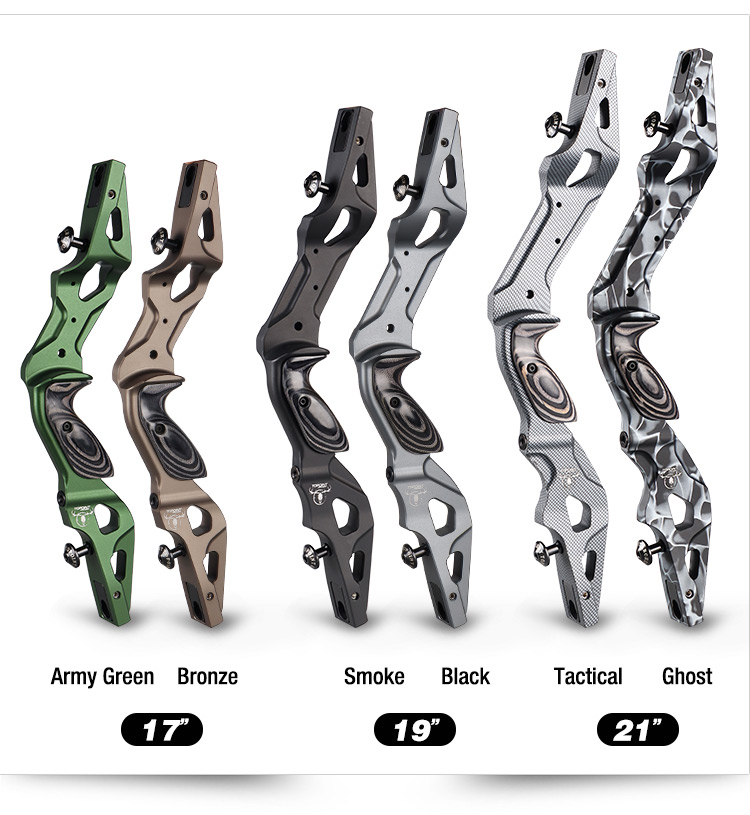

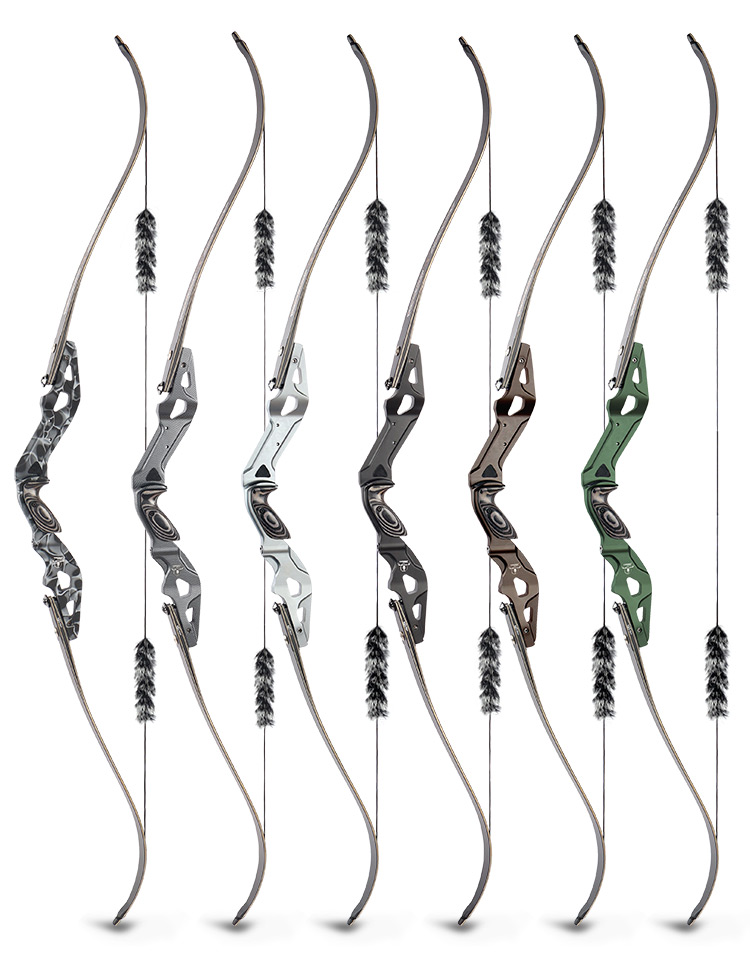

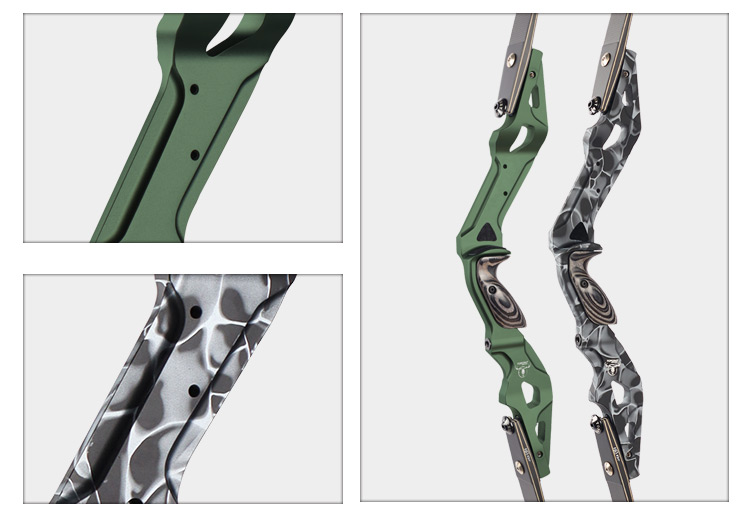

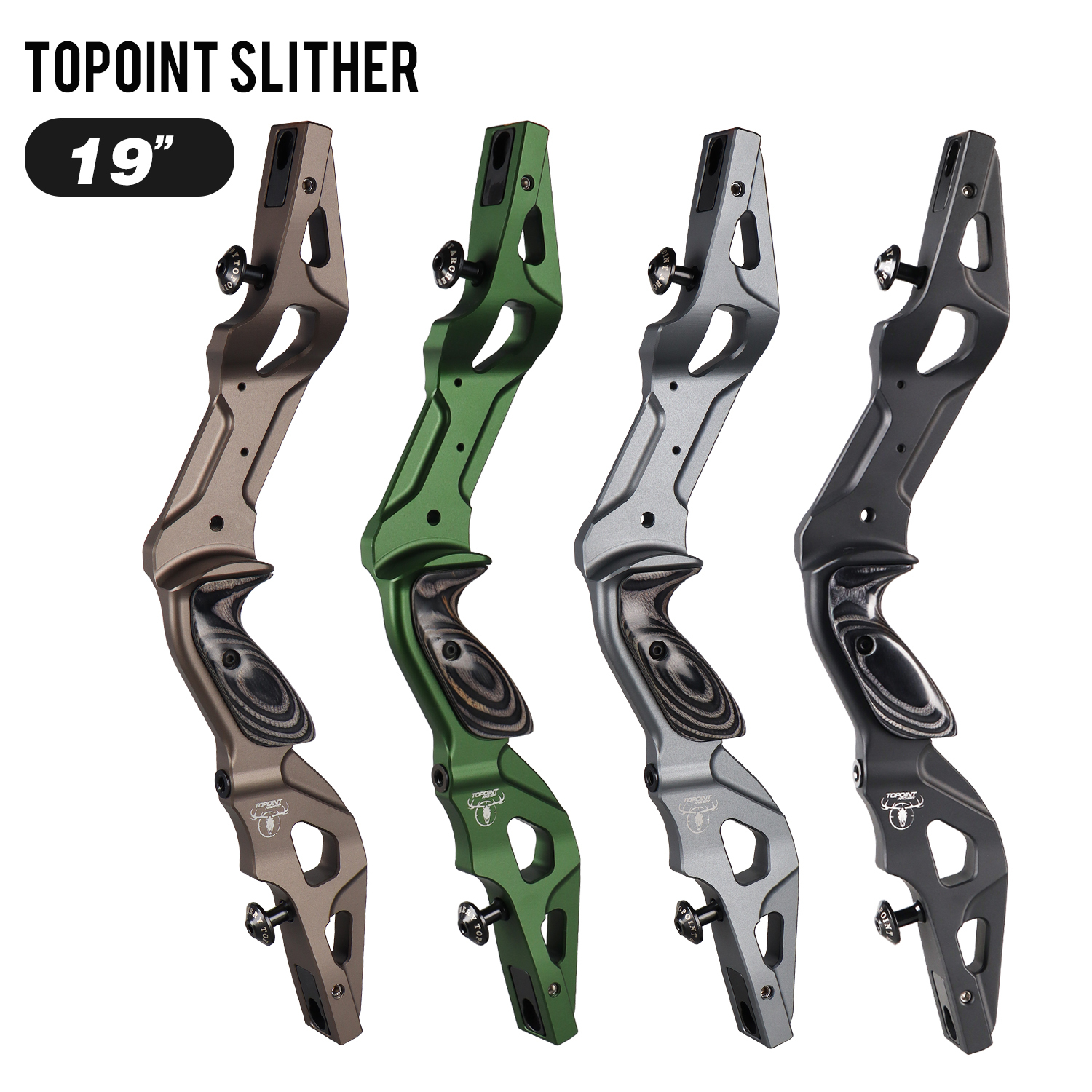

Ghsot / Tactical / Smoke/ Black / Bronze/ Arm green

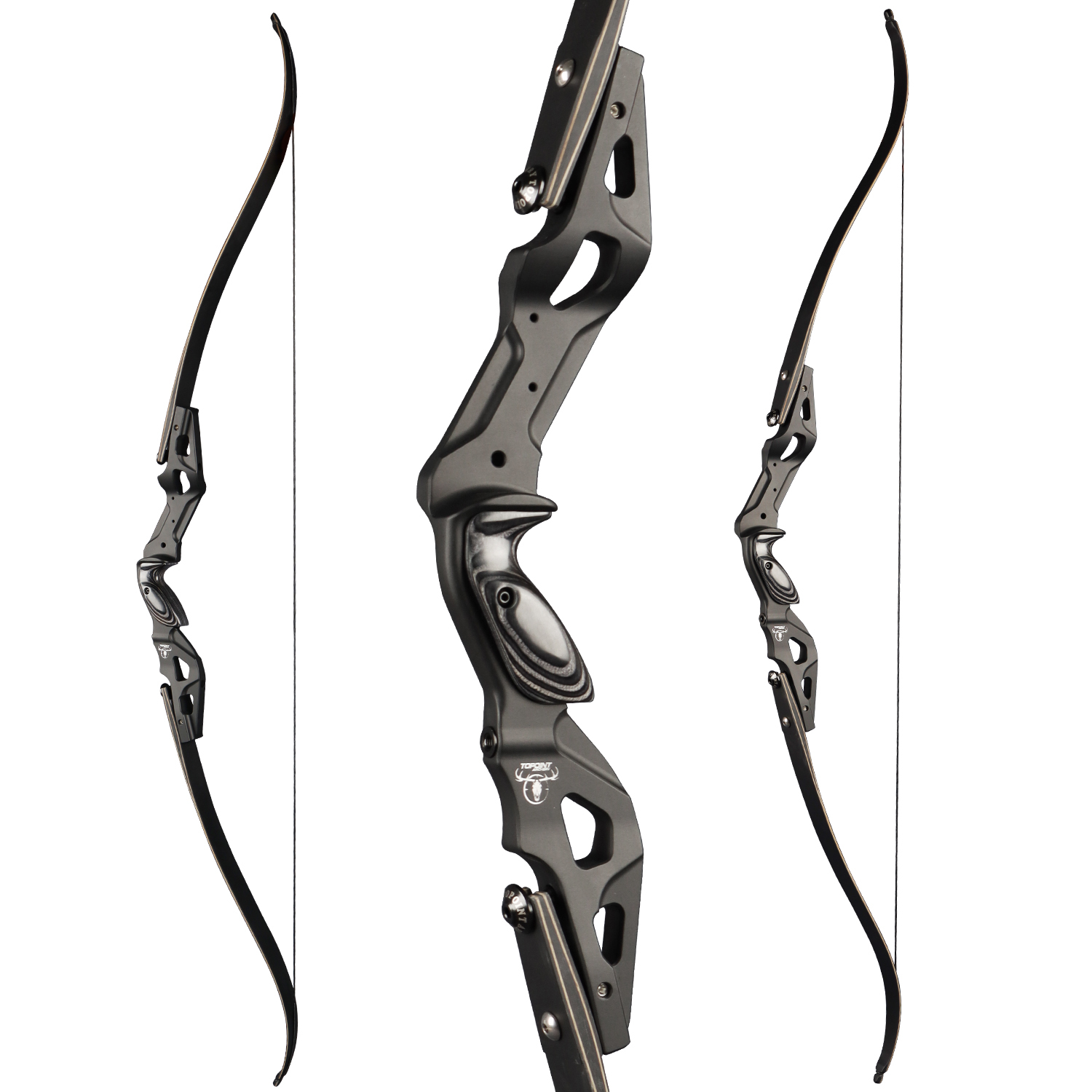

Bow length: Riser and limb fitting
In order to properly assemble the limbs with the riser, you will need to pushthe lLF detent part
from the limb into the appropriately sized slot on the riser untilyou hear aclick.
| TOPOINT Length of riser |
Long Limbs |
Medium Limbs |
Short Limbs |
| 21 inch |
66" |
64" |
62" |

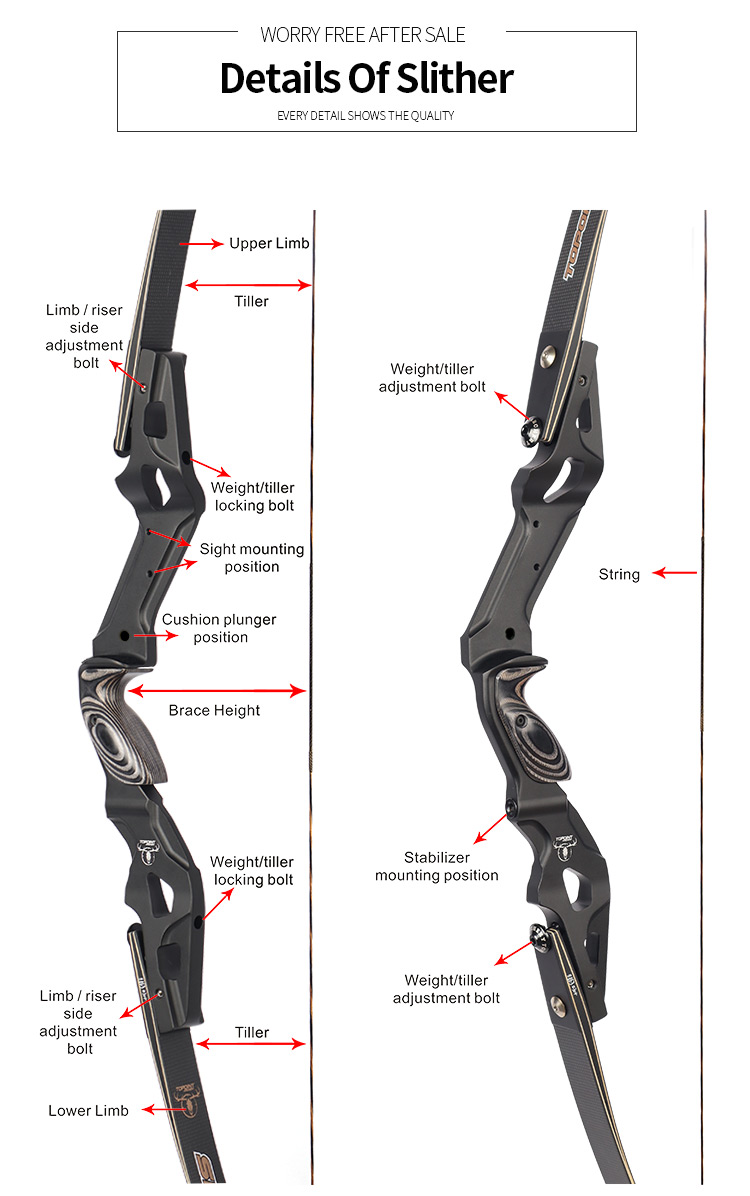

Brace Height
Brace height is the horizontal distance between the grip and thebowstring.Changing the brace
heightdoes not affect the draw weight but cansignificantly affectbow performance. A higher brace
height will decrease velocitywhile a lower braceheight will increase velocity.
| Recurve Bow |
Long Limbs |
Medium Limbs |
Short Limbs |
| 21 inch |
22~23cm |
21.5~22.5cm |
21~22cm |
Tiller And Draw Weight Adjustability

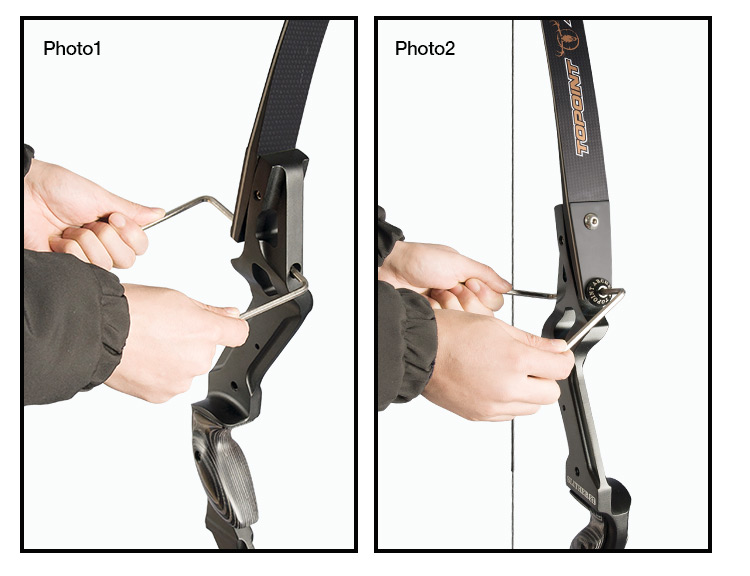

When the correct poundage is set, tighten the locking bolt located at backof the riser(photo1).
It is best to adjust tiller and weight while the bow is unstrung. To adjust the tiller and bow weight,
you first need to loosen the weight/tillerlockingbolt with the Allenkey (photo1).
Use the Allen key to turn the weight/tiller adjustment boltclockwise to increase bow weight
and counter clockwise to de-crease bow weight (photo2).

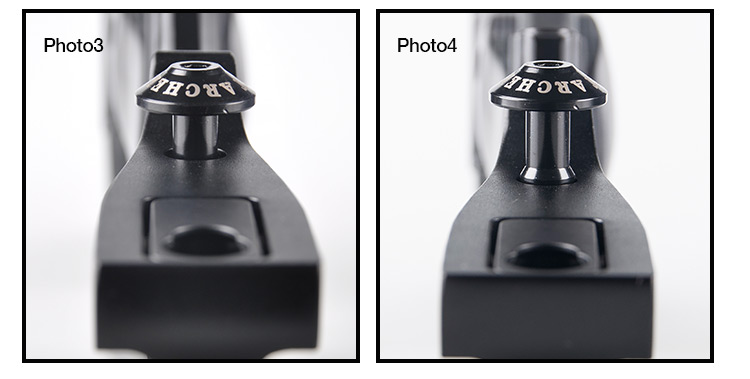

When adjusting the tiller and bow weight, do not exceed the recommendedturnsout from the
maximum position (photo 3)
Maximum opening: 4 completeturns starting from closed position (photo 4).
Limb / Riser Alignment
Before adjusting the alignment of the riser, first check the center string positiontowards the riser.
You can adjust the centershot without unstringing your bow.
Before adjusting the alignment of the riser, first check the center string positiontowardsthe riser. You can adjust the centershot without unstringing your bow.

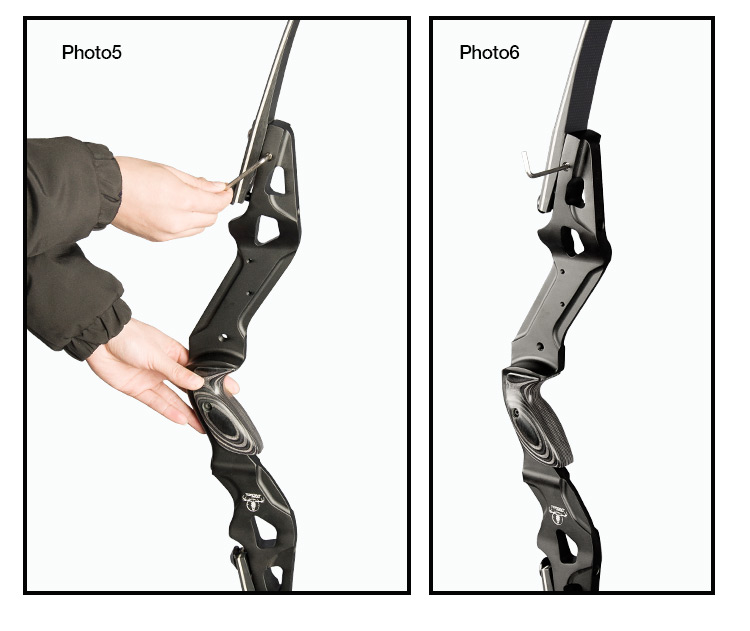

1. Unscrew both locking screws(photo 5)
2. To adjust limb position to the left, loosen the innerleft side bolt (photo 6) andtightenthe right sided one till the limb is centered.
3. Once the limb is centered, retighten the left side bolt(photo 6)
4.Fasten both lockingscrews(photo 6) |
