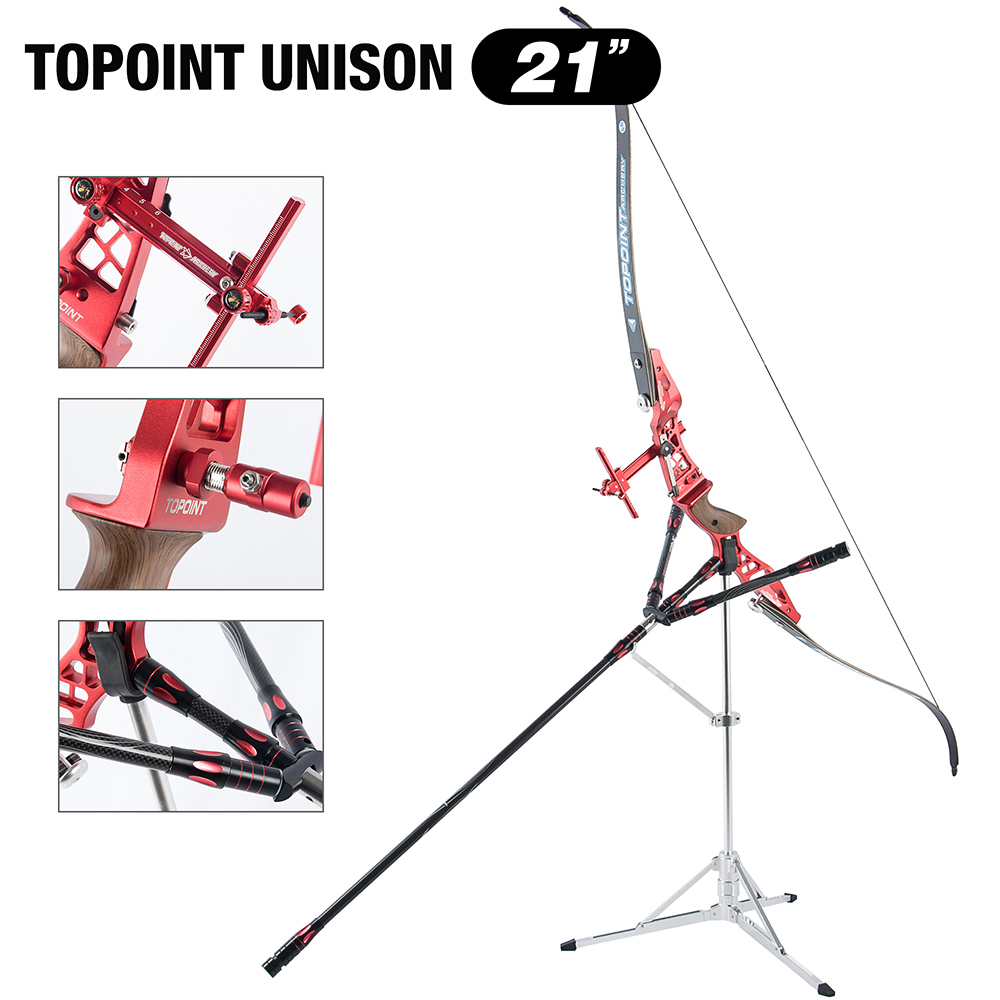

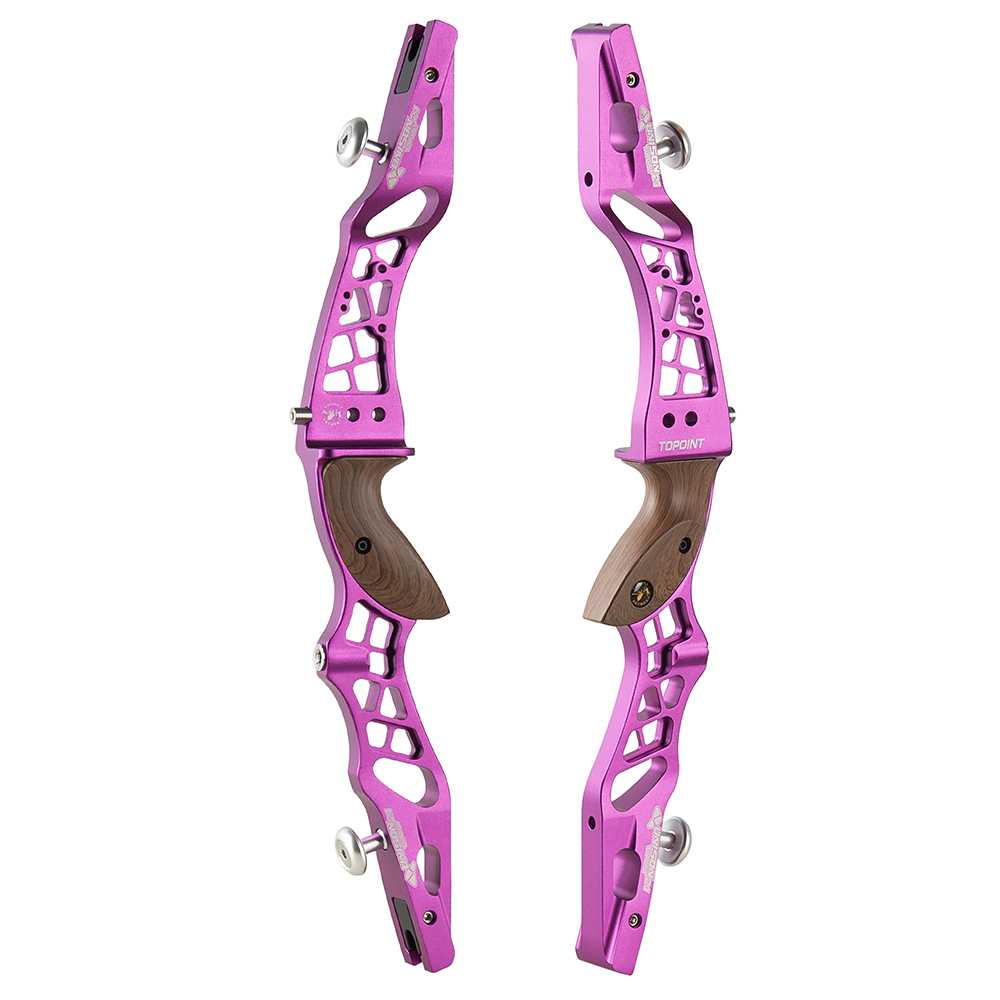

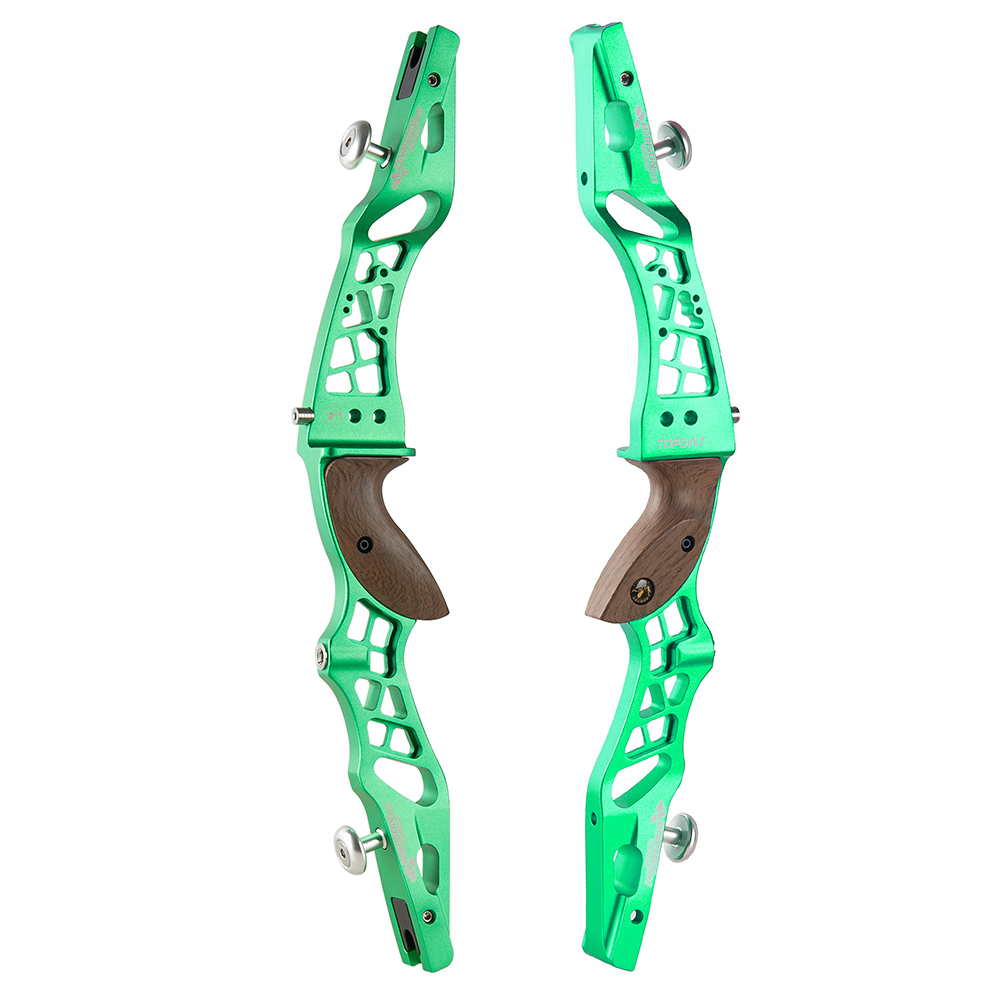

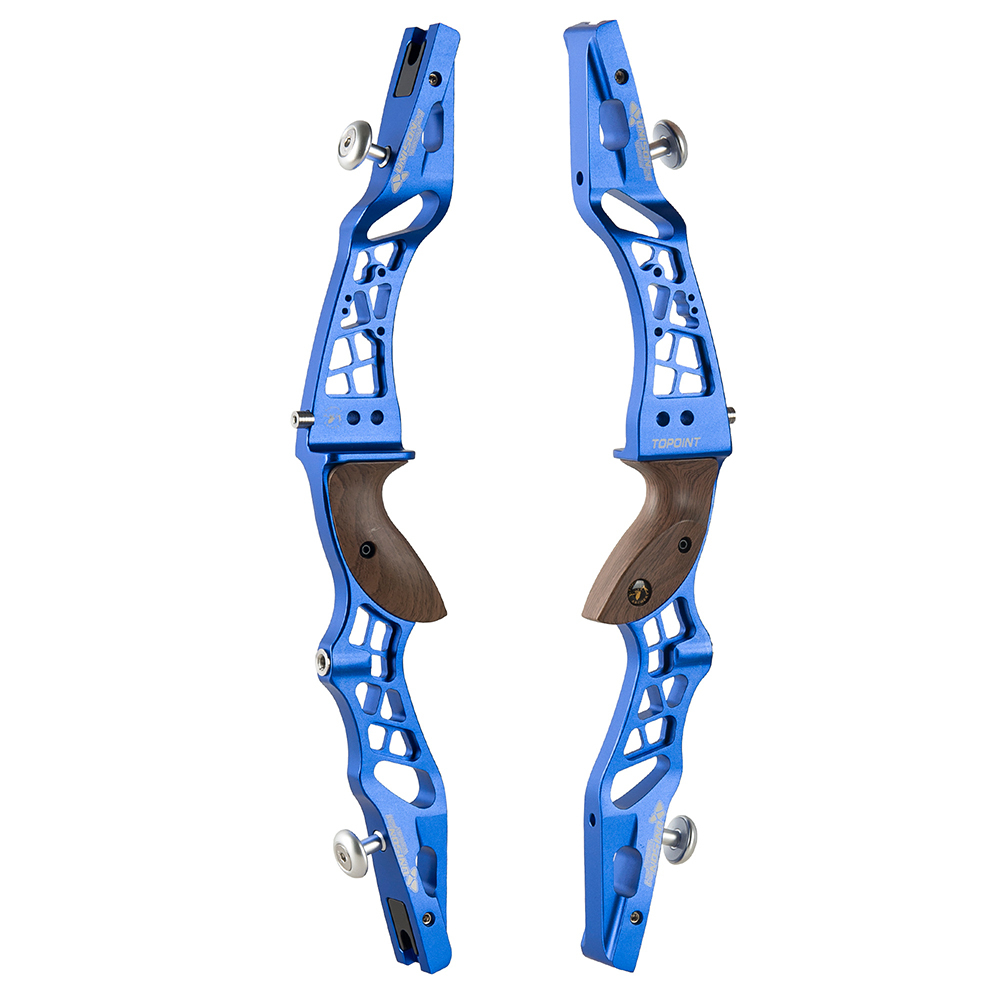

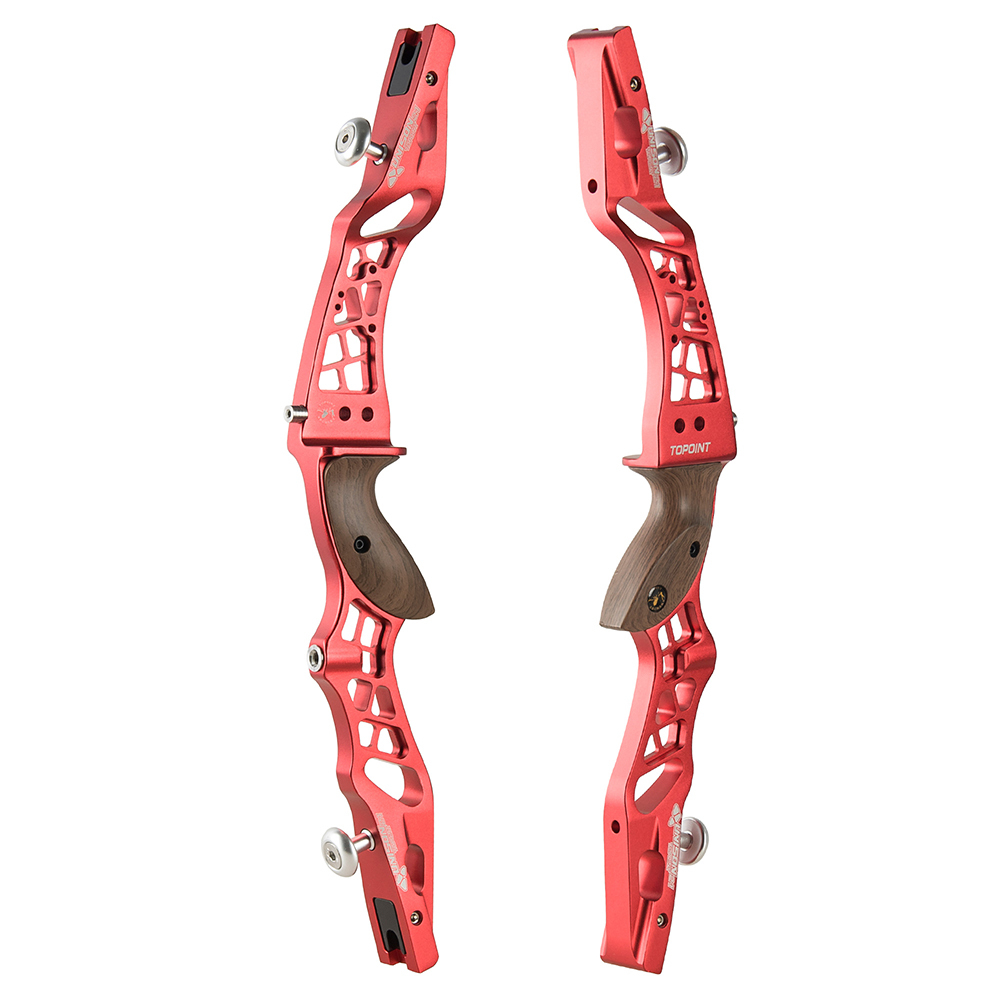

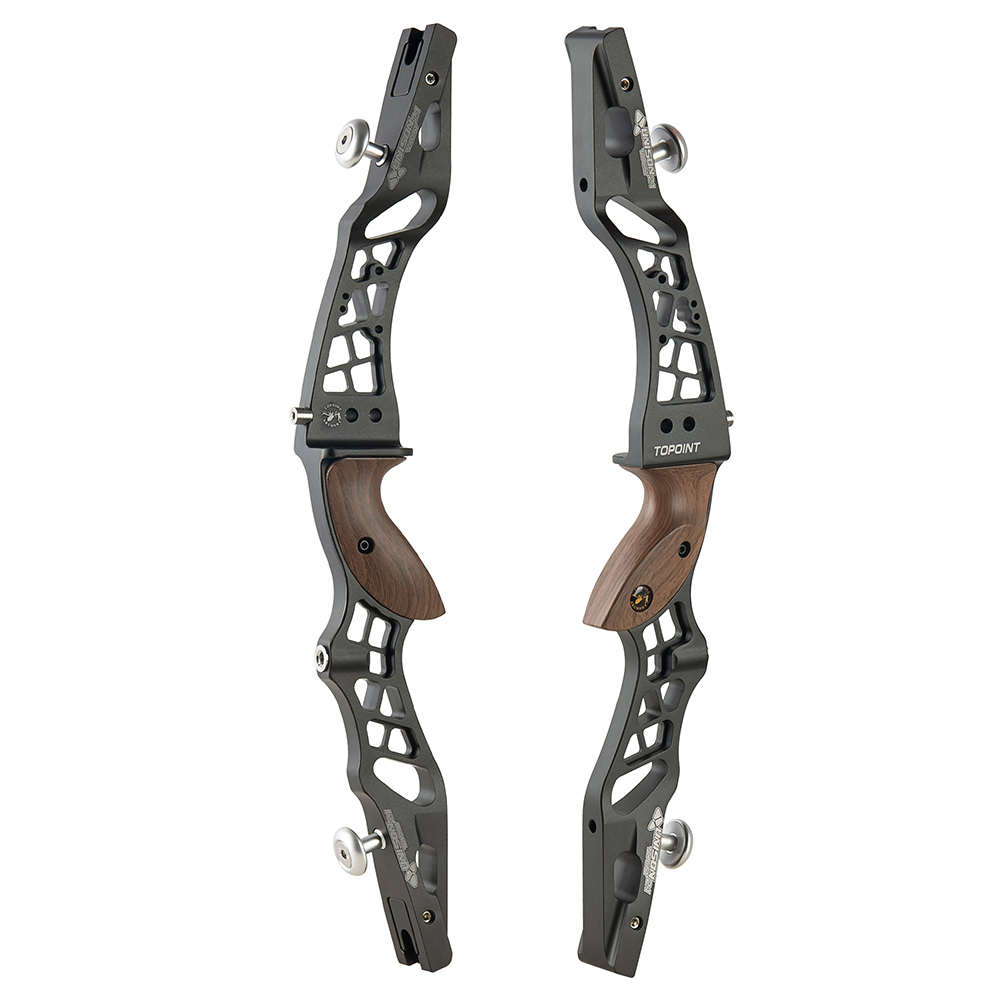

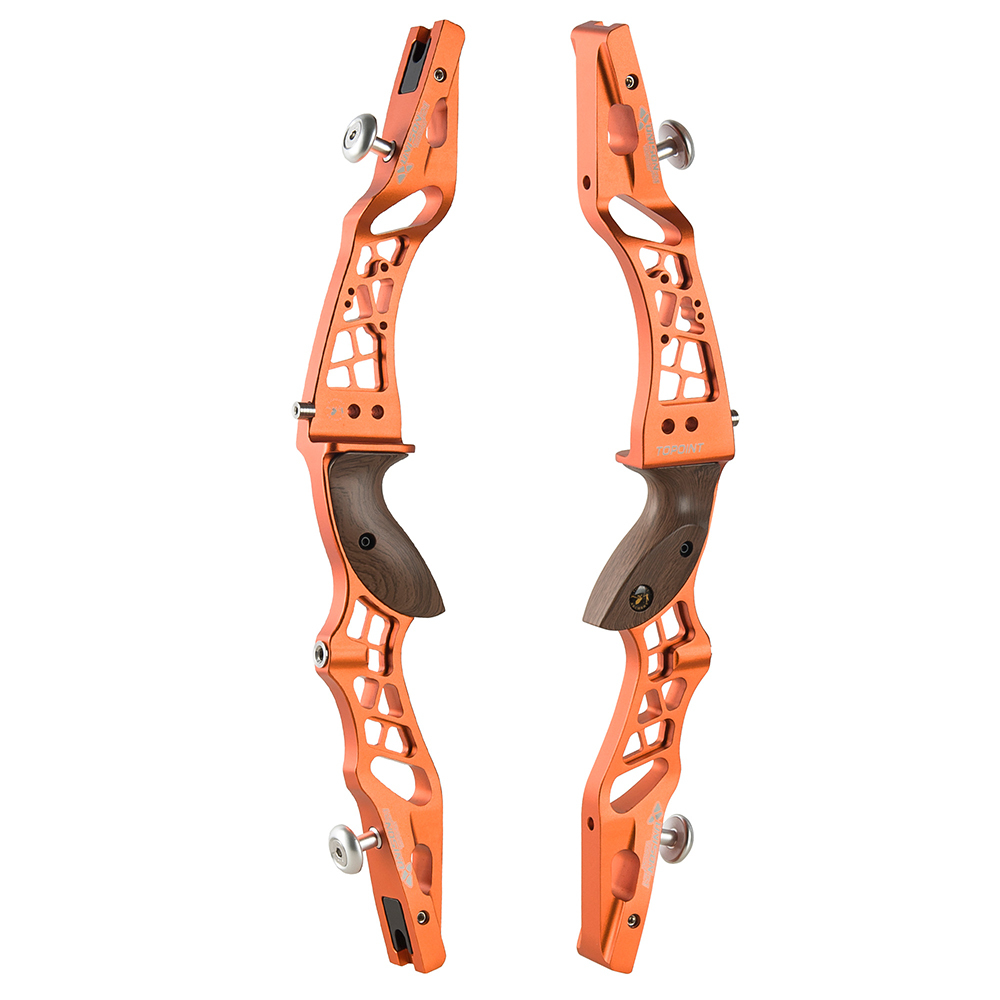

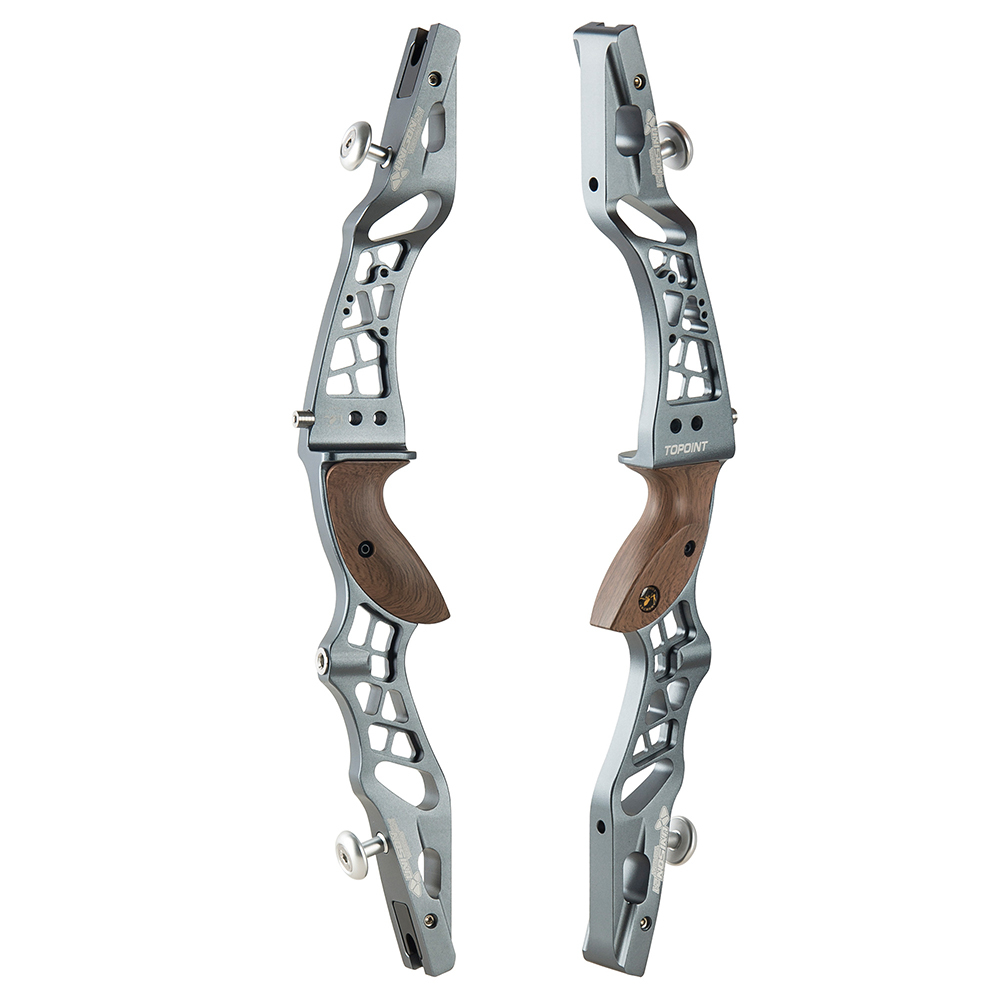

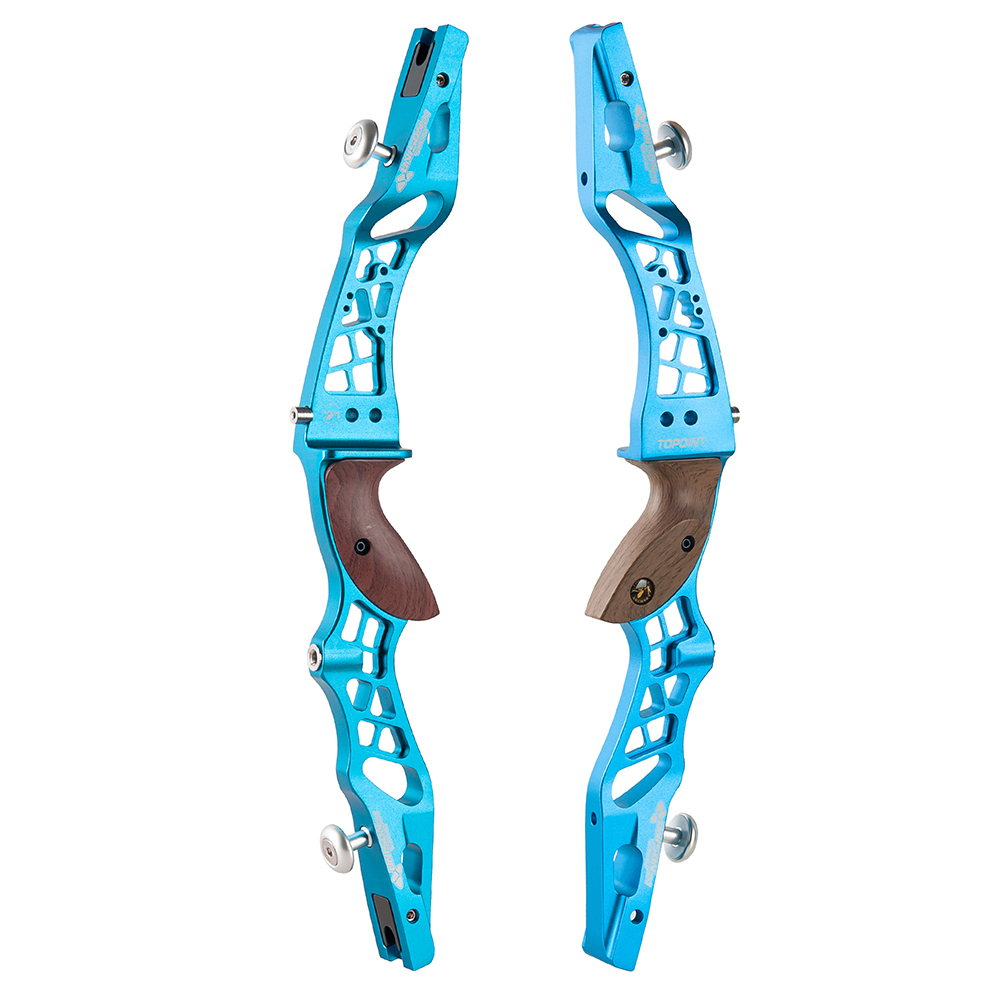

TOPOINTARCHERY UNISON 21 Inch ILF Recurve Bow for Competition Target Shooting Aluminum CNC Milling Recurve Bow Riser Right Handed ILF Device for Arche

CNC Machining Center High accuracy Machined Anodized Aluminium Alloy 6061-T6,Plastic wooden Color Grip
ILF Limb alignment system,fit for all ILF limbs.
Special alignment system,prevent the screw loosening design,could fit the Limbs degree angle,protect
Sold:11
Price:
USD
$179.99
$259.99
  • Color/Package:
    Black
    Red
    Blue
    Green
    Orange
    Smoke
    Turqoise
    Purple
Quantity:
-
+
(80 available)
Please select the information you wantX
Add to Favorite Items
  • Description
  • Reviews
Product name Recurve Bow Riser  TOPOINT UNISON 21"
Brand TOPOINT
Material  Aluminum CNC 6061-T651

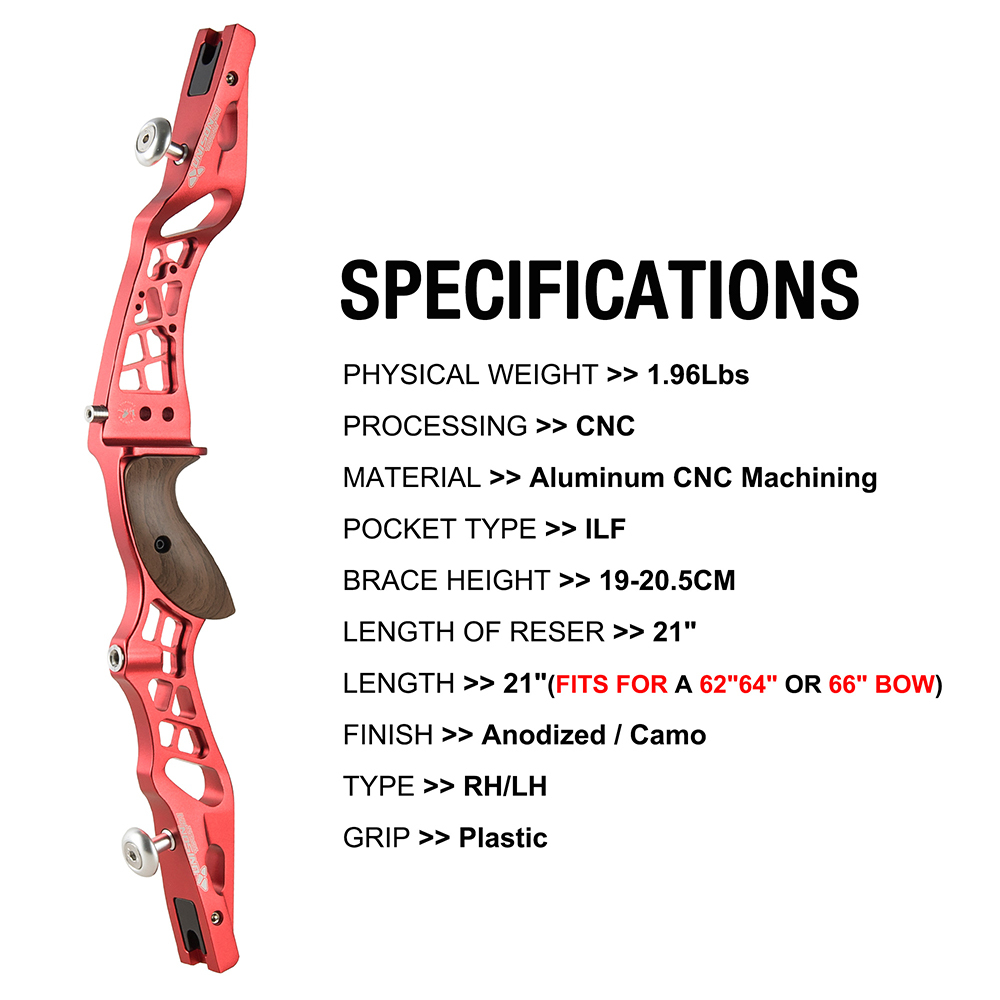

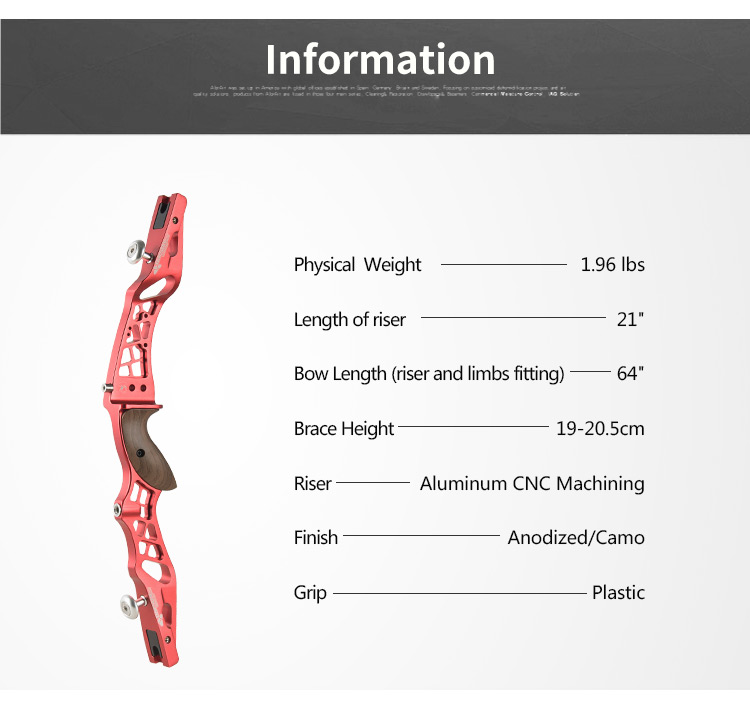

Specification PHYSICALWEIGHT >> 1.96Lbs
PROCESSING >> CNC
LENGTH OF RISER >> 21"
MATERIAL >> Aluminum CNC Machining
POCKETTYPE >> ILF
BRACEHEIGHT >> 19-20.5CM
TYPE >> RH/LH
LENGTH >> 21" (FITS FORA 62” 64” OR 66 "BOW)
FINISH >> Anodized/Camo
GRIP >> Plastic
  CNC Machining Center High accuracy Machined Anodized Aluminium Alloy 6061-T6,Plastic wooden Color Grip
ILF Limb alignment system,fit for all ILF limbs.
Special alignment system,prevent the screw loosening design,could fit the Limbs degree angle,protect

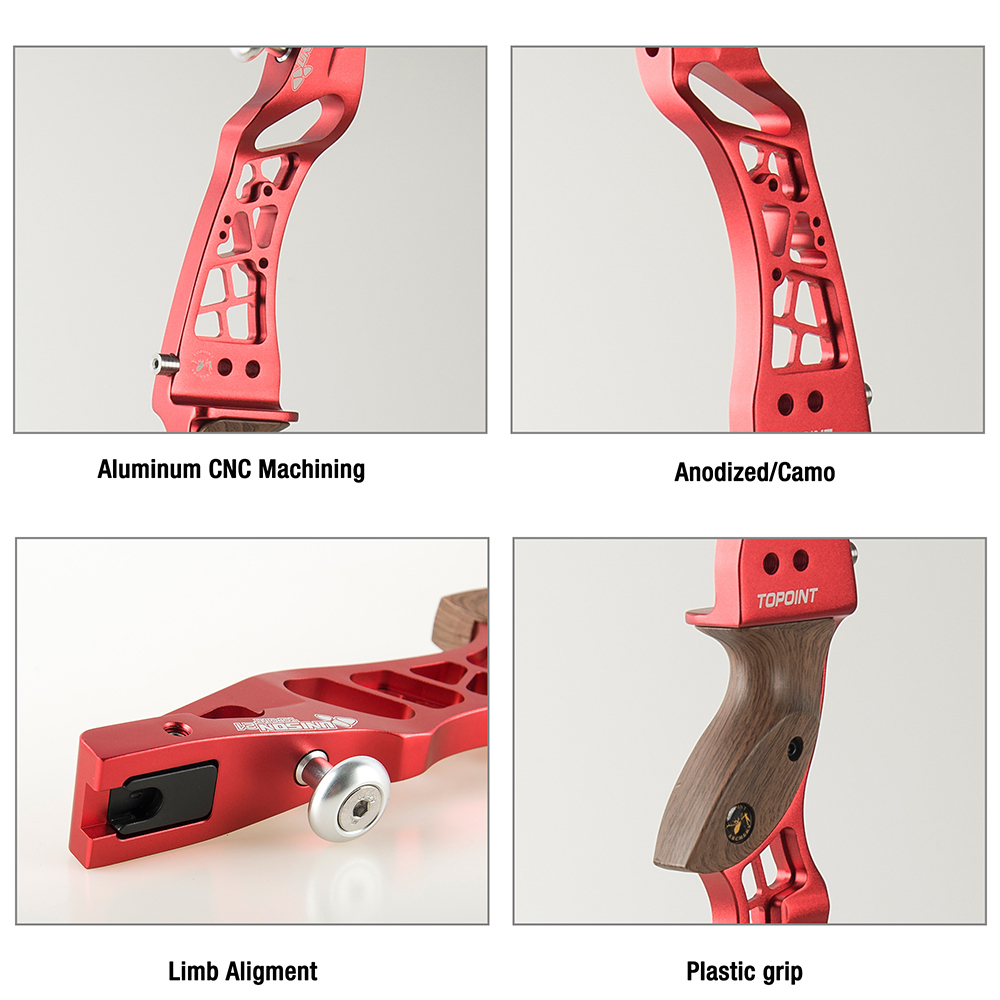

FINISH >> Anodized / Camo

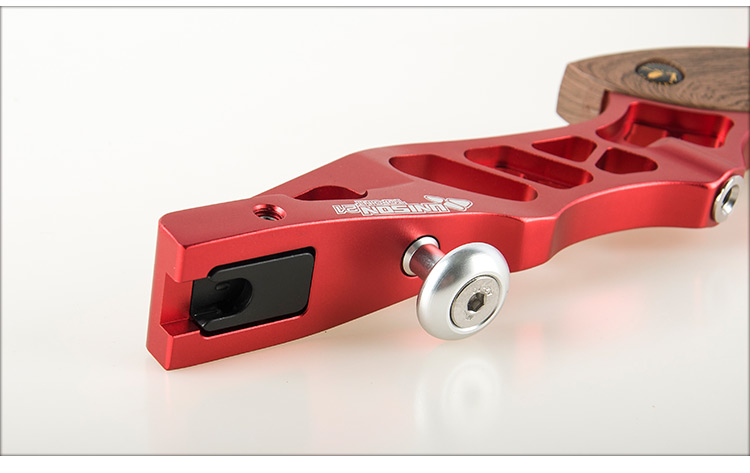

Limb Aligment

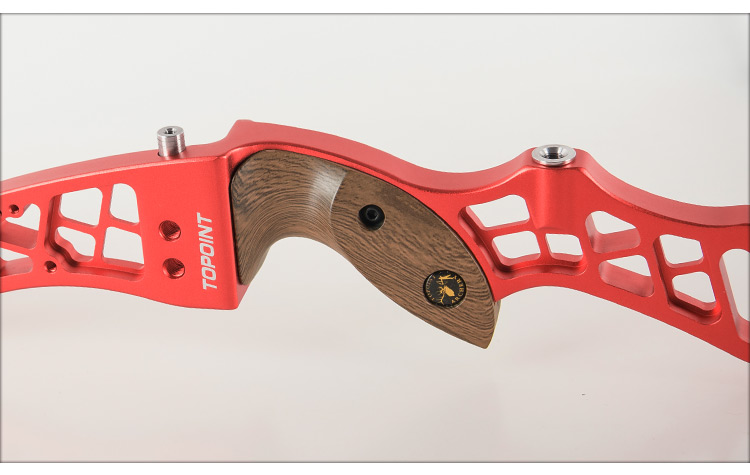

Special unique designed plastic grip

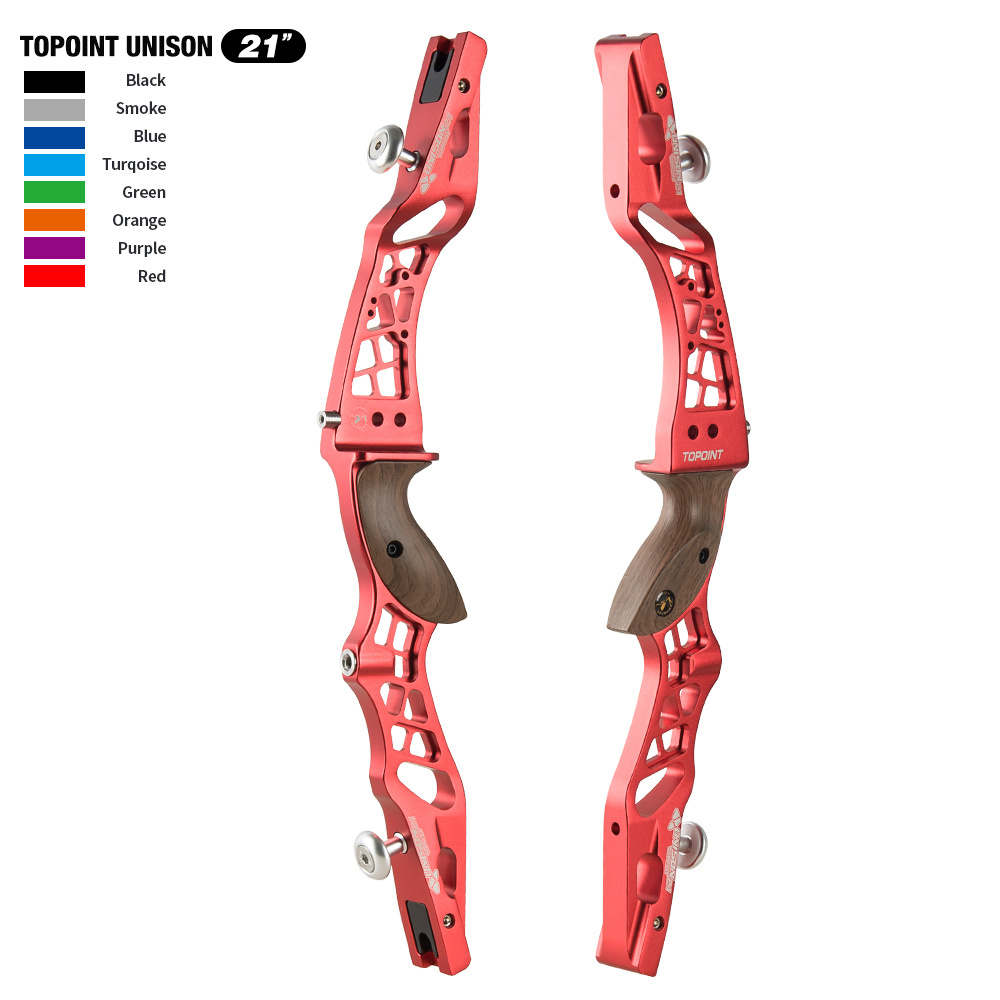

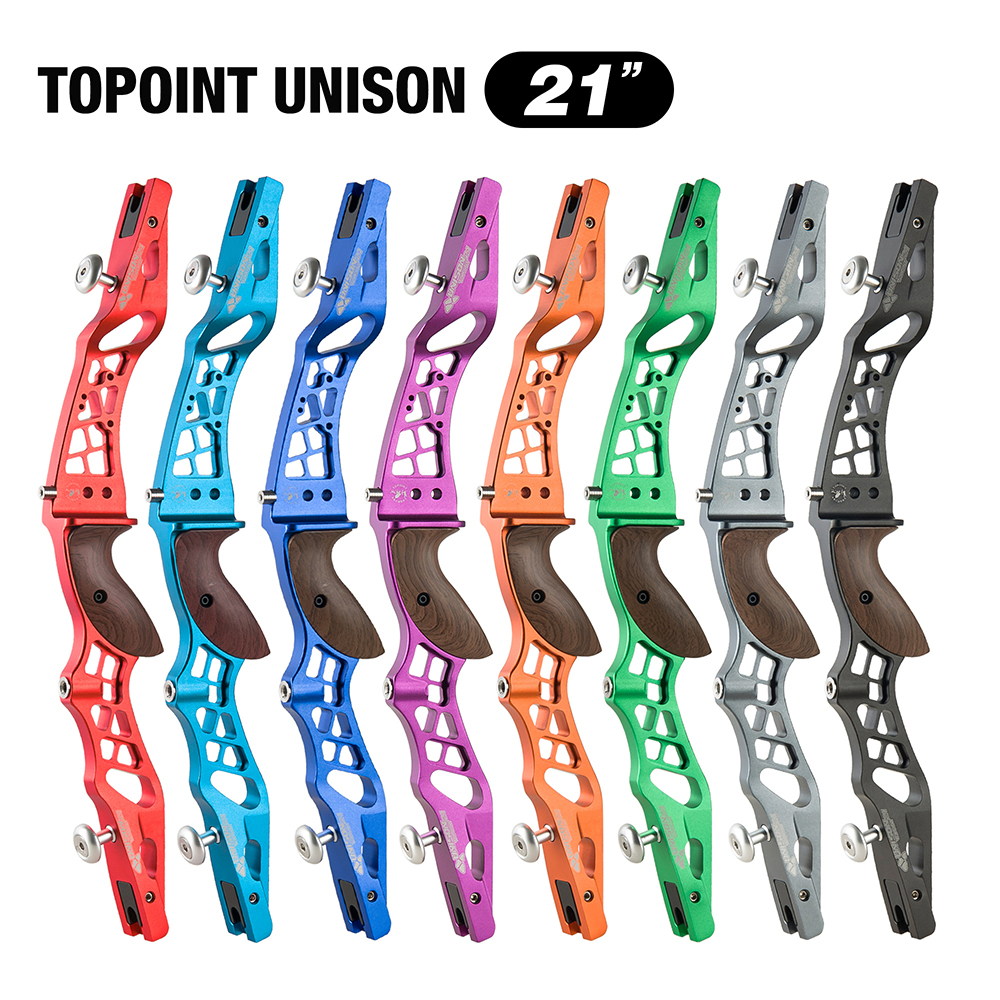

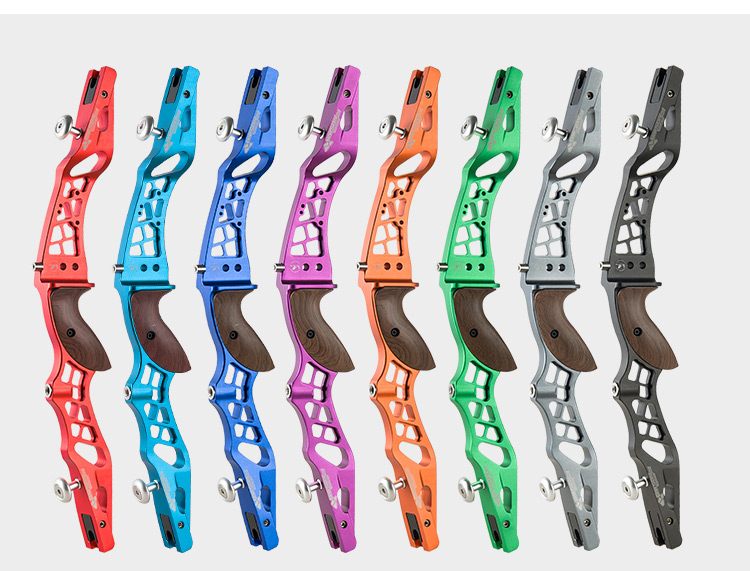

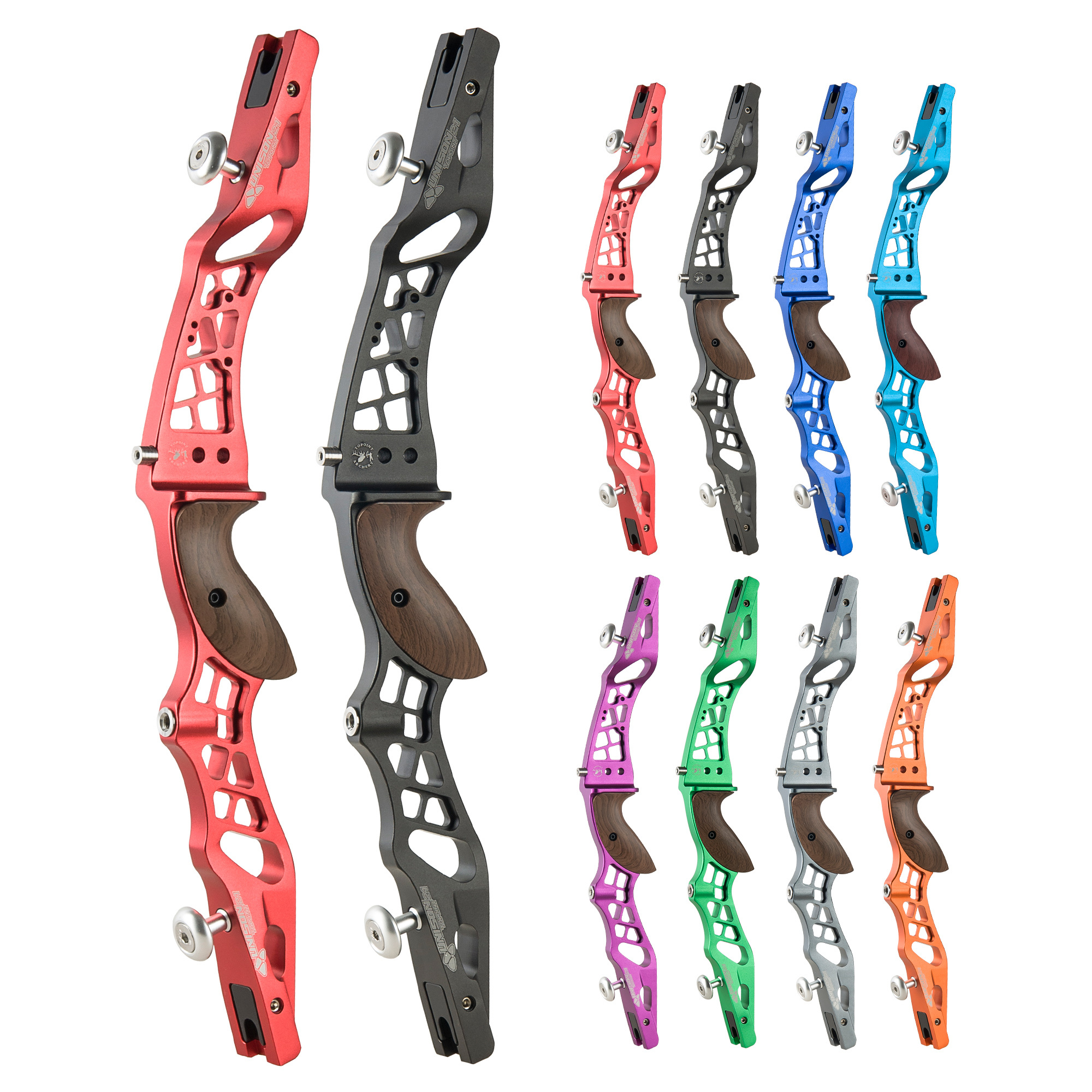

Red/ Turquoise/ Blue/ Purple/ Orange/ Green/ Smoke/ Black
Bow length: Riser and limb fitting
       In order to properly assemble the limbs with the riser, you will need to push the lLFdetent part from the limb into the appropriately sized slot on the riser until you hear a click.
TOPOINT Length ofriser Long Limbs Medium Limbs Short Limbs
25 inch 70" 68" 66"
23 inch 68" 66" 64"
Brace height
       Brace height is the horizontal distance between the grip and the bowstring. Changing the brace height does not affect the draw weight but can significantly affect bow performance. A higher brace height will decrease velocity while a lower brace height will increase velocity.
TOPOINT Length ofriser Long Limbs Medium Limbs Short Limbs
25 inch 22~23.5cm 21~22.5cm 20.5~22cm
23 inch 21~22.5cm 20~21.5cm 19.5~21cm

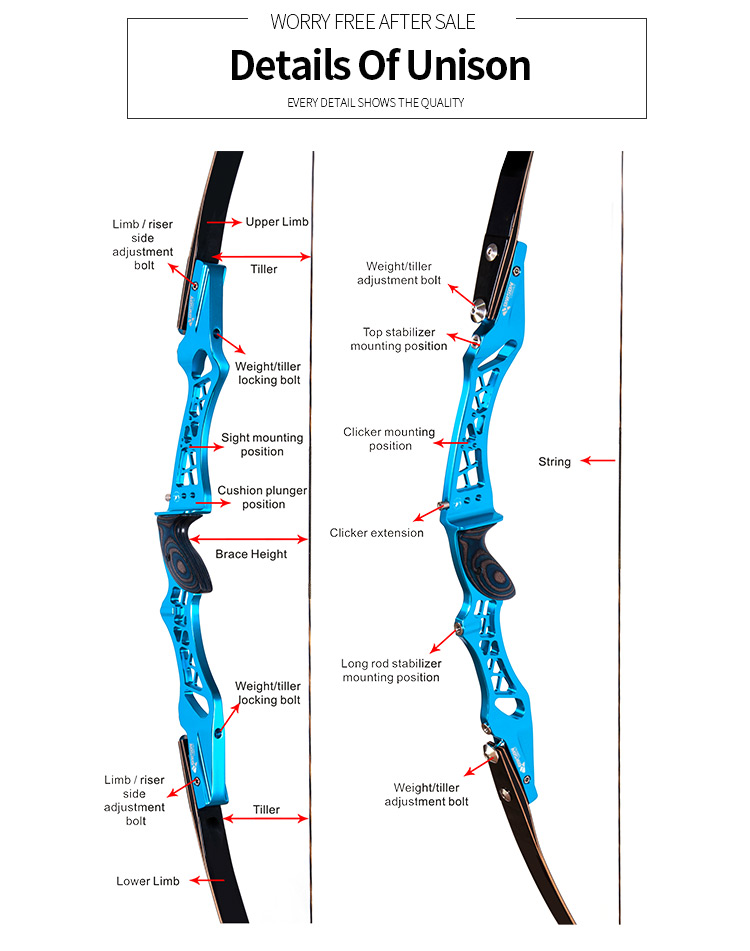

Tiller and draw weight adjustability
      To adjust the tiller and bow weight, you first need to loosen the weight/tiller locking bolt with the Allen key (photo 1). Use the Allen key to turn the weight/tiller adjustment boltclockwise to increase bow weight and counter clockwise to decrease bow weight(photo 2).
       When the correct poundage is set, tighten the locking bolt located at back of theriser (photol). It is best to adjust tiller and weight while the bow is unstrung.
Tiller and draw weight adjustability
         When adjusting the tillerand bow weight, do not exceed the recommended turns outfrom the maximum position (photo 3) .Maximum opening: 4 complete turns starting from closed position (photo 4).
Limb /riser alignment
        Before adjusting the alignment of the riser, first check the center string position towards the riser. You can adjust the center shot without unstringing your bow.1. Unscrew both locking screws (photo 5)2. To adjust limb position to the left, loosen the inner left side bolt (photo 6) and tightenthe right sided one till the limb is centered.3. Once the limb is centered, retighten the left side bolt (photo 6)4. Fasten both locking screws (photo 5)
