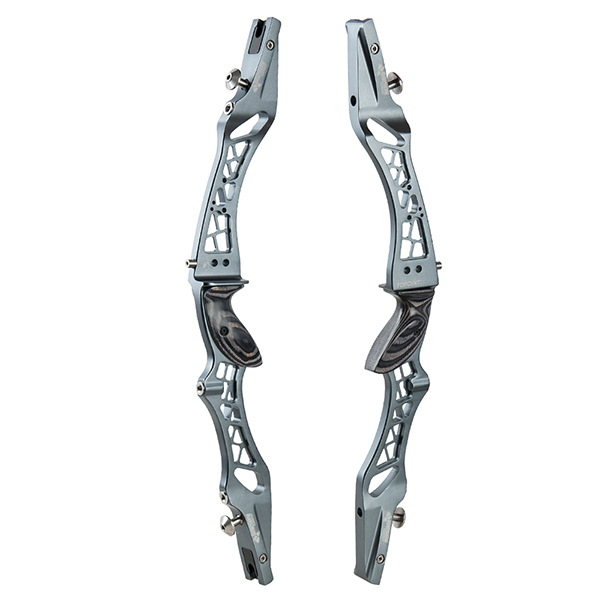

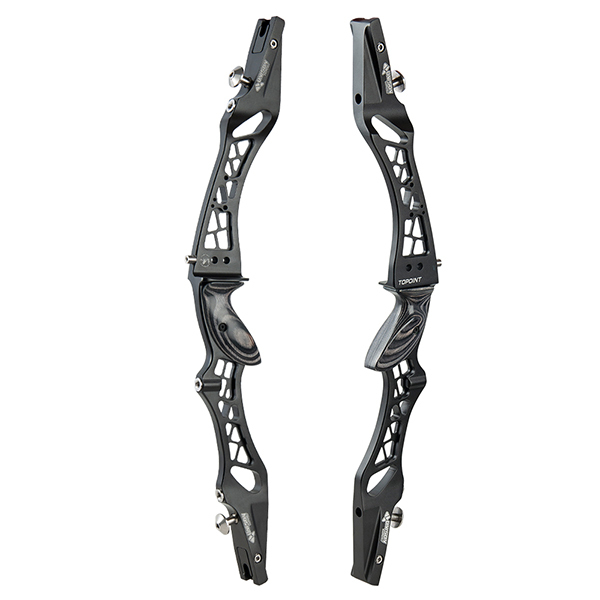

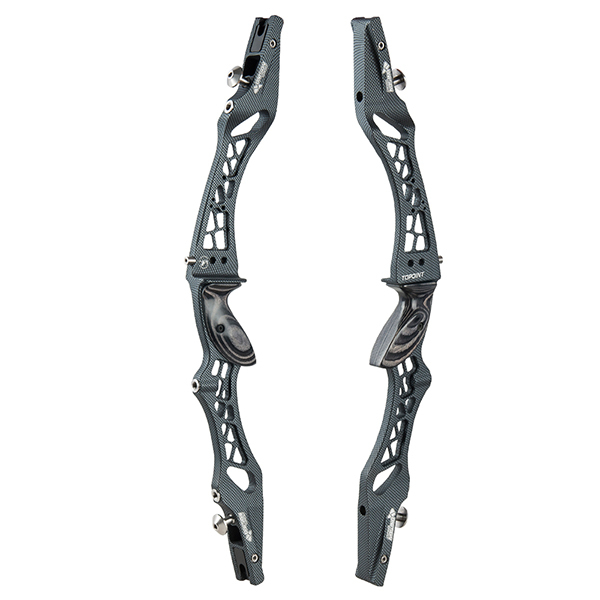

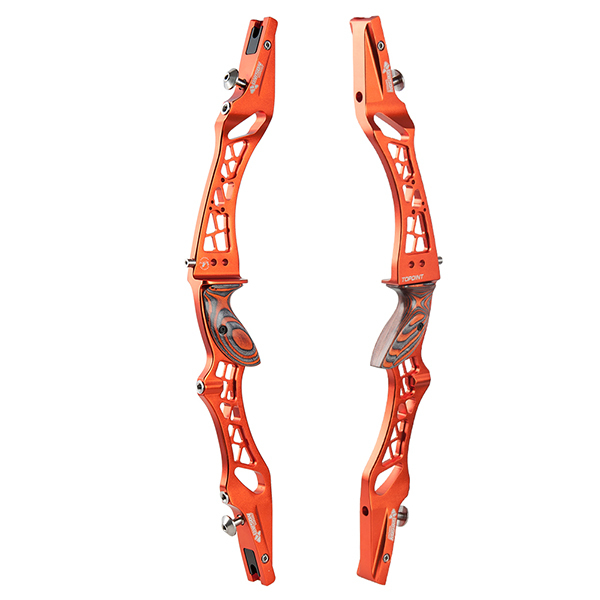

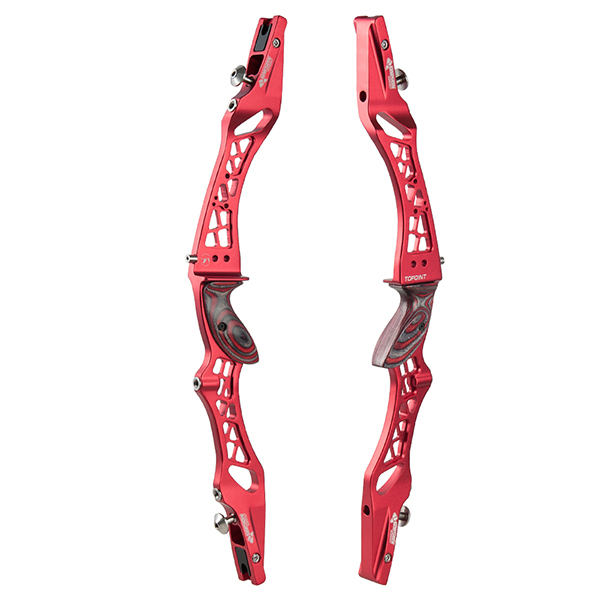

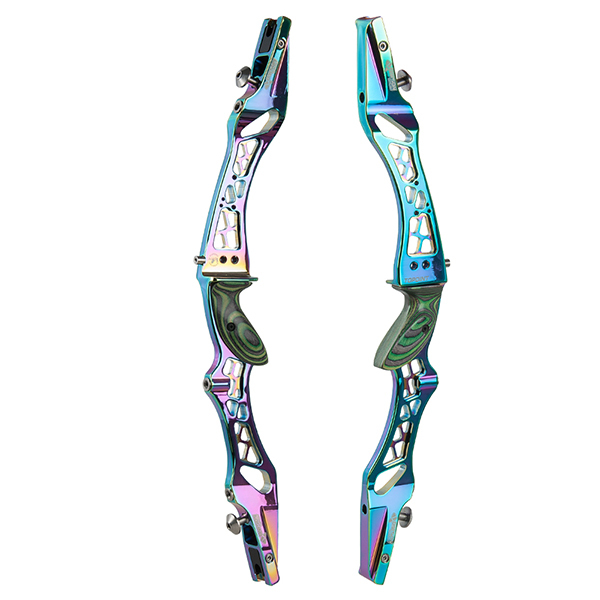

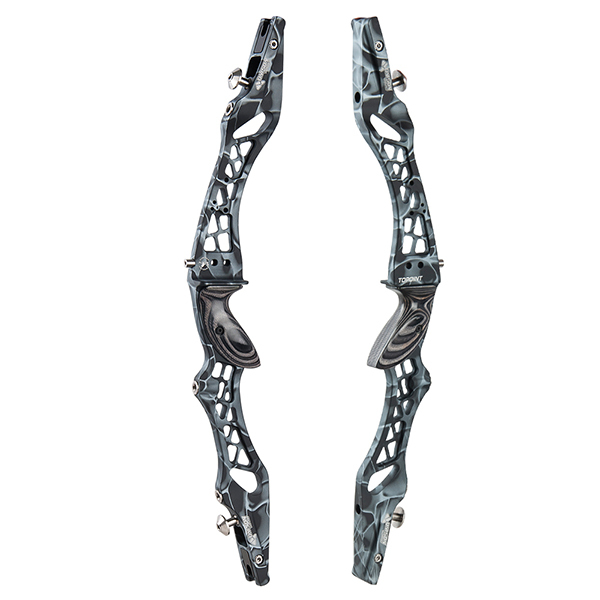

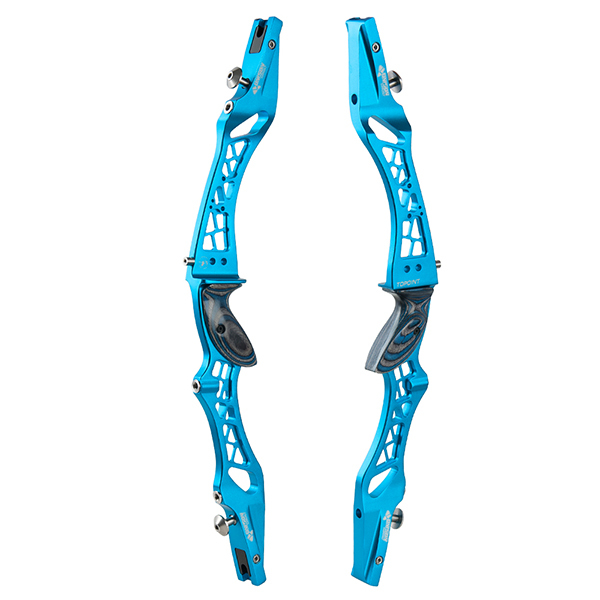

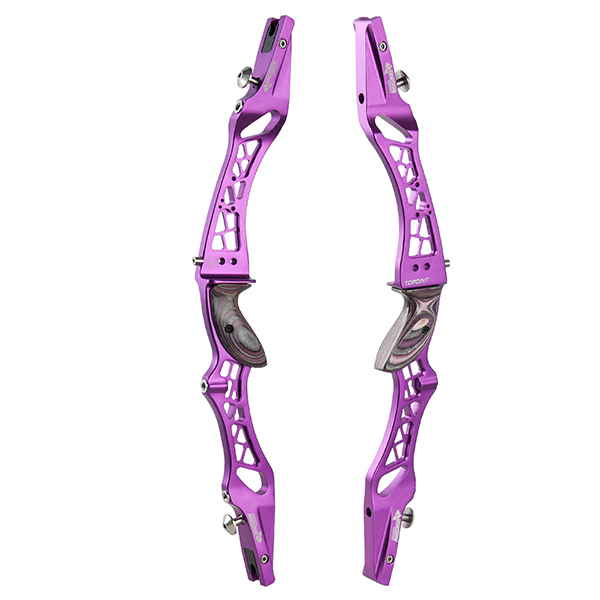

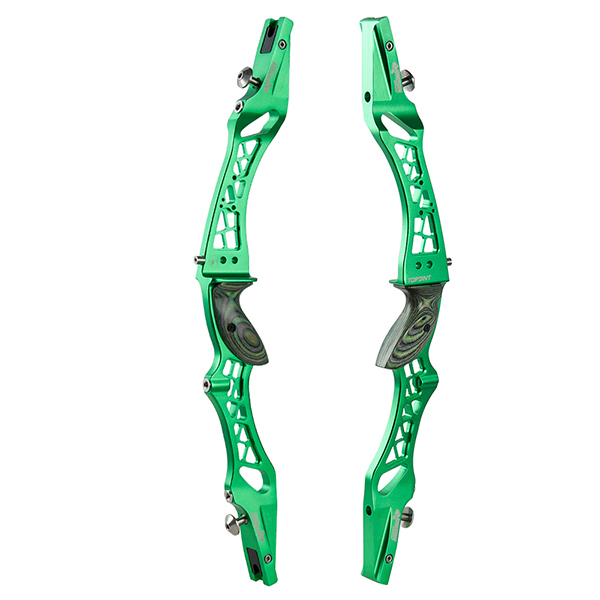

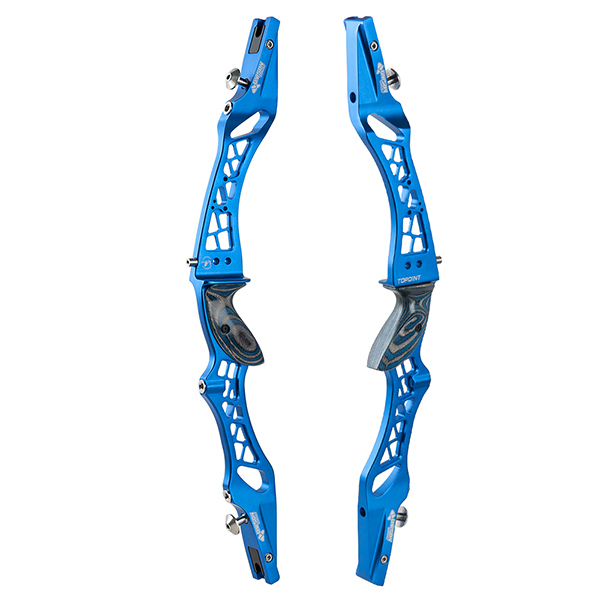

TOPOINT ARCHERY UNISON Aluminum CNC Milling Recurve Bow Riser 25" Targeting Takedown Recurve Bow Riser Right Handed ILF Device for Archery Bow Targeti

CNC Machining Center High accuracy Machined Anodized Aluminium Alloy 6061-T6,Wooden Grip Same Color With The Riser
Special alignment system,prevent the screw loosening design,could fit the Limbs degree angle,protect the limbs contacting part, for better
4 Review(s) Sold:20
Price:
USD
$199.99
$299.99
  • Length:
    25"
  • Color/Package:
    Red
    Turqoise
    Blue
    Orange
    Green
    Smoke
    Black
    Ghost
    Tactical
    Spectra
    Purple
  • Hand:
    RH
    LH
Quantity:
-
+
(200 available)
Please select the information you wantX
Add to Favorite Items
  • Description
  • Reviews(4)
Product name Recurve Bow Riser  TOPOINT UNISON 25"
Brand TOPOINT
Material  Aluminum CNC 6061-T651

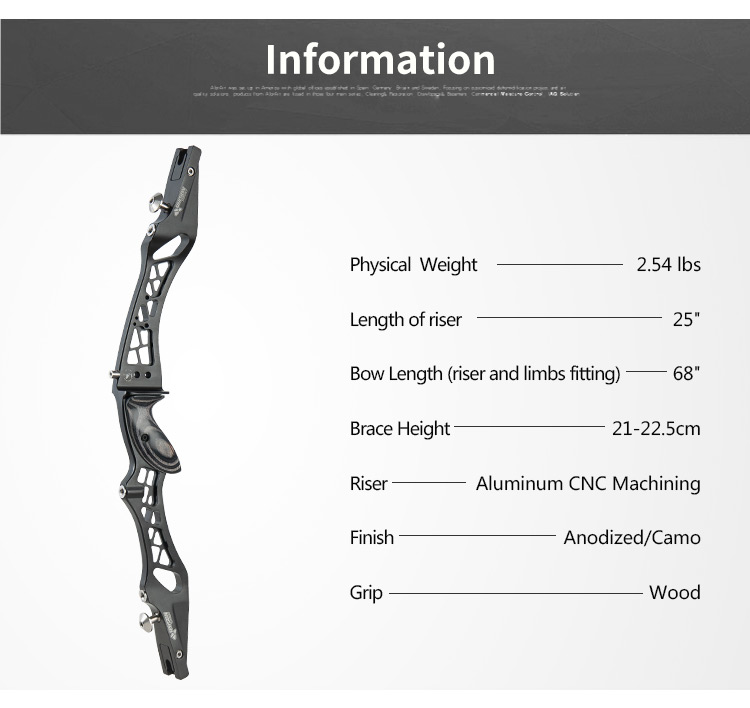

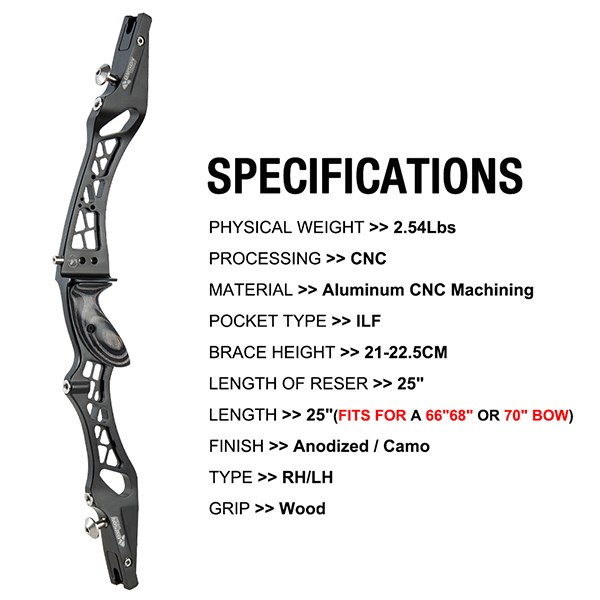

Specification PHYSICALWEIGHT >> 2.54Lbs
PROCESSING >> CNC
MATERIAL>> Aluminum CNC Machining
POCKETTYPE >>ILF
BRACEHEIGHT >> 21-22.5CM
TYPE>>RH/LH
LENGTH >> 25"(FITS FORA 66"  68” OR 70" BOw)
FINISH>>Anodized/Camo
GRIP >>Special unique designed wooden grip

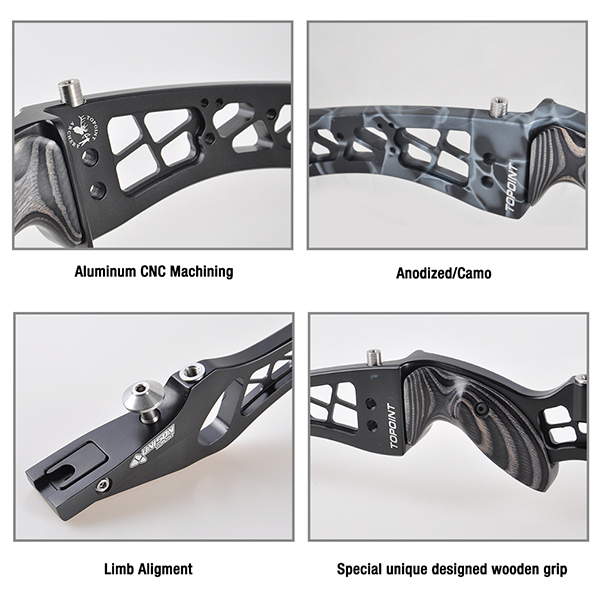

  CNC Machining Center High accuracy Machined Anodized Aluminium Alloy 6061-T6,Wooden Grip Same Color With The Riser
Special alignment system,prevent the screw loosening design,could fit the Limbs degree angle,protect the limbs contacting part, for better

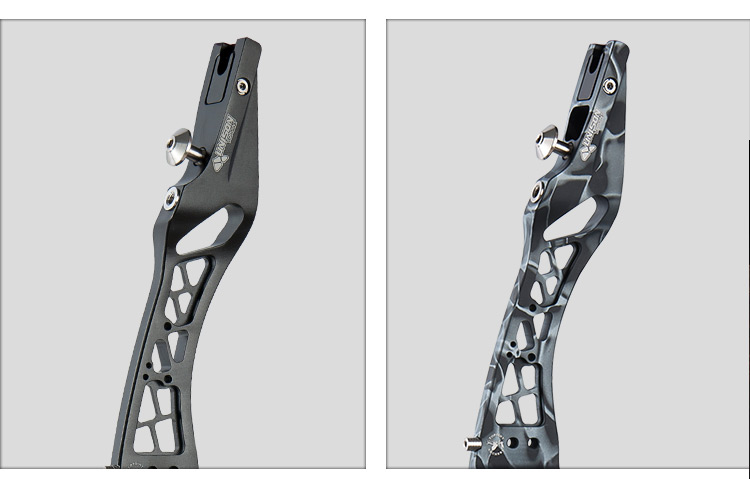

FINISH >> Anodized / Camo

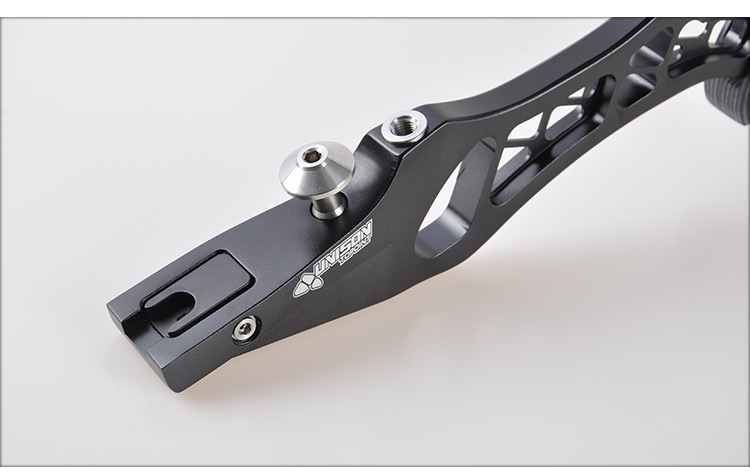

Limb Aligment

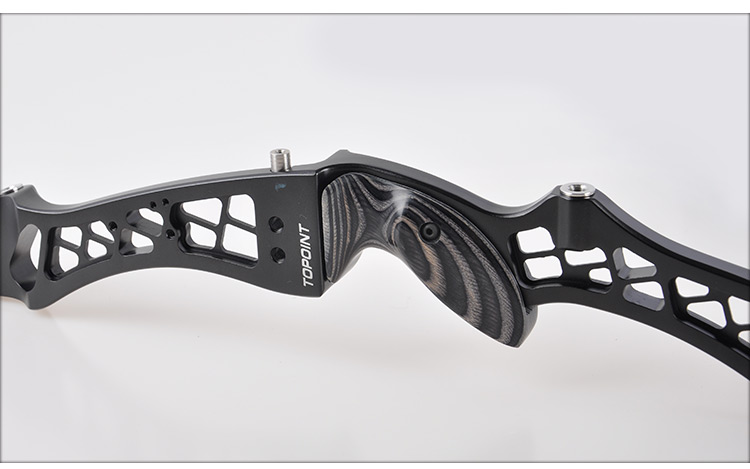

Special unique designed wooden grip

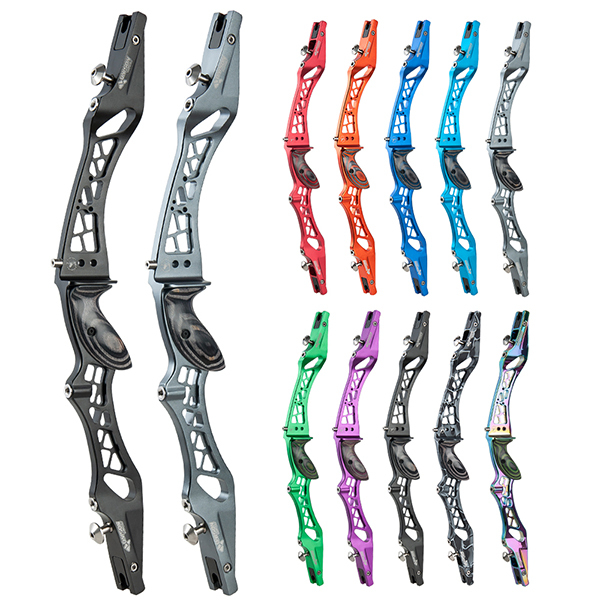

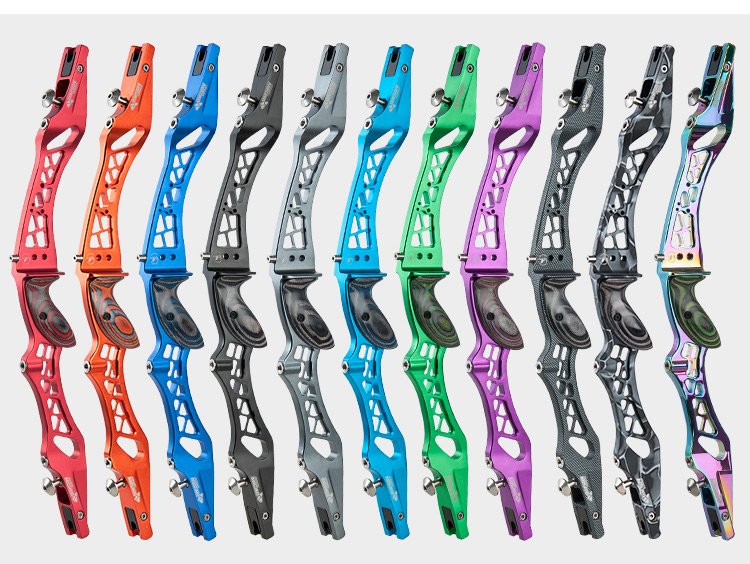

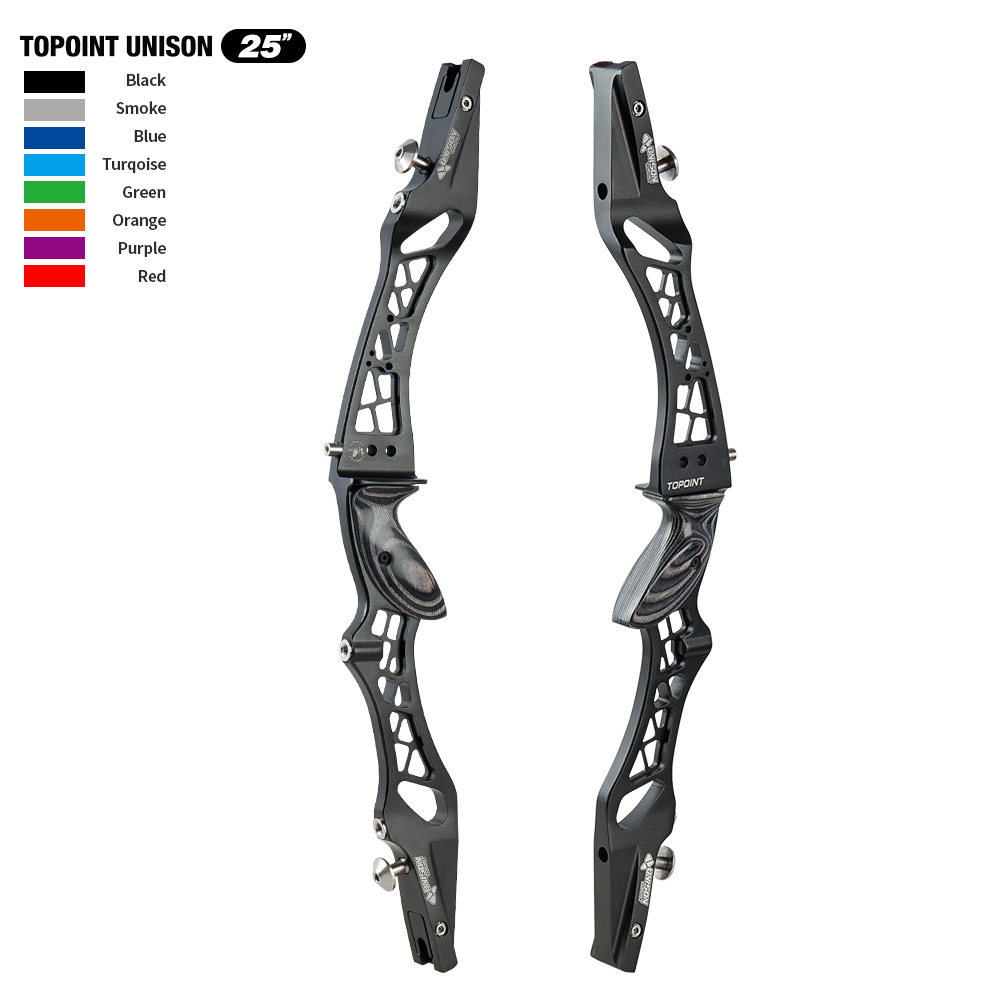

Red/ Orange/ Blue/ Black/ Smoke/ Turquoise/ Green/ Purple/ Tactical/ Ghost/ Spectra
Bow length: Riser and limb fitting
       In order to properly assemble the limbs with the riser, you will need to push the lLFdetent part from the limb into the appropriately sized slot on the riser until you hear a click.
TOPOINT Length ofriser Long Limbs Medium Limbs Short Limbs
25 inch 70" 68" 66"
23 inch 68" 66" 64"
Brace height
       Brace height is the horizontal distance between the grip and the bowstring. Changing the brace height does not affect the draw weight but can significantly affect bow performance. A higher brace height will decrease velocity while a lower brace height will increase velocity.
TOPOINT Length ofriser Long Limbs Medium Limbs Short Limbs
25 inch 22~23.5cm 21~22.5cm 20.5~22cm
23 inch 21~22.5cm 20~21.5cm 19.5~21cm
Tiller and draw weight adjustability
      To adjust the tiller and bow weight, you first need to loosen the weight/tiller locking bolt with the Allen key (photo 1). Use the Allen key to turn the weight/tiller adjustment boltclockwise to increase bow weight and counter clockwise to decrease bow weight(photo 2).
       When the correct poundage is set, tighten the locking bolt located at back of theriser (photol). It is best to adjust tiller and weight while the bow is unstrung.
Tiller and draw weight adjustability
         When adjusting the tillerand bow weight, do not exceed the recommended turns outfrom the maximum position (photo 3) .Maximum opening: 4 complete turns starting from closed position (photo 4).
Limb /riser alignment
        Before adjusting the alignment of the riser, first check the center string position towards the riser. You can adjust the center shot without unstringing your bow.1. Unscrew both locking screws (photo 5)2. To adjust limb position to the left, loosen the inner left side bolt (photo 6) and tightenthe right sided one till the limb is centered.3. Once the limb is centered, retighten the left side bolt (photo 6)4. Fasten both locking screws (photo 5)
