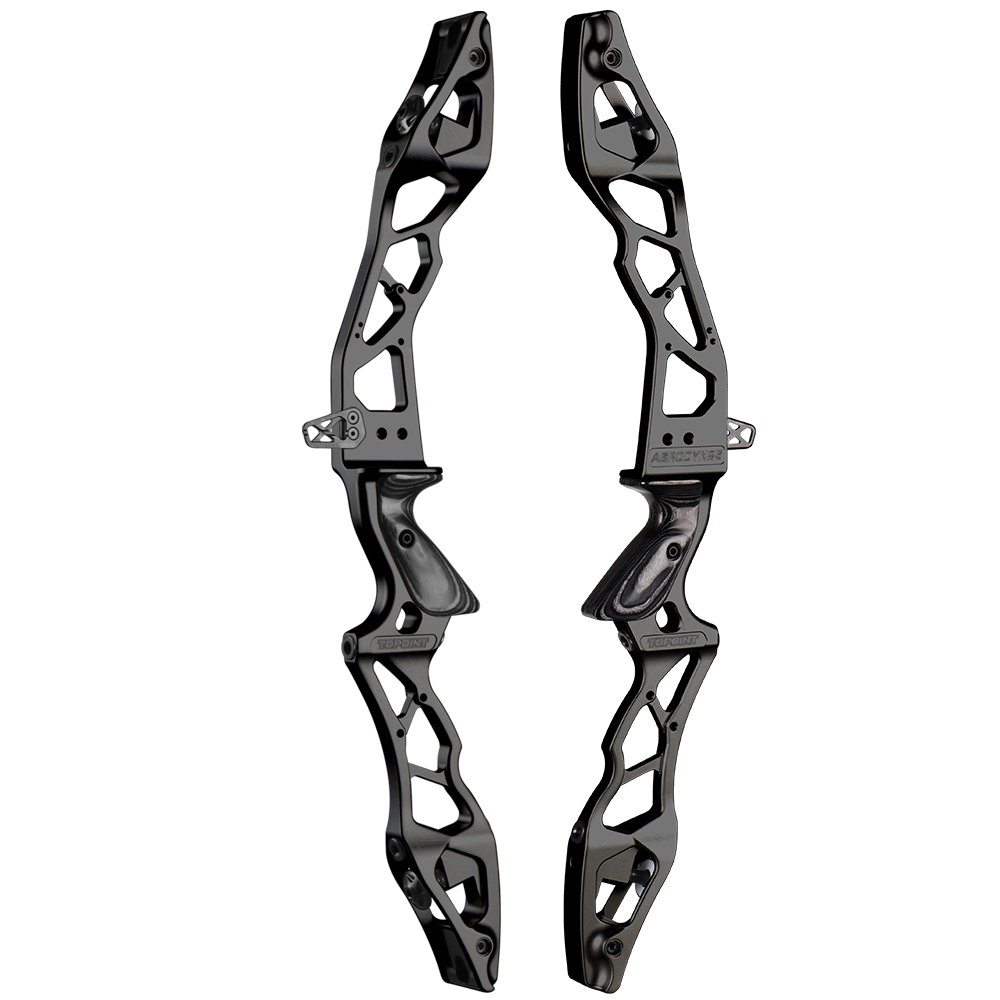

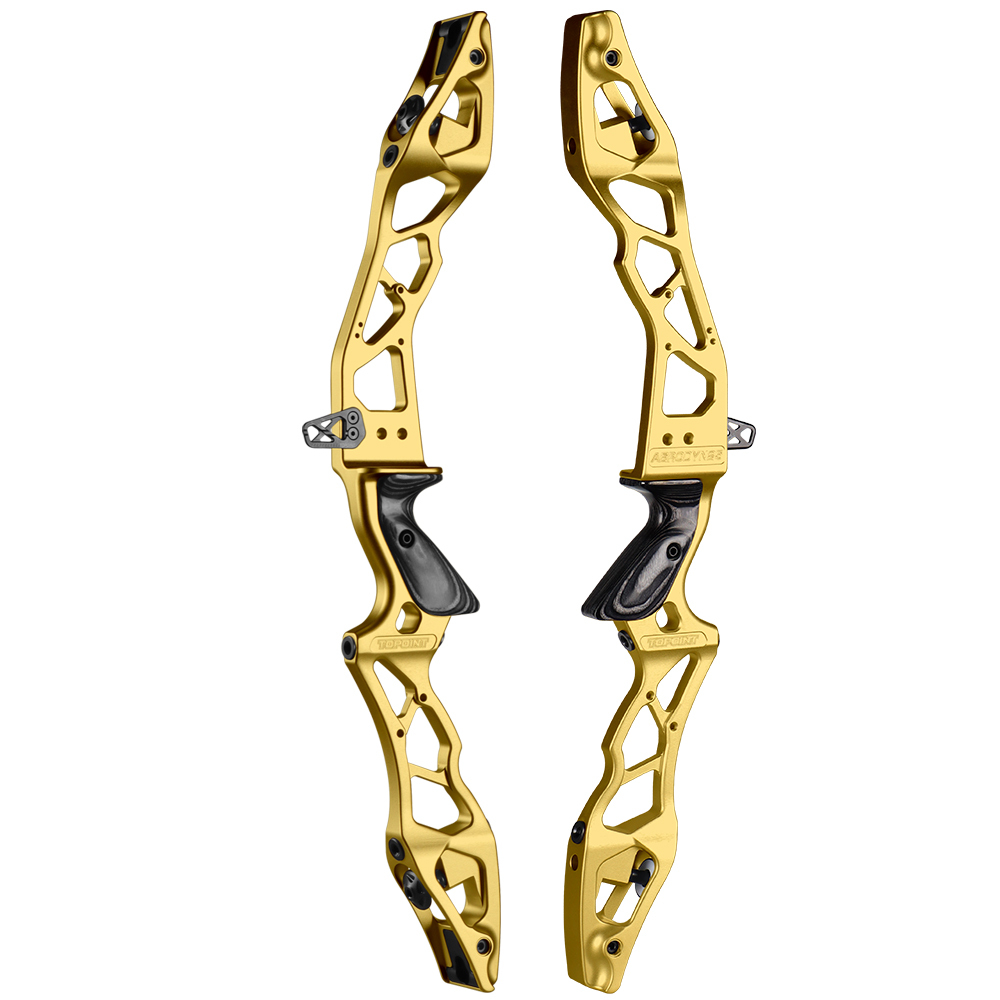

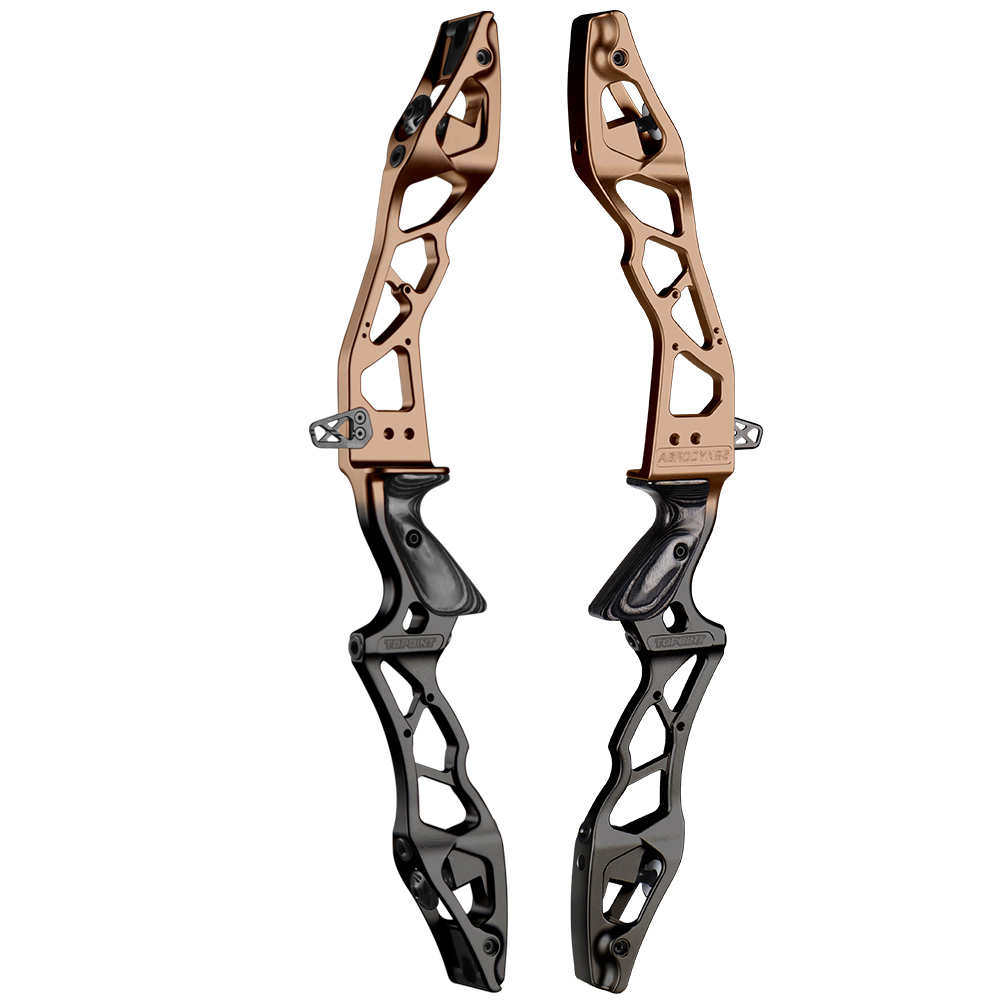

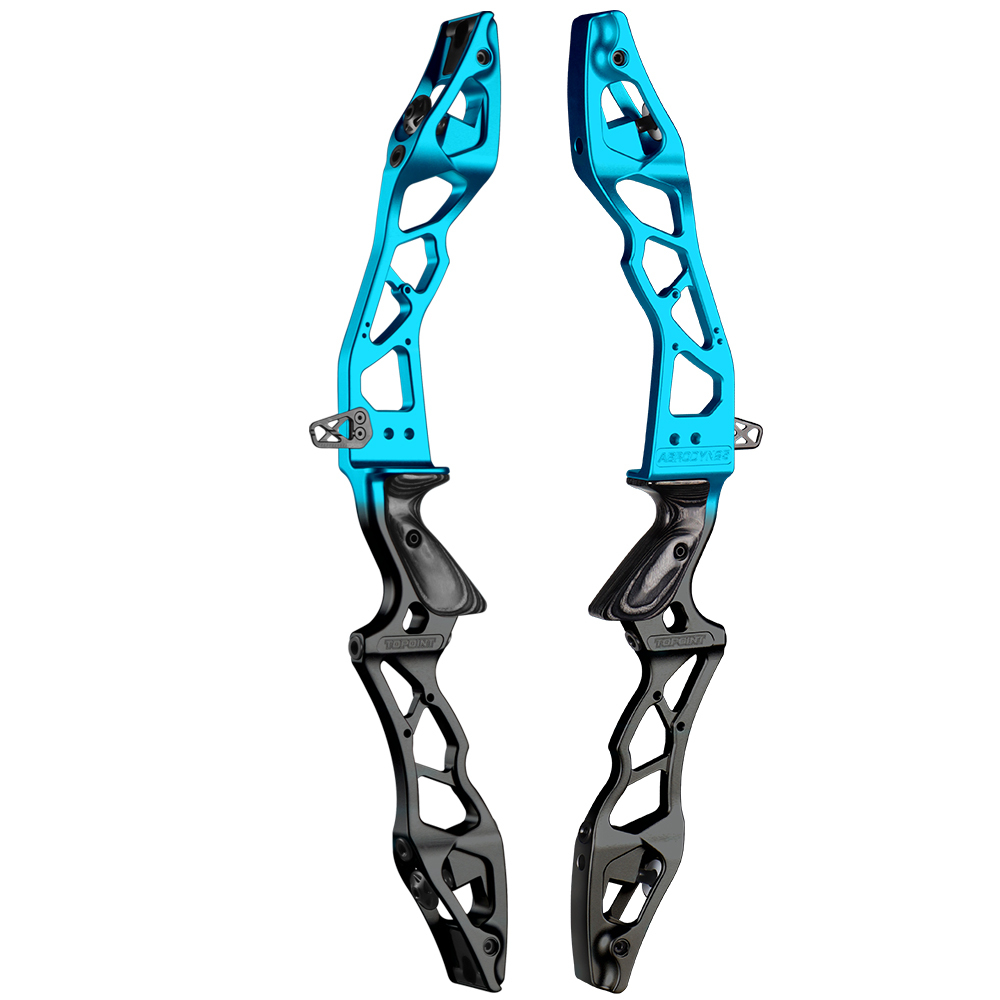

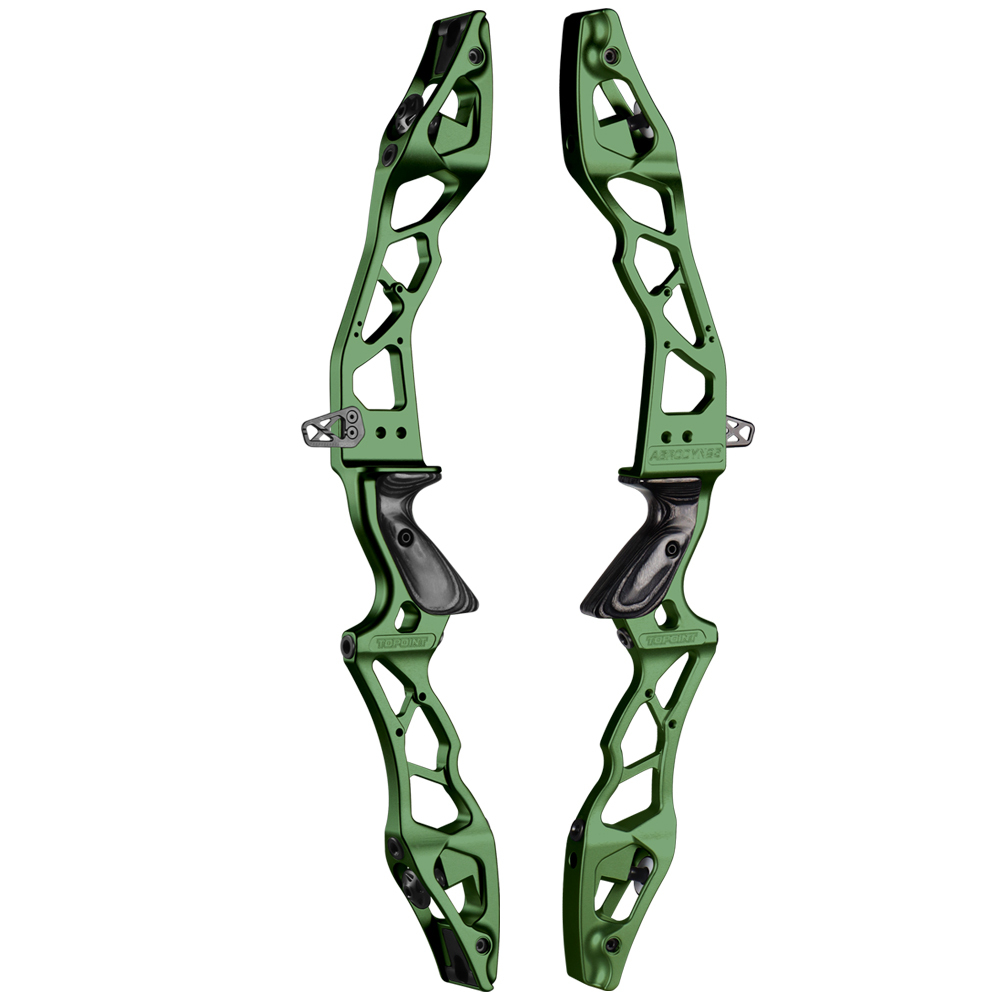

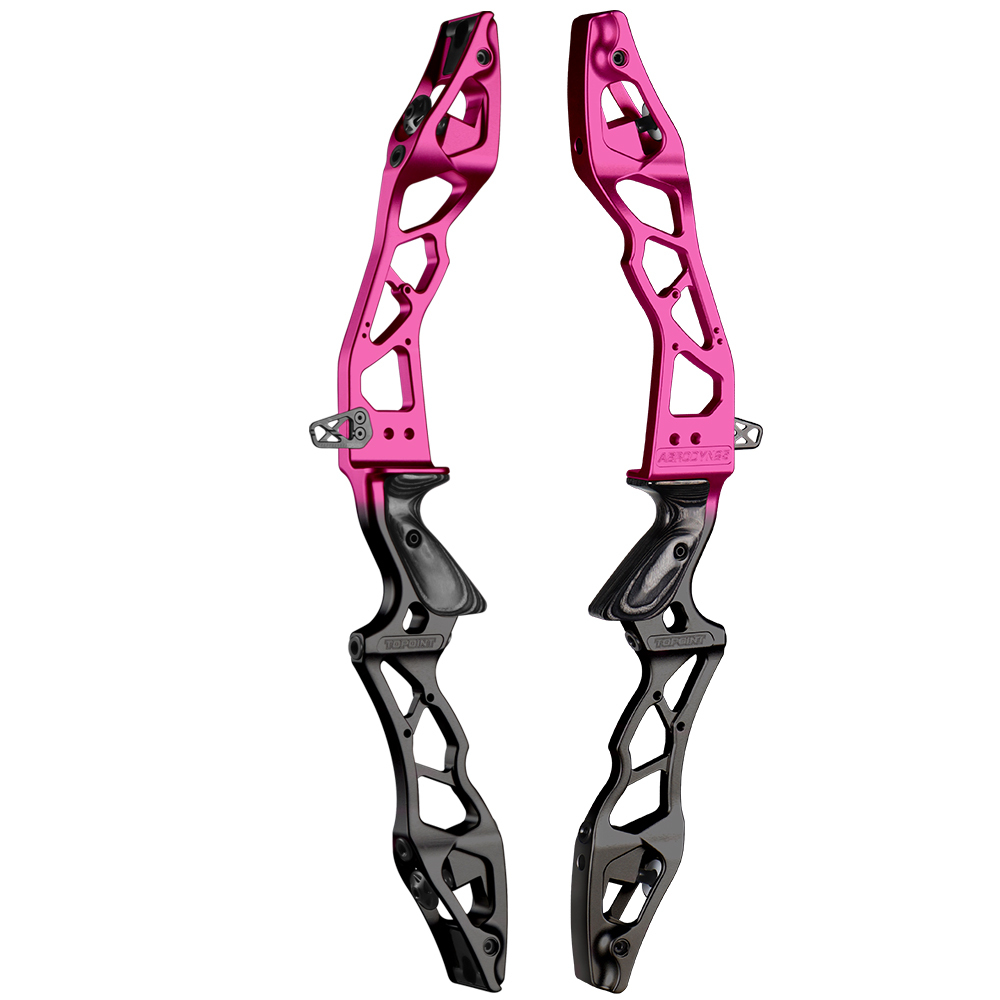

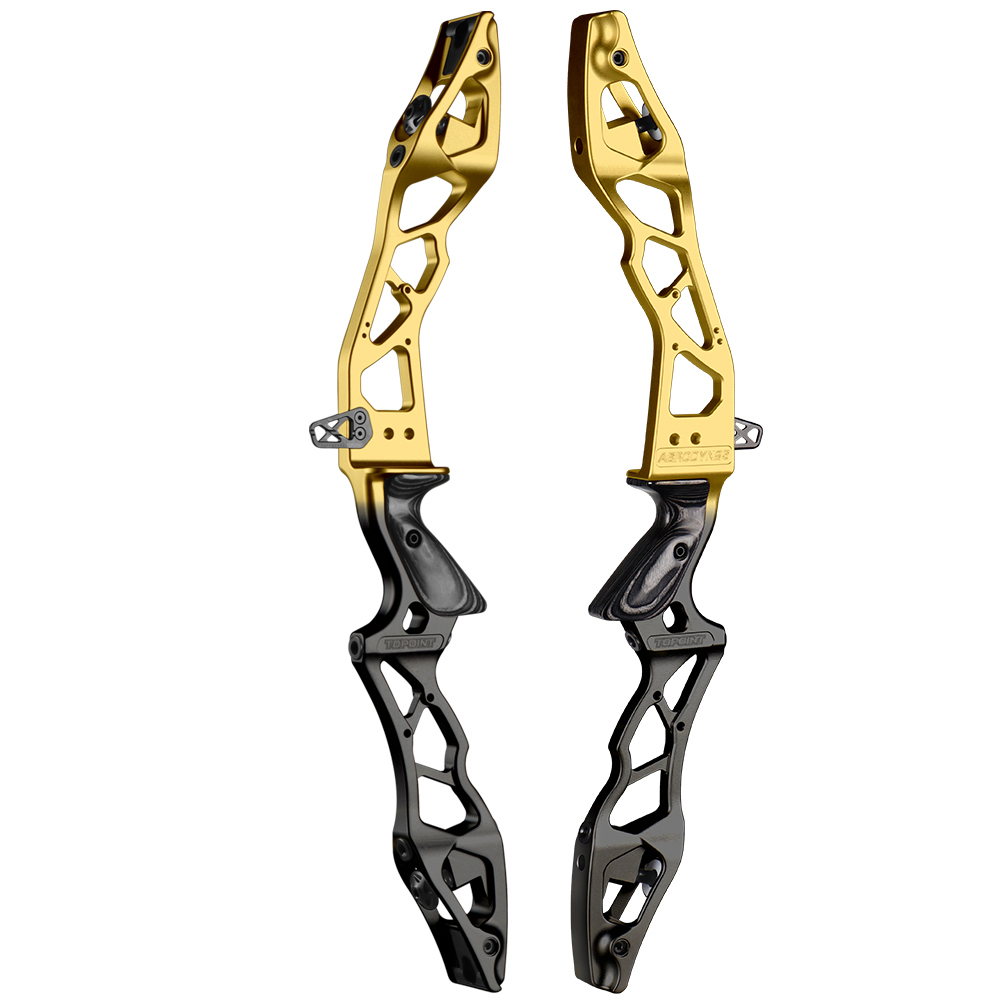

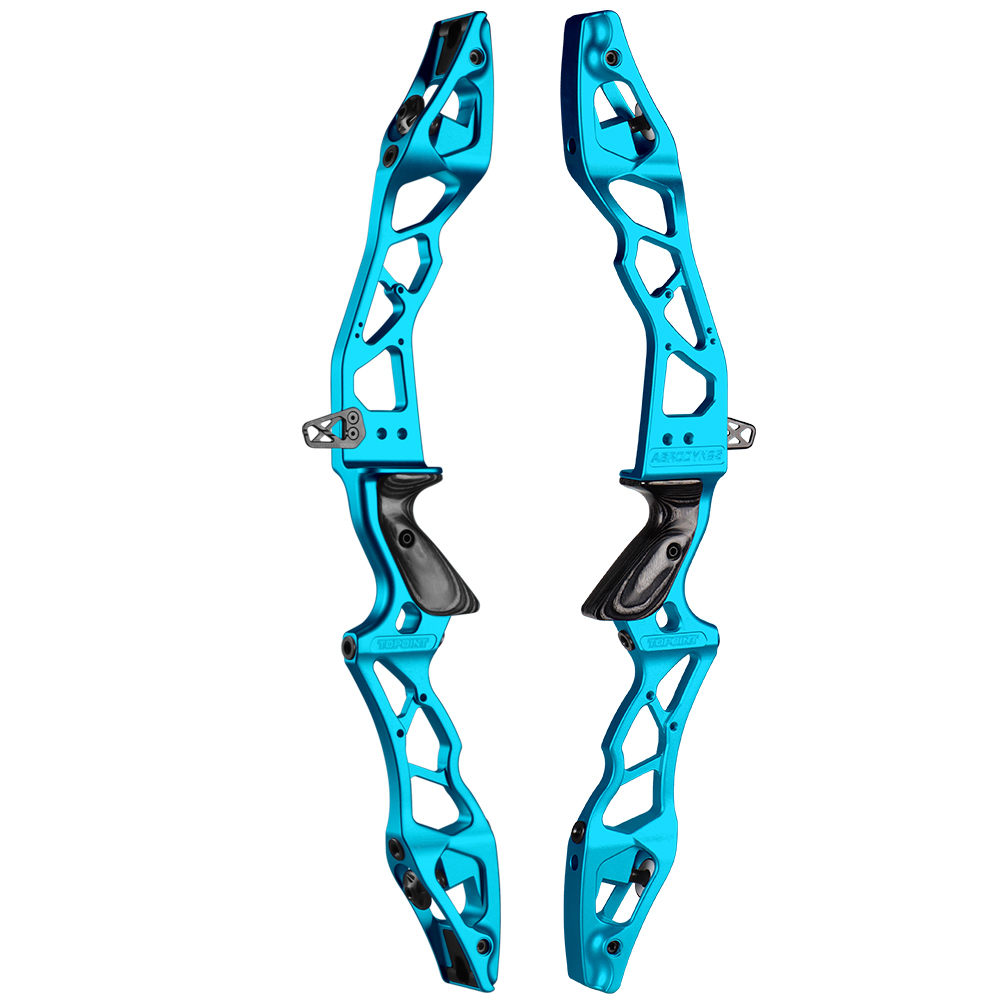

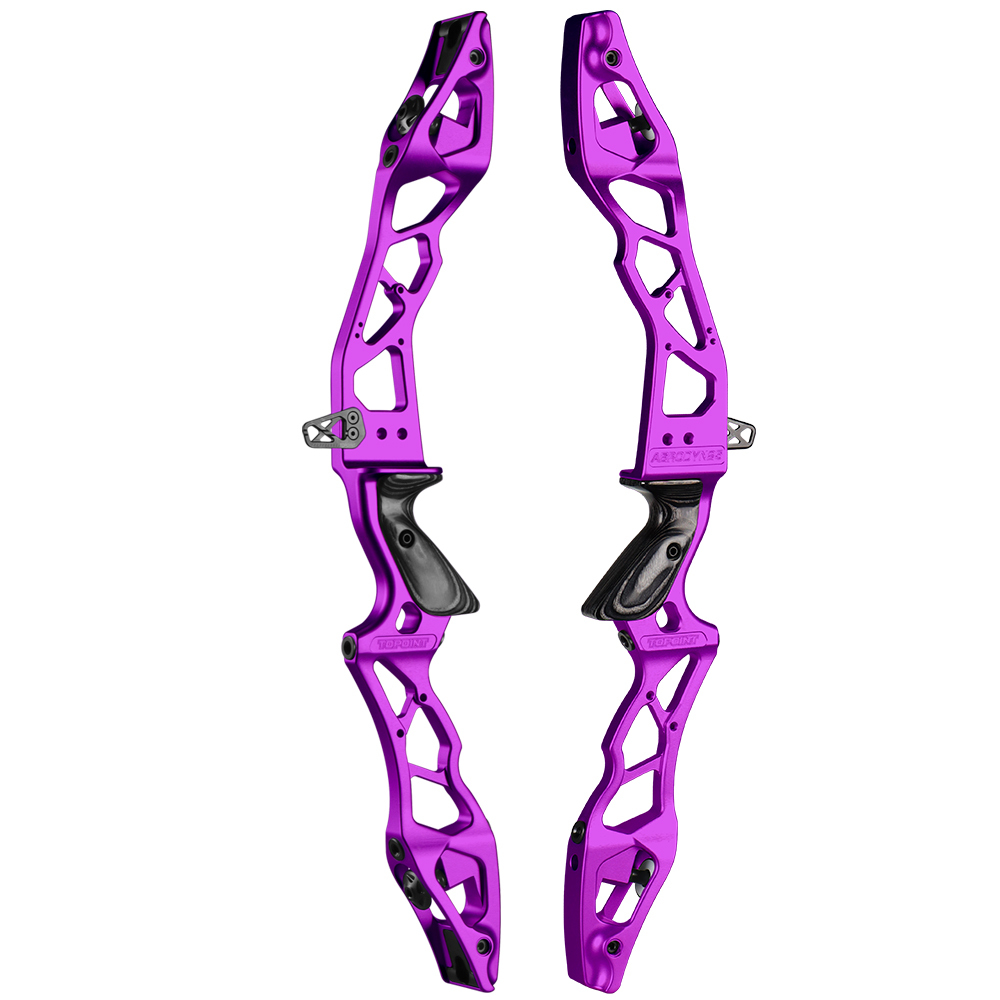

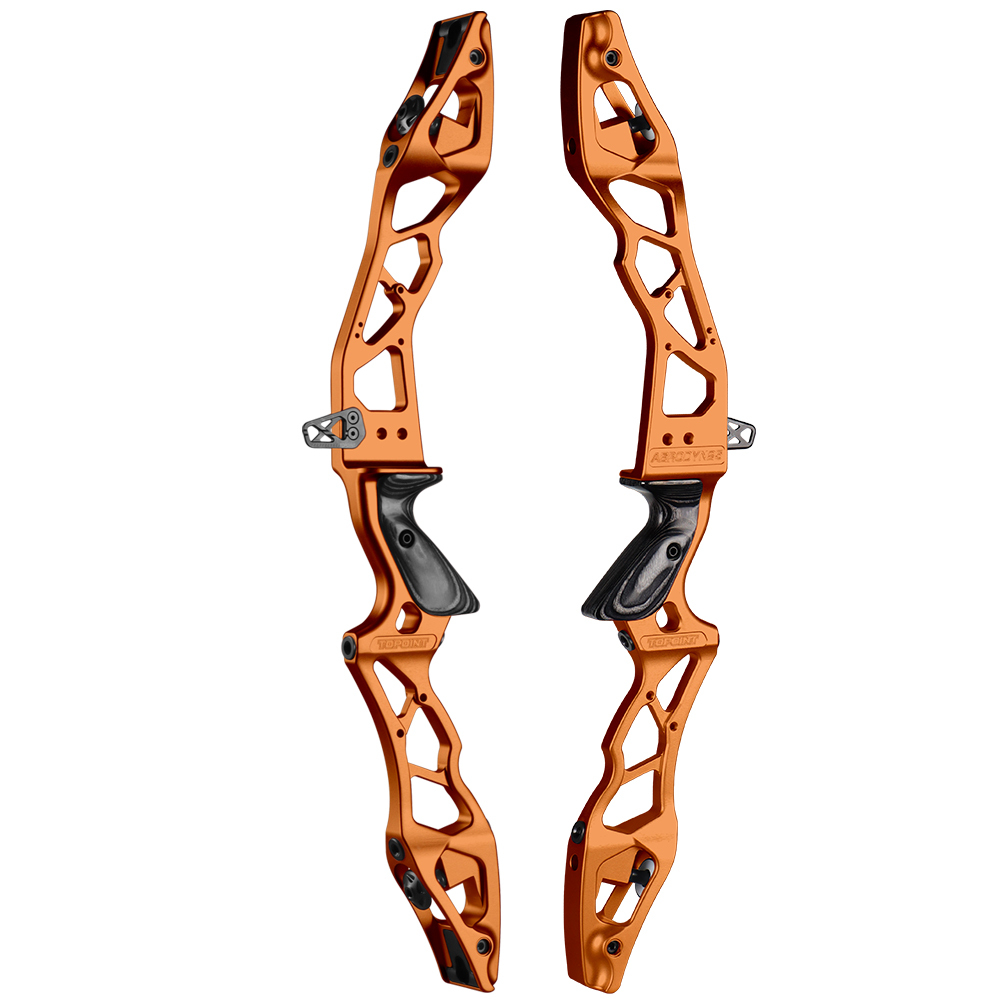

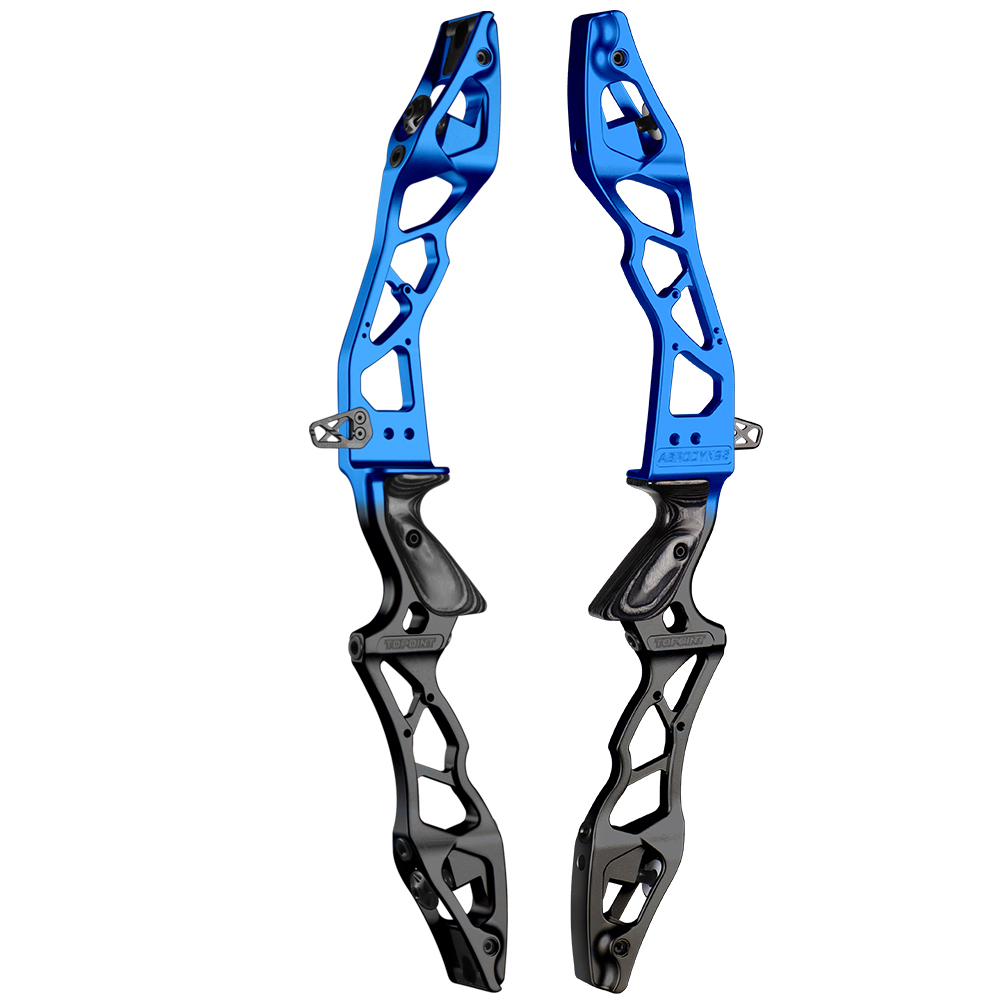

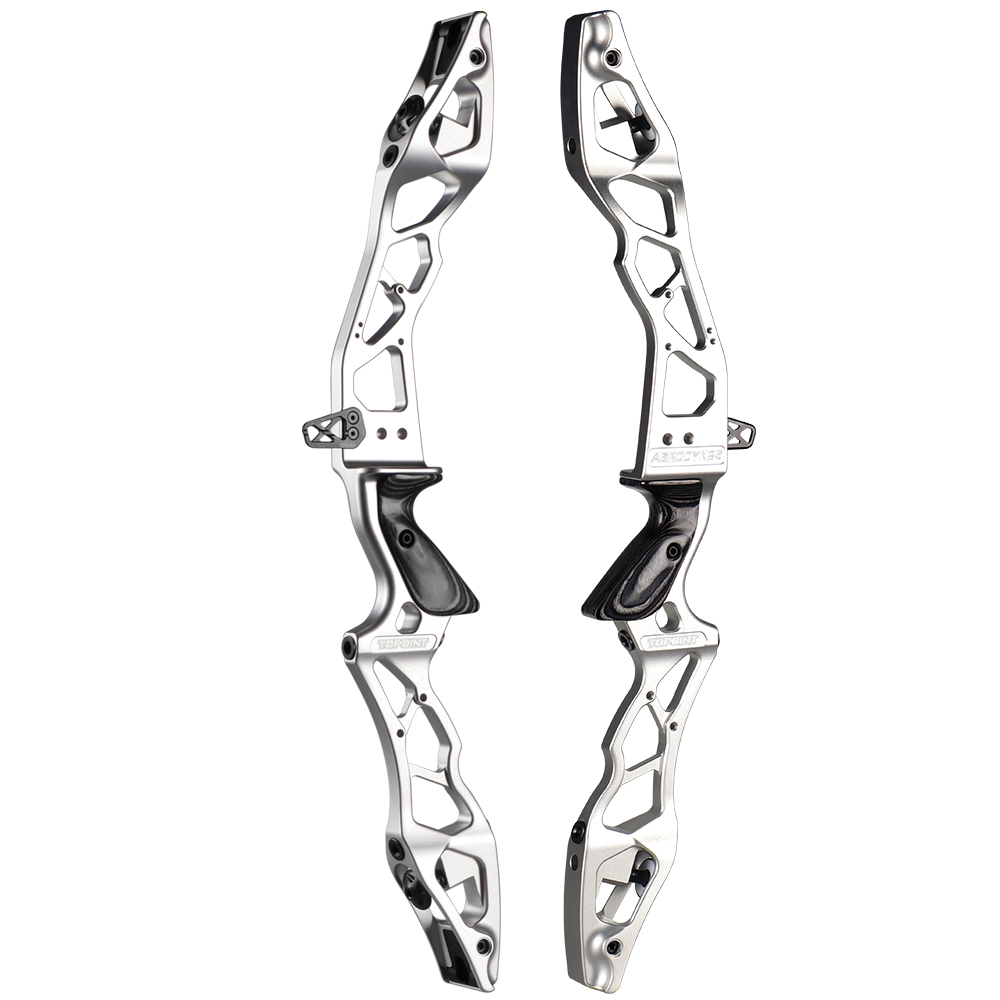

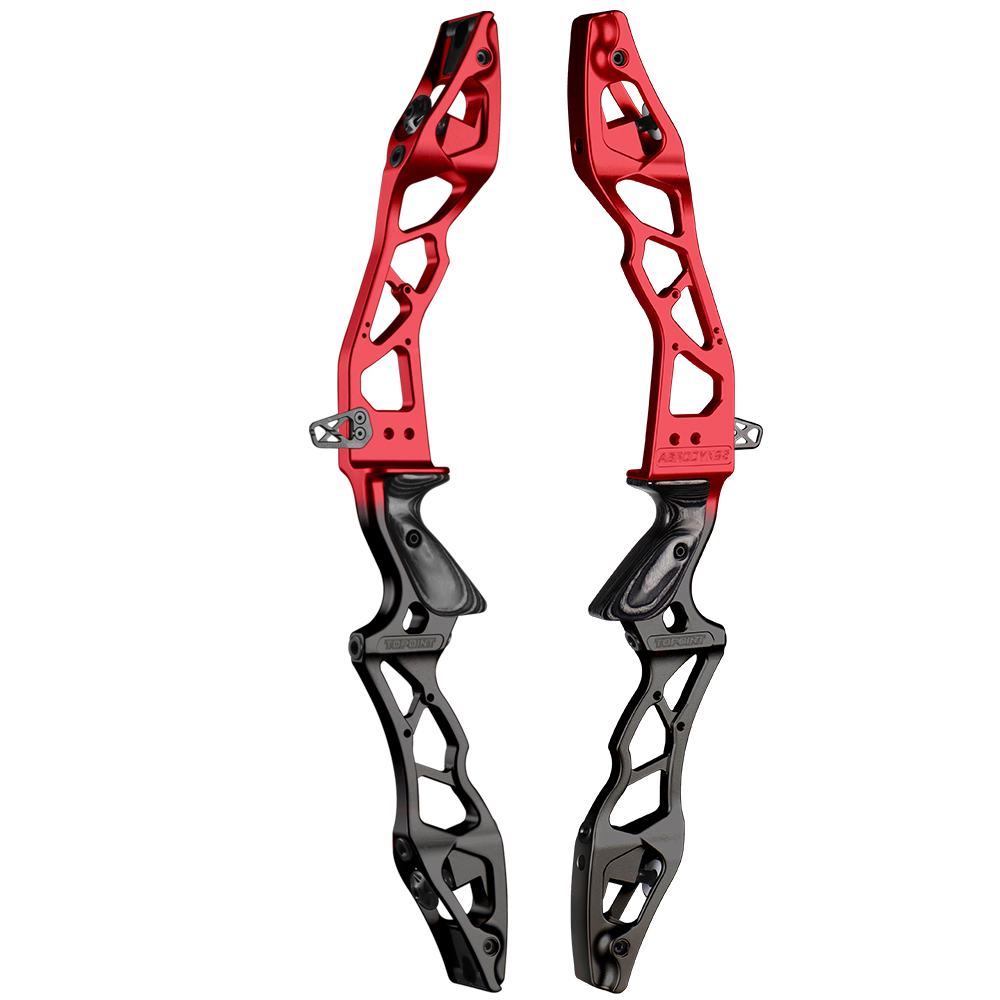

TOPOINT ARCHERY AERODYN 25" ILF Device Recurve Bow Riser Aluminum Alloy CNC 6061 RH / LH for Outdoor Archery Shooting

Aluminum alloy bow riser,light weight, scientific weight distribution of upper and lower bow pieces, enhance stability effectively when you aiming during the shooting
Special alignment system,prevent the screw loosening design,could fit the Limbs degree
Sold:5
Price:
USD
$299.99
$399.99
  • Length:
    25"
  • Color/Package:
    Black
    Smoke
    Red
    Blue
    Green
    Turqoise
    Orange
    Purple
    Bronze
    Pink
    Golden
    Arm Green
    Silver
    Purple-Black
    Turquoise-Black
    Blue-Black
    Green-Black
    Bronze-Black
    Orange-Black
    Smoke-Black
    Red-Black
    Arm green-Black
    Gold-Black
    Pink-Black
  • Hand:
    RH
    LH
Quantity:
-
+
(477 available)
Please select the information you wantX
  • Description
  • Reviews

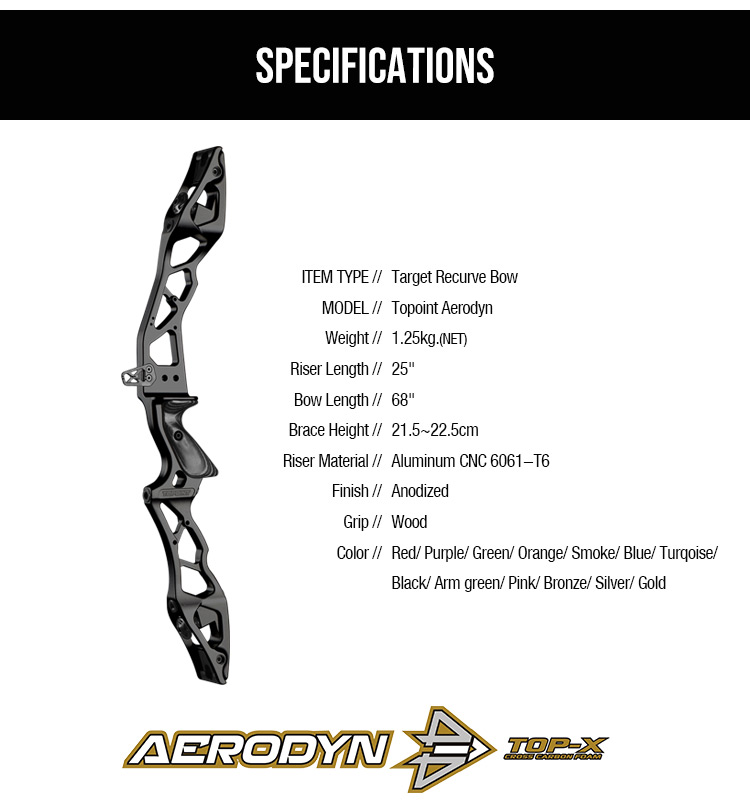

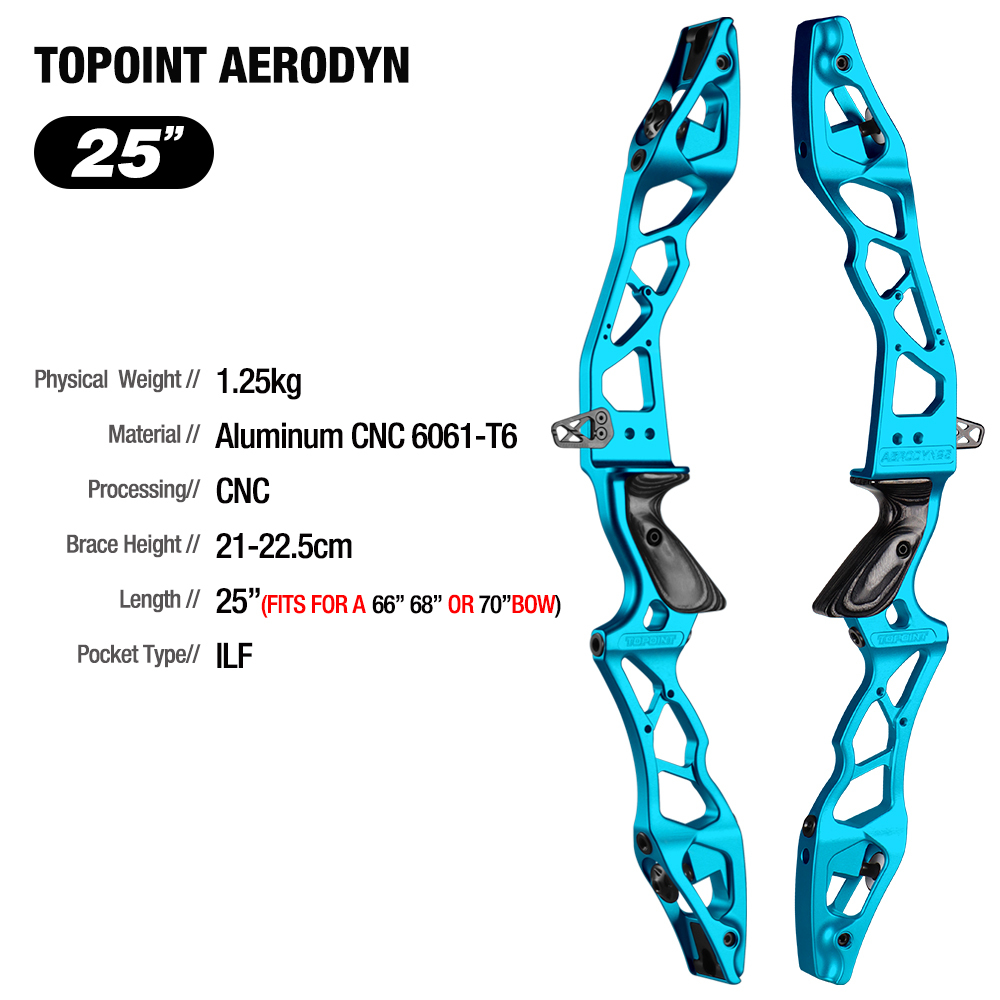

Product name Recurve Bow Riser  TOPOINT AERODYN
Brand TOPOINT
Material  Aluminum CNC 6061-T6
Specification PHYSICALWEIGHT >> 1.25kg
PROCESSING >> CNC
MATERIAL>>Aluminum CNC 6061-T6
POCKETTYPE >>ILF
BRACEHEIGHT >> 21-22.5CM
TYPE>>RH/LH
LENGTH >> 25"(FITS FORA 66" 68”OR 70 BOW)
GRIP >>Special unique designed wooden grip


  Aluminum alloy bow riser,light weight, scientific weight distribution of upper and lower bow pieces, enhance stability effectively when you aiming during the shooting
Special alignment system,prevent the screw loosening design,could fit the Limbs degree
Right Hand /Left Hand Available

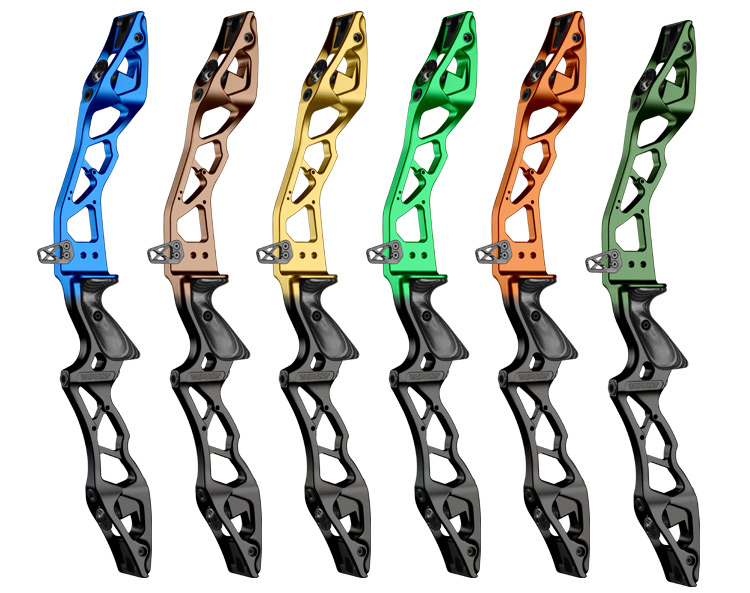

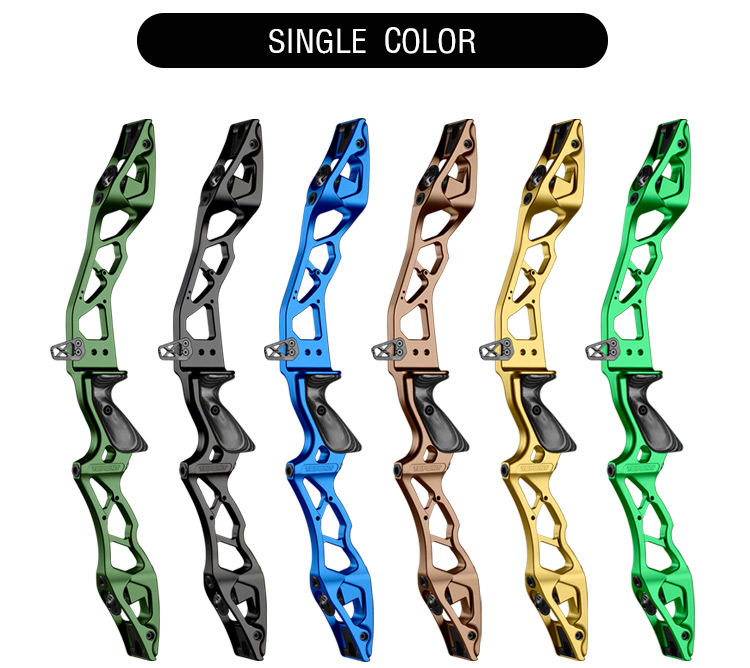

Arm  green// Black// Blue// Bronze// Gold// Green
Orange// Pink// Purple// Red// Silver// Smoke// Turqoise

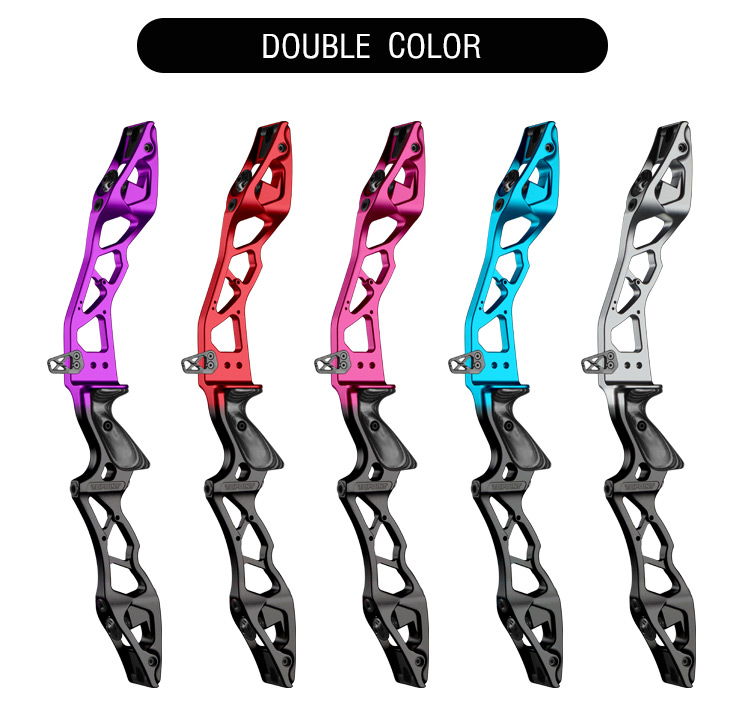

Purple & Black // Red & Black // Pink & Black // Turquoise  & Black // Smoke & Black
Blue & Black// Bronze & Black// Golden & Black// Green & Black// Orange & Black// Arm green & Black

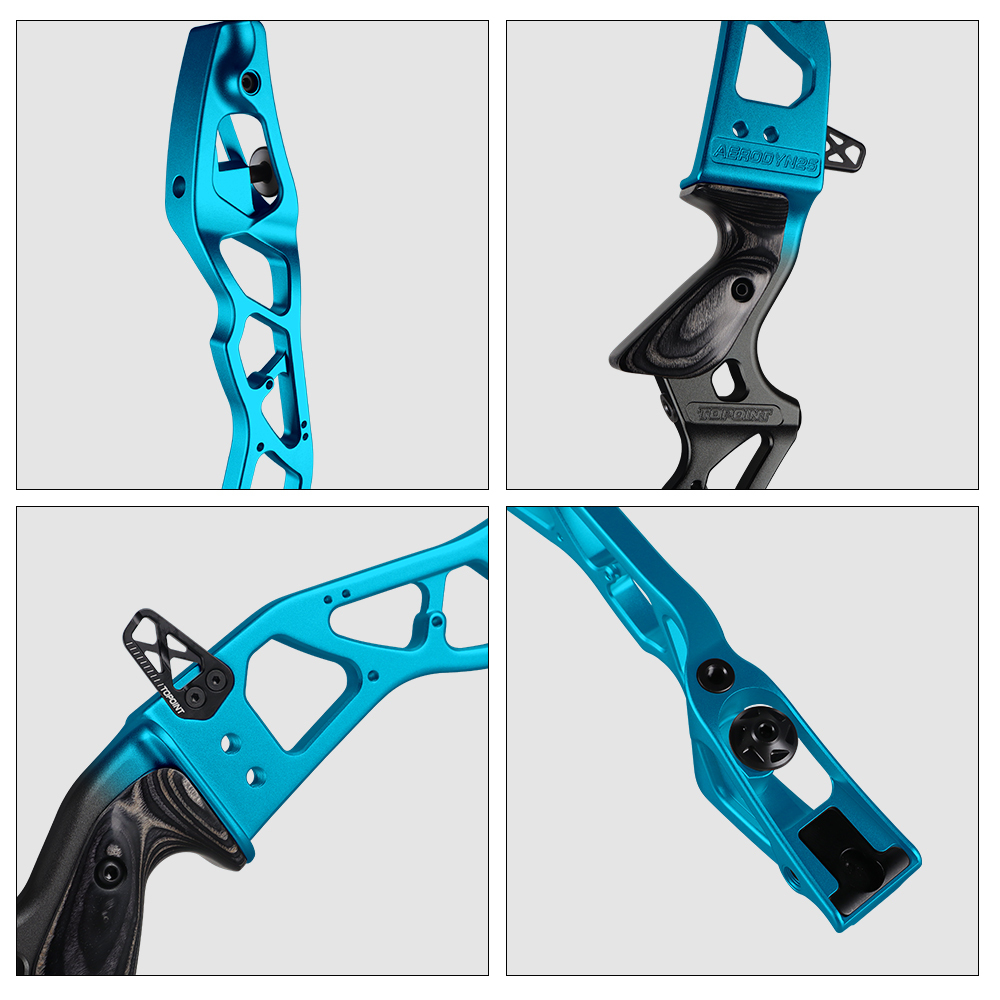

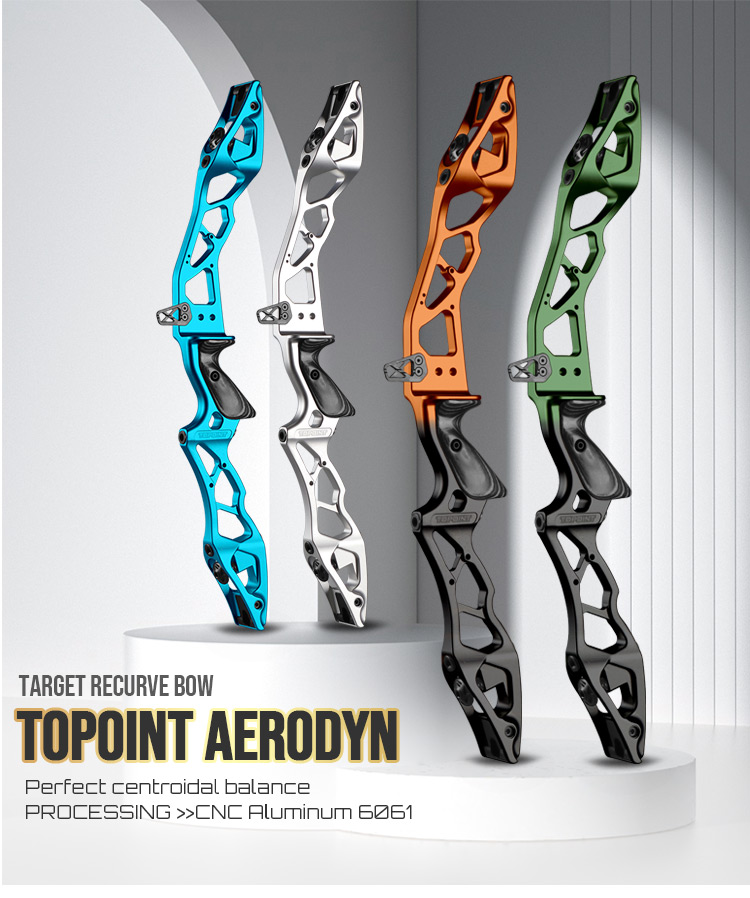

Bow Riser  - Aluminum CNC 6061-T6
PHYSICALWEIGHT >>1.25kg

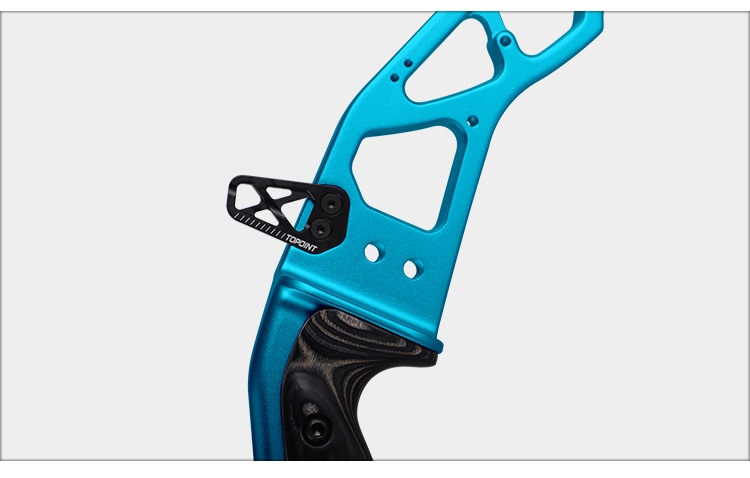

New upgrade-Clicker Extension

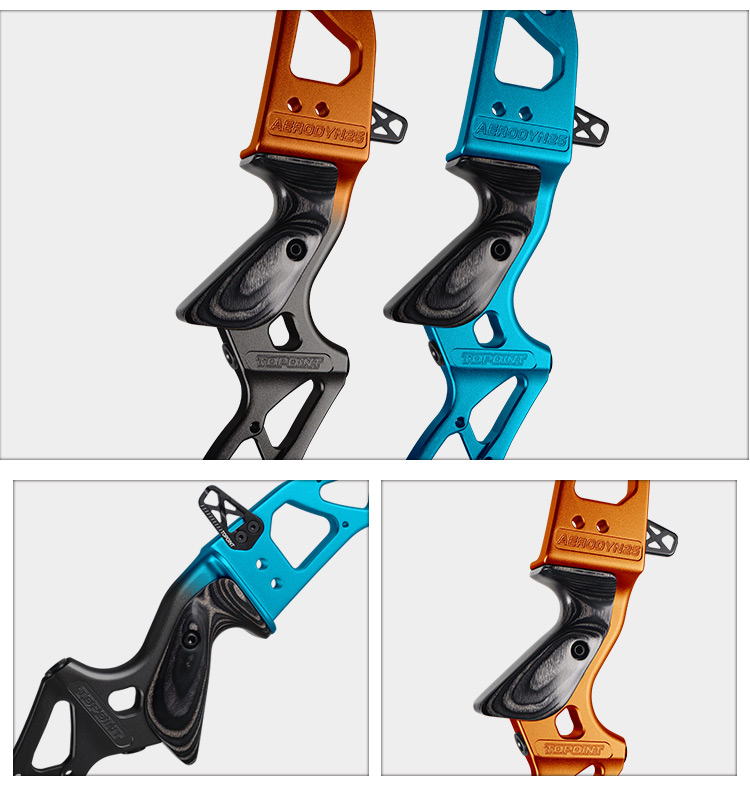

Special unique designedwooden grip

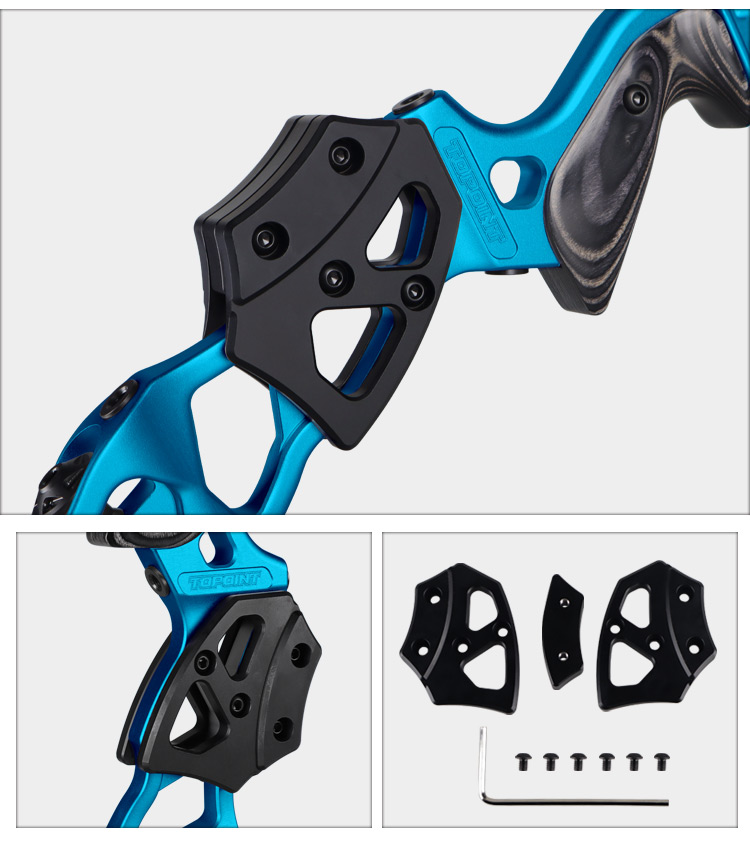

Barebow weight for AERODYN risers

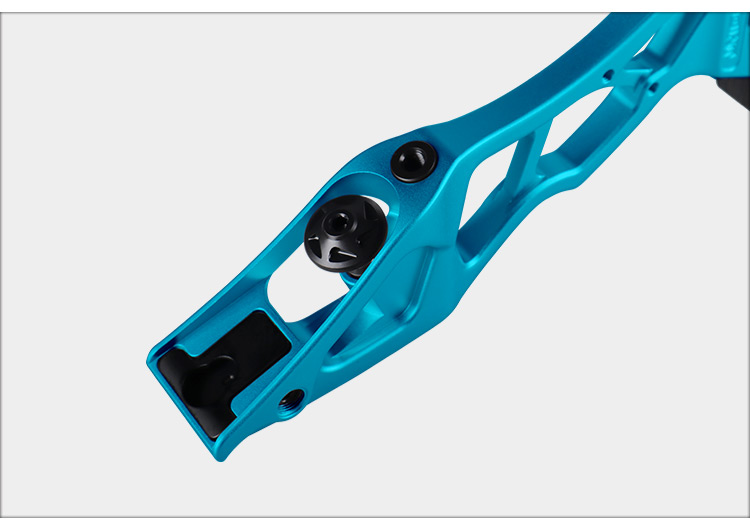

The ILF device can install the bow blade without  allen

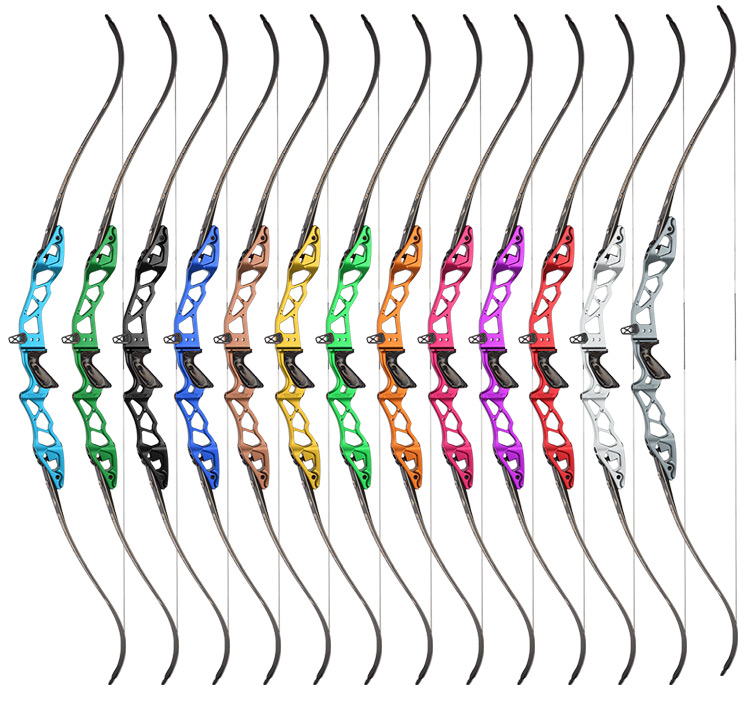

Bow length: Riser and limb fitting
       In order to properly assemble the limbs with the riser, you will need to push the lLFdetent part from the limb into the appropriately sized slot on the riser until you hear aclick.
TOPOINT Length of riser Long Limbs Medium Limbs Short Limbs
25 inch 70" 68" 66"
Brace height
      Brace height is the horizontal distance between the grip and the bowstring.Changing the brace height does not affect the draw weight but can significantly affectbow performance. A higher brace height will decrease velocity while a lower brace heightwill increase velocity.
TOPOINT Recurve Bow Long Limbs Medium Limbs Short Limbs
25 inch 22~23.5cm 21~22.5cm 20.5~22cm

Tiller and draw weight adjustability

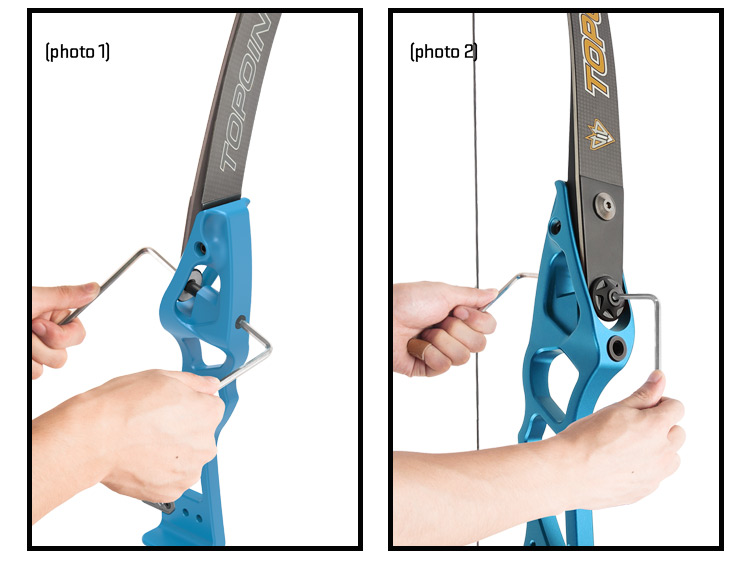

                To adjust the tiller and bow weight, you first need to loosen the weight/tiller lockingbolt with the Allen key (photo1). Use the Allen key to turn the weight/tiller adjustment boltclockwise to increase bow weight and counter clockwise to decrease bow weight (photc2). When the correct poundage is set, tighten the locking bolt located at back of the riser(photo1). It is best to adjust tiller and weight while the bow is unstrung.
Tiller and draw weight adjustability

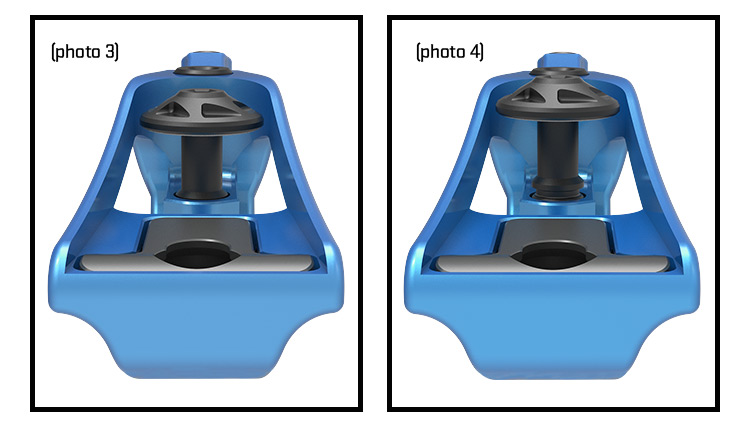

               When adjusting the tiller and bow weight, do not exceed the recommended turns outfrom the maximum position(photo 3). Maximum opening: 4 complete turns starting from closed position (photo 4).

Limb/riser alignment

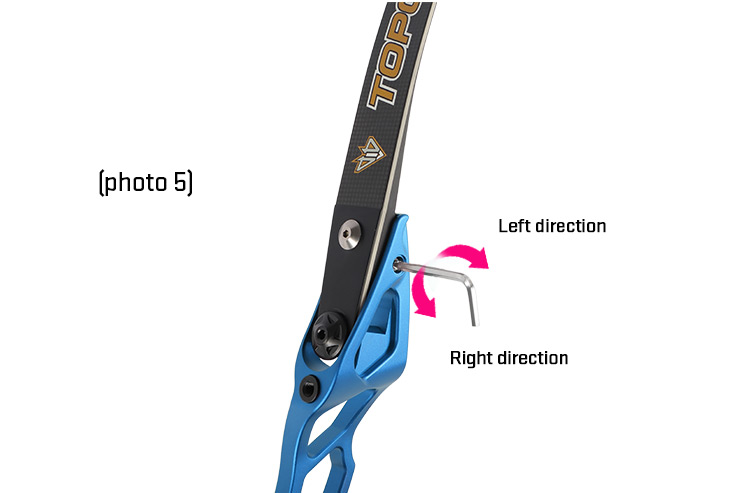

                Before adjusting the alignment of the riser, first check the center string positiontowards the riser. You can adjust the centershot without unstringing your bow.          To adjust limb position to the left, loosen the inner left side bolt (photo 5) andtighten the right sided one till the limb iscentered. 3. Once the limb is centered, retighten the left side bolt(photo 6)4. Fasten both locking screws(photo 5)
