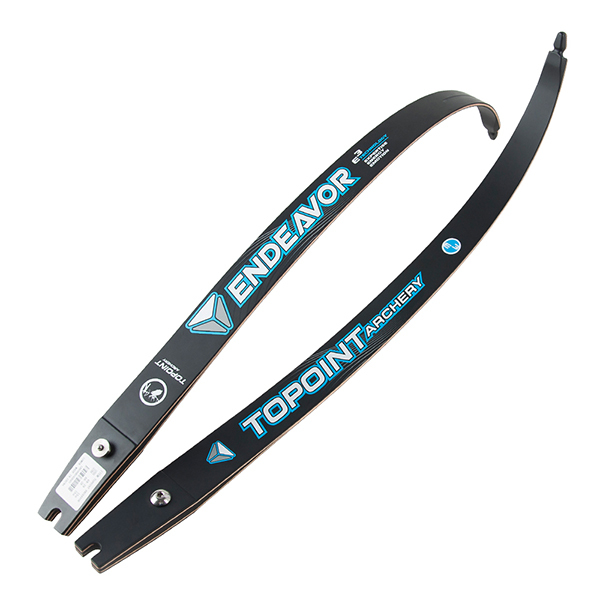

TOPOINT ARCHERY ENDEAVOR ,Compressed Fiber Glass/Hard Maple Recurve Bow Limbs ILF Device, 16-44LBS,2# increments,Total Length 66",68", 70" Compatible

Original high quality replacement limbs for Takedown Bow. High quality limbs provides durability to last a lifetime, for a smooth pull and accurate shot.
Cost-effective limbs made of glass laminates surrounding a hard maple core.
1 Review(s) Sold:2
Price:
USD
$159.99
$199.99
  • Length:
    66"
    68"
    70"
  • Draw Weight:
    16lbs
    18lbs
    20lbs
    22lbs
    24lbs
    26lbs
    28lbs
    30lbs
    32lbs
    34lbs
    36lbs
    38lbs
    40lbs
    42lbs
    44lbs
Quantity:
-
+
(516 available)
Please select the information you wantX
Add to Favorite Items
  • Description
  • Reviews(1)

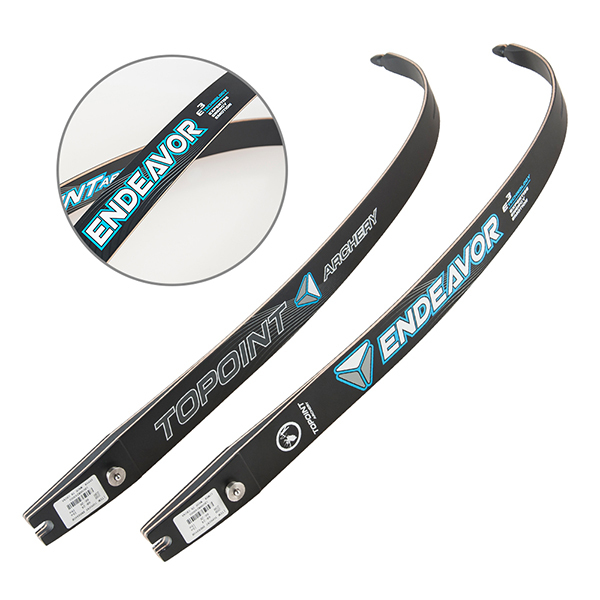

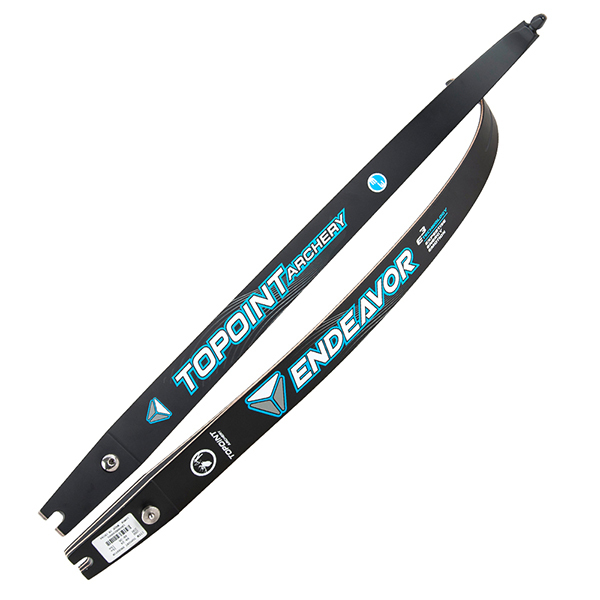

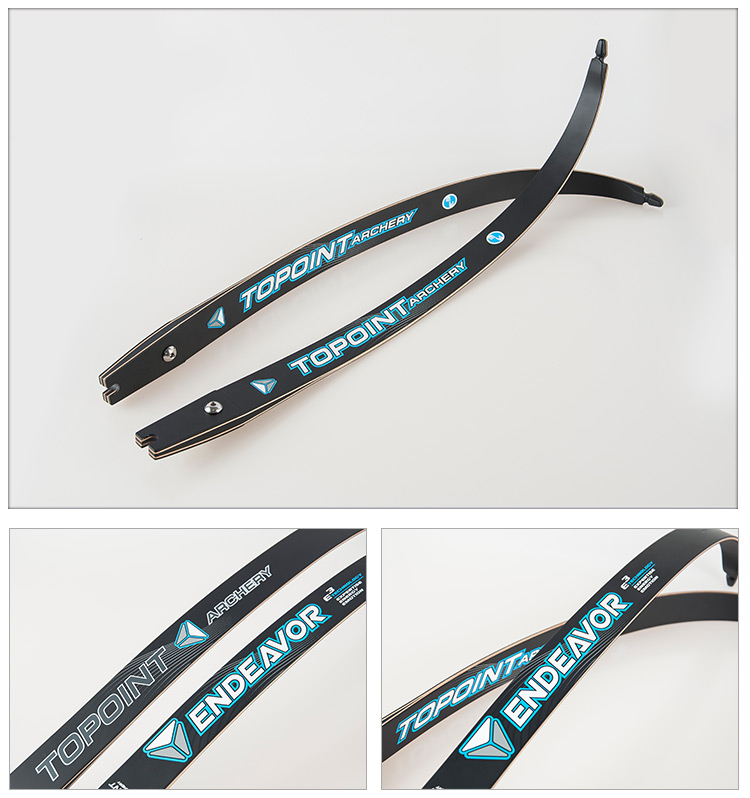

Product name ENDEAVOR GLASS WOOD LIMBS
Brand TOPOINT

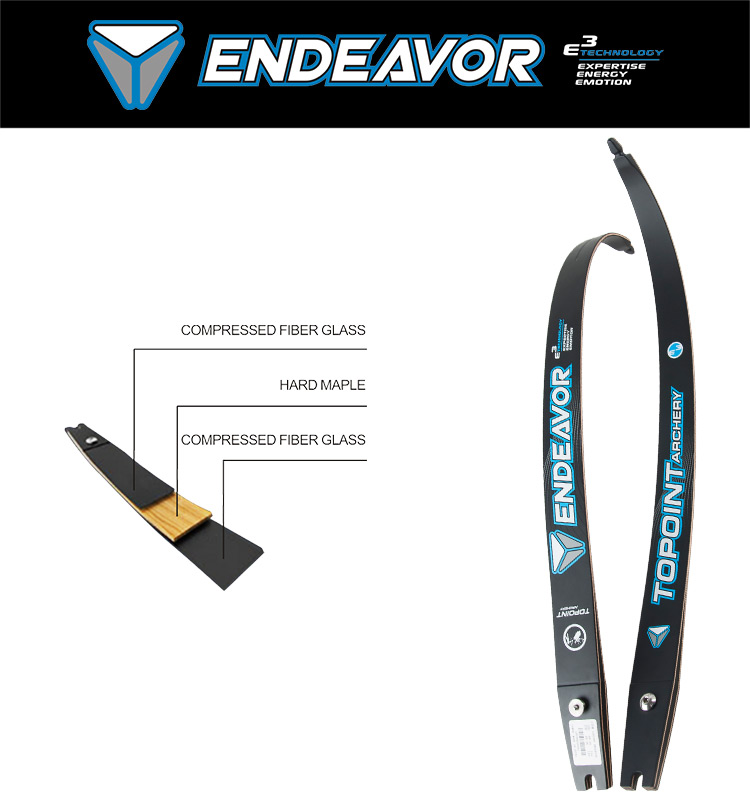

Material COMPRESSED FIBER GLASS / HARD MAPLE

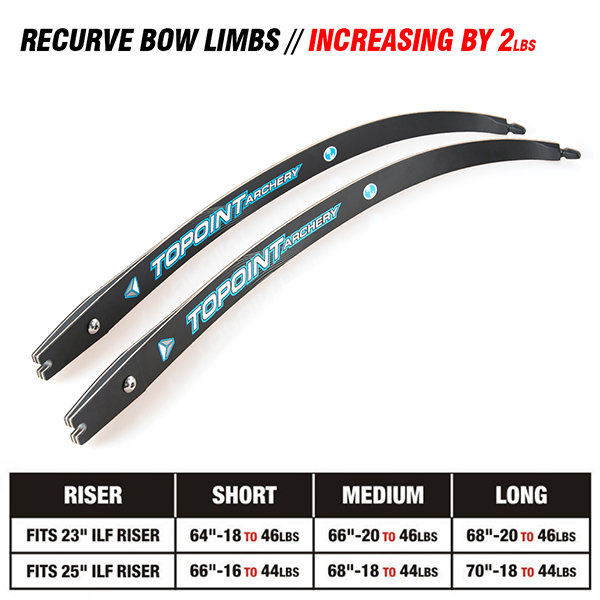

INCREASING BY 2LBS RISER SHORT MEDIUM LONG
FITS 23" ILF RISER 64"-18 T0 46LBS 66"-20 T0 46LBS 68" -20 T0 46LBS
FITS 25" ILF RISER 66"-16 T0 44LBS 68"-18 T0 44LBS 70"-18 T0 44LBS
  Cost-effective limbs made of glass laminates surrounding a hard maple core.The limbs have been tested for straightness to insure there's no twistingthrough the draw cycle.



ENDEAVOR GLASS WOOD UIMBS
        Cost-effective limbs made of glass laminatessurrounding a hard maple core.The limbs have been tested for straightness to insurethere's no twisting through the draw cycle.
INCREASING BY 2LBS RISER SHORT MEDIUM LONG
FITS 23" ILF RISER 64"-18 T0 46LBS 66"-20 T0 46LBS 68" -20 T0 46LBS
FITS 25" ILF RISER 66"-16 T0 44LBS 68"-18 T0 44LBS 70"-18 T0 44LBS

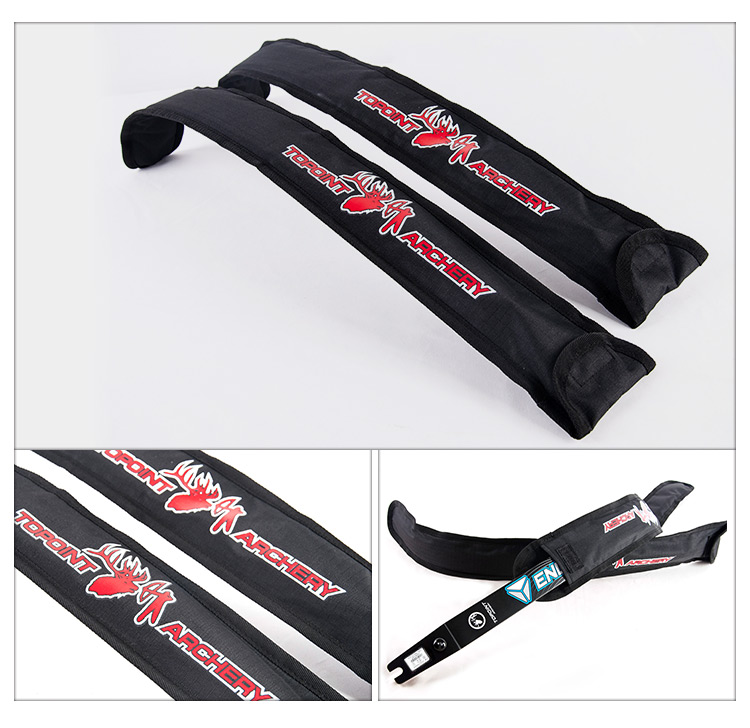

Topoint Archery Exclusive Package
Tiller and draw weight adjustability

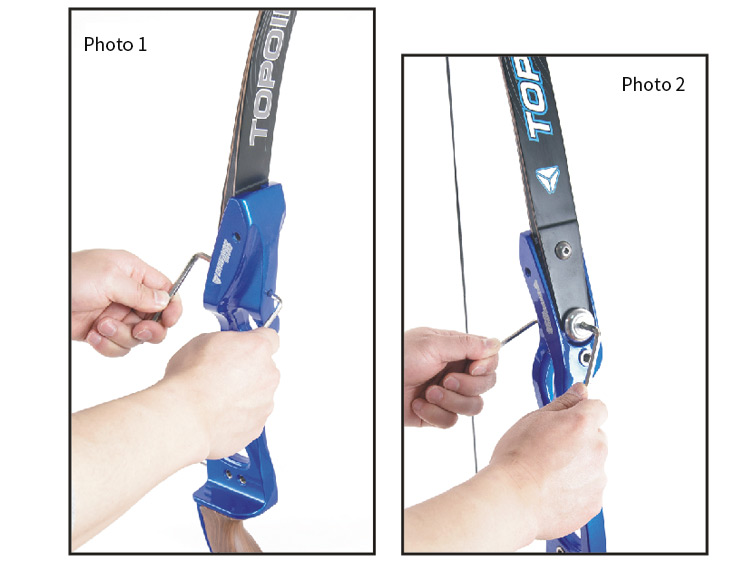

  To adjust the tiller and bow weight, you first need to loosen the weight/tiller locking bolt with theAllen key (photo 1). Use the Allen key to turn the weight/tiller adjustment bolt clockwise to increasebow weight and counter clockwise to decrease bow weight (photo 2). When the correct poundage isset, tighten the locking bolt located at back of the riser (photo 1). lt is best to adiust tiller and weightwhile the bow is unstrung.

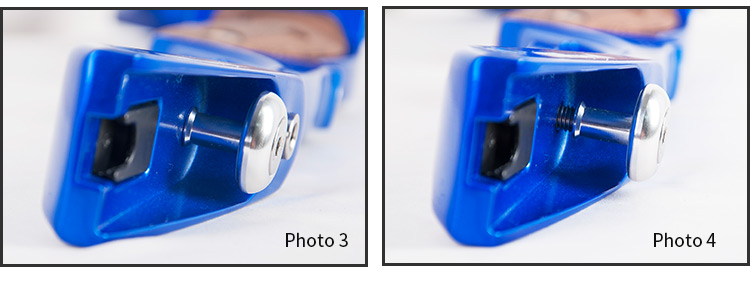

         When adjusting the tiller and bow weight, do not exceed the recommended turns outfrom themaximum position(photo 3)
Maximum opening: 3 complete turs starting from closed position (photo 4)

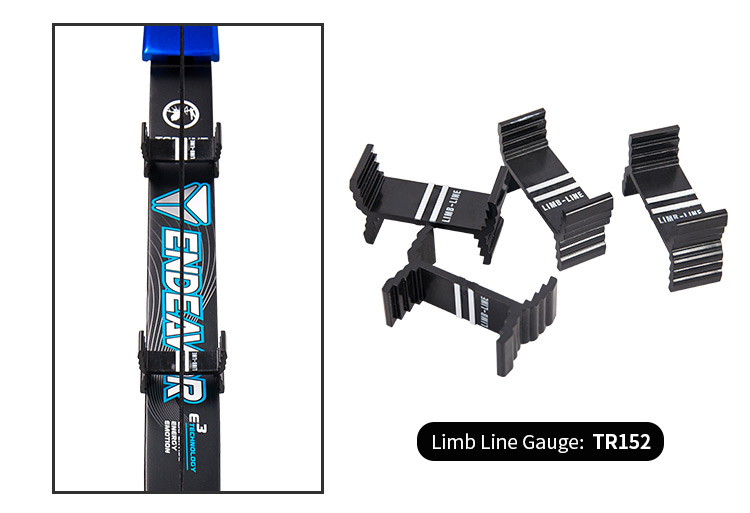

Limb /riseralignment
        Before adjusting the alignment of the riser, first check the center string position towards the riser.
You can adjust the centershot without unstringing your bow.

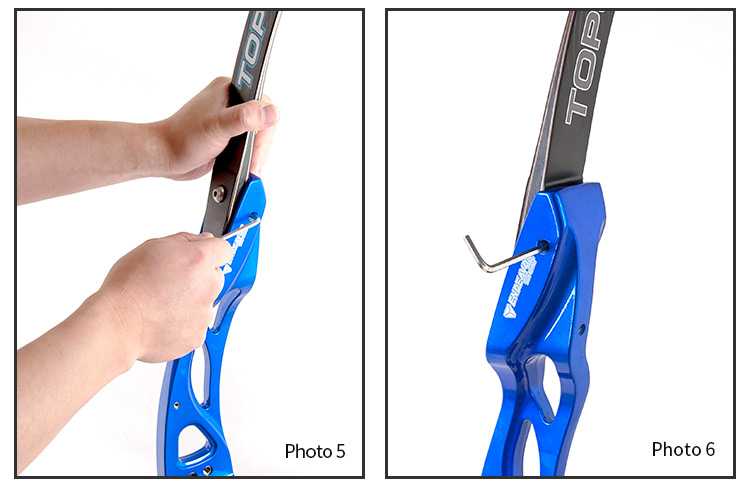

1. To adjust limb position to the left, loosen the inner left side bolt(photo 5 & 6) and tighten the rightsided one till the limb iscentered.
2. Once the limb is centered, retighten the left side bolt (photo 6)
