Aluminum CNC Machining
Lighter Aluminum Material 6061-T6

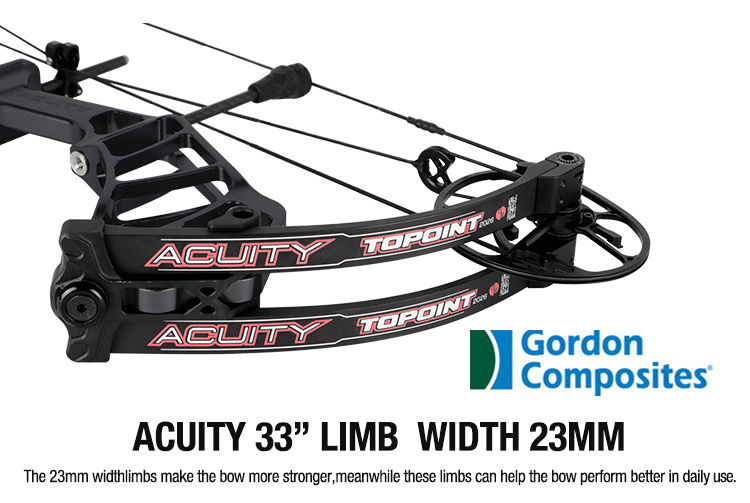

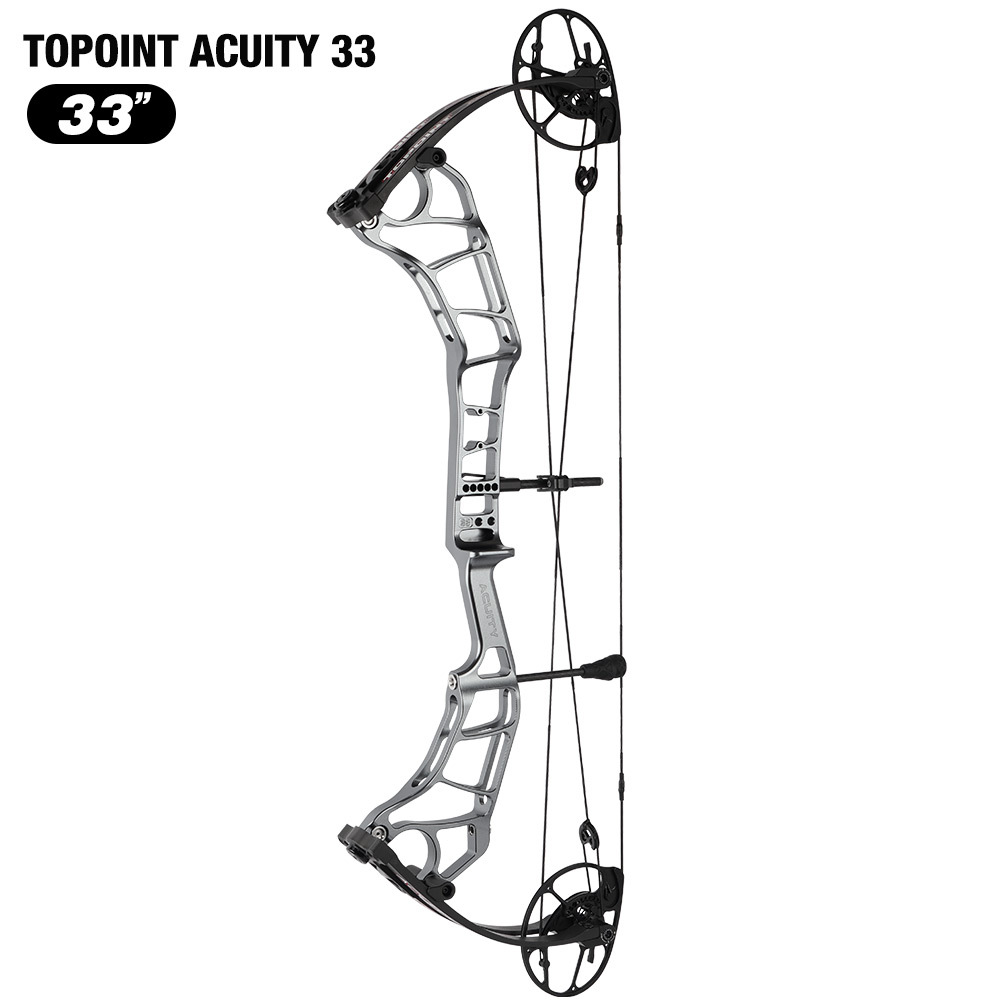

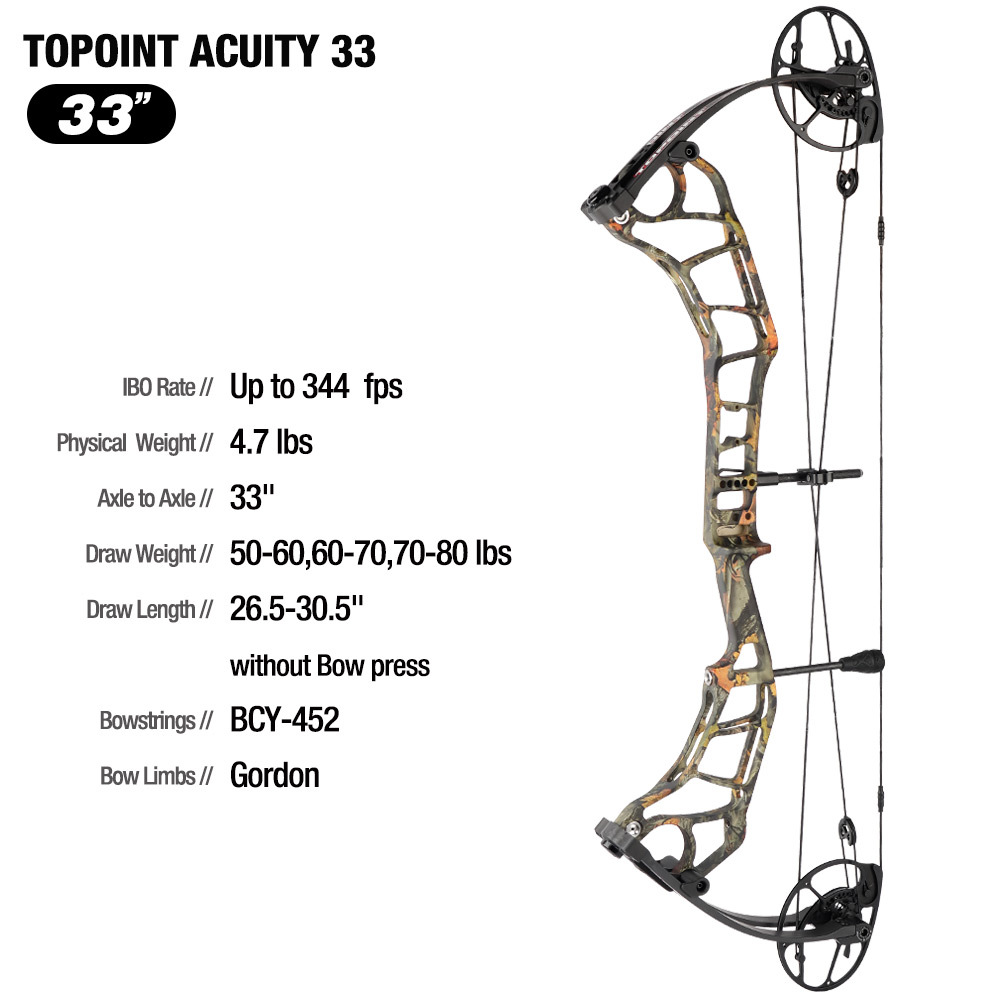

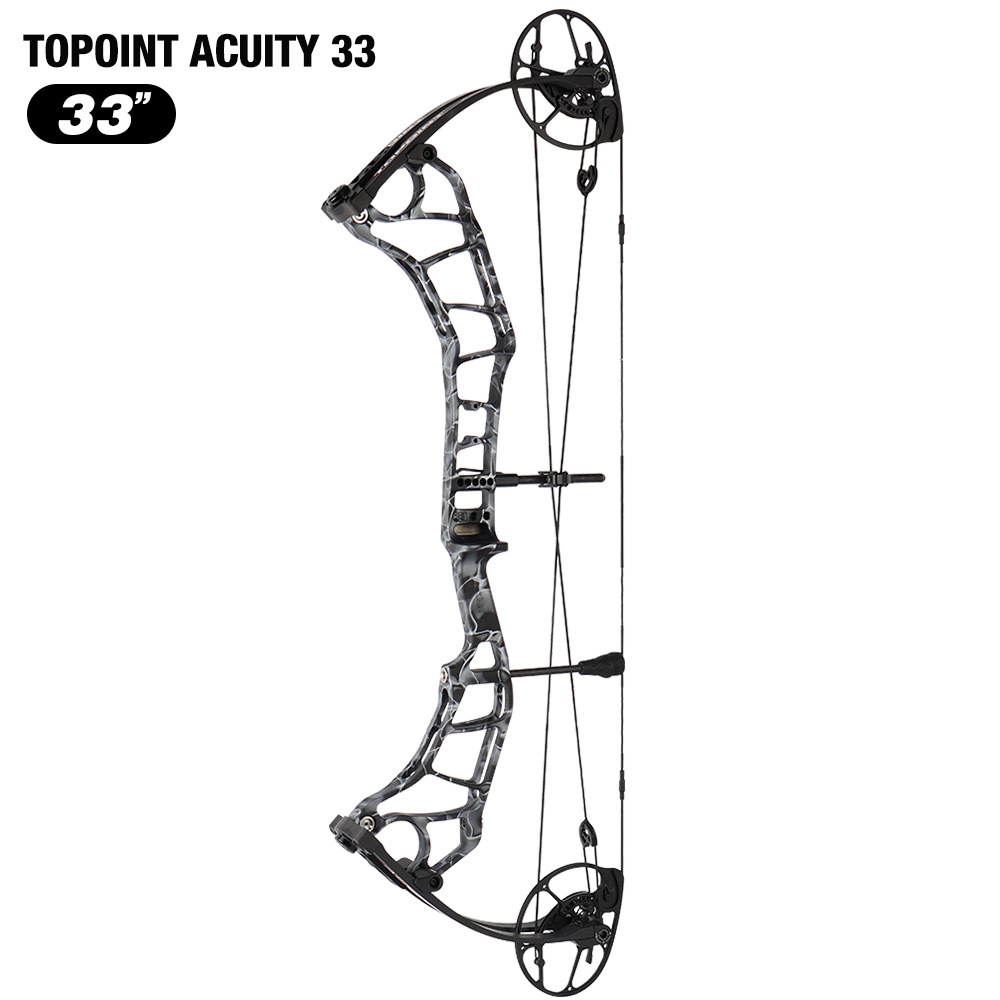

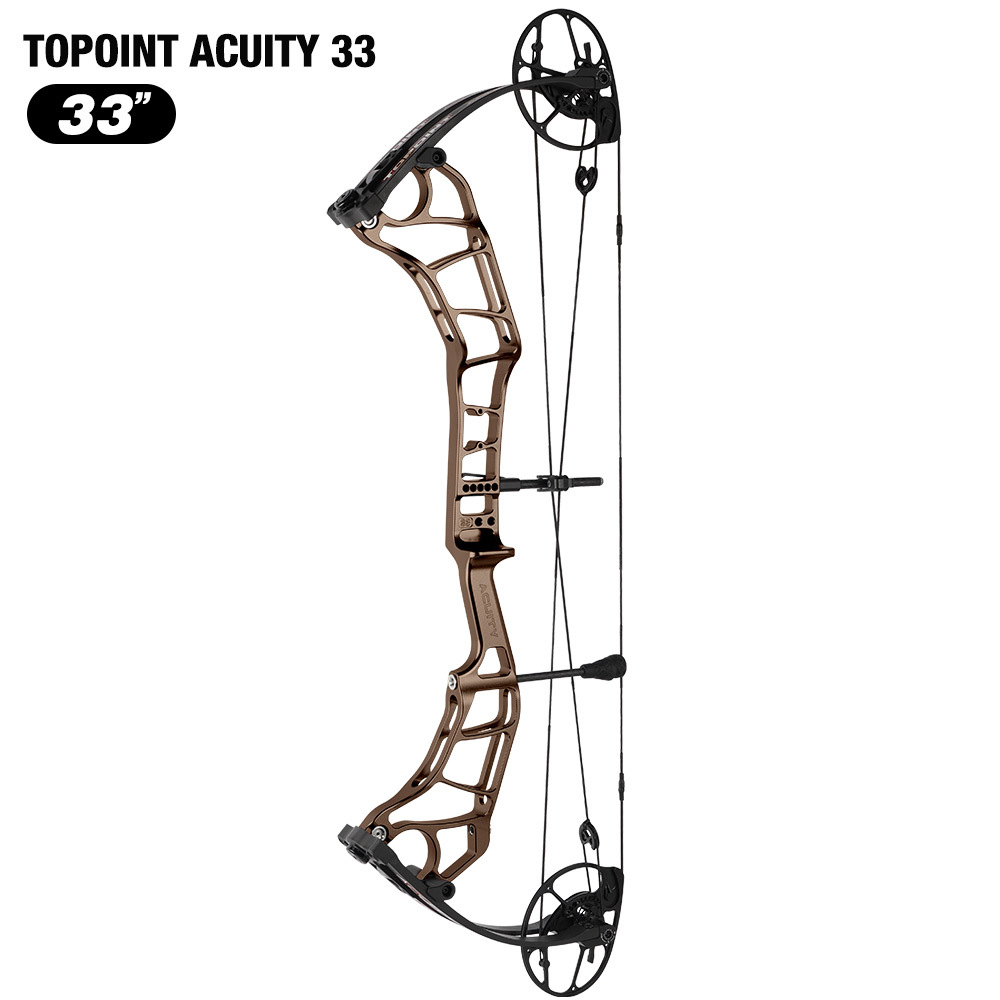

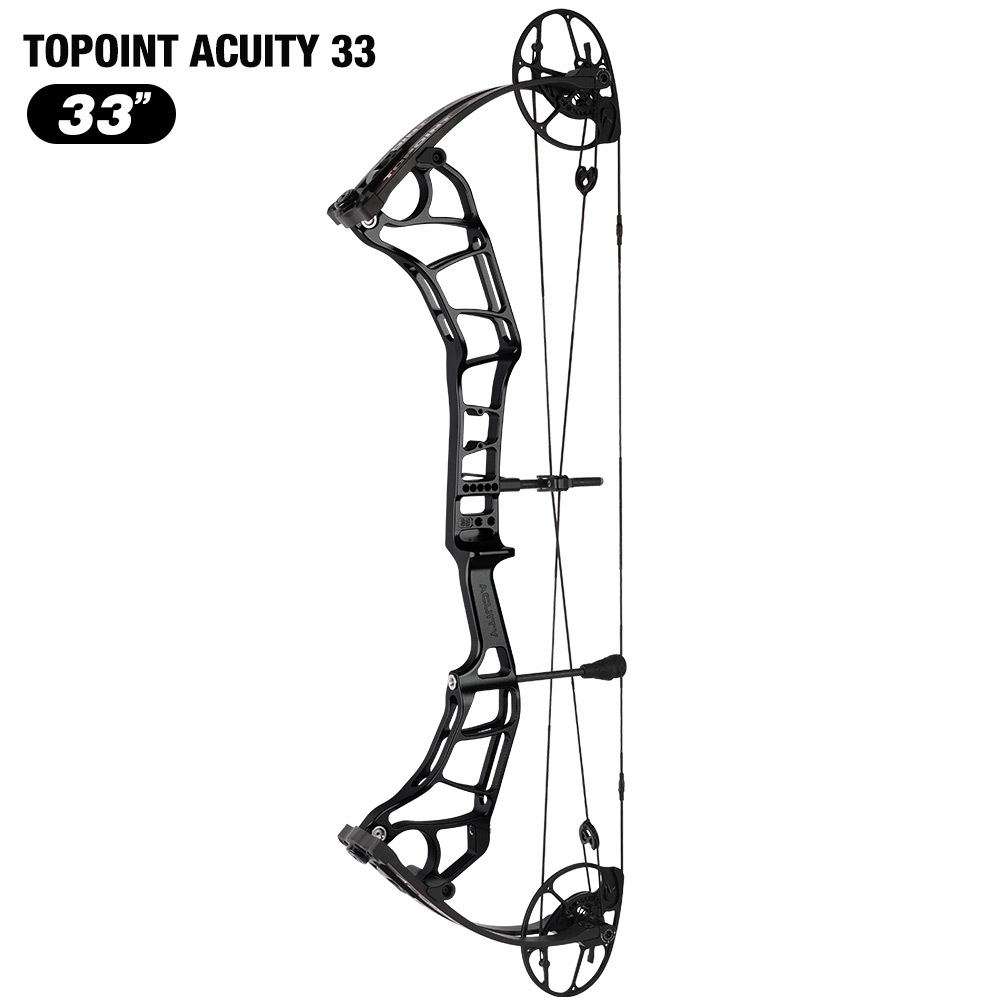

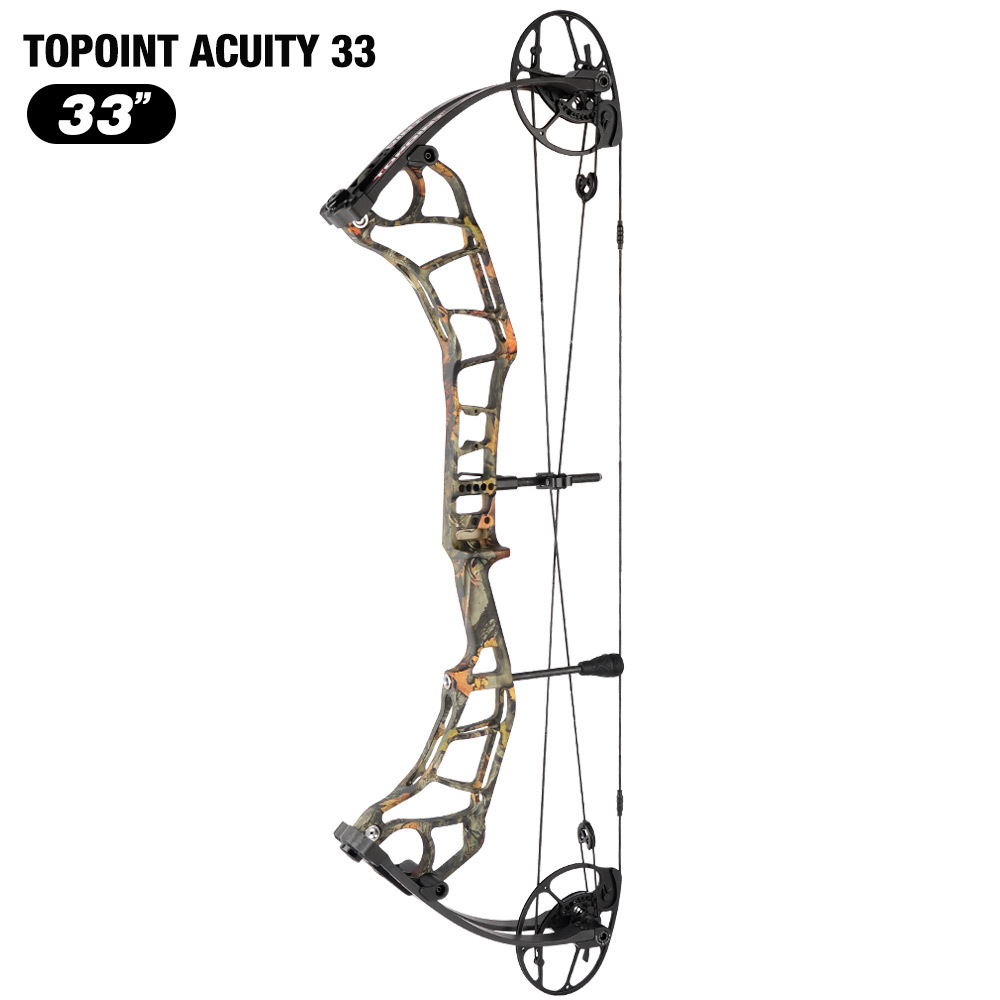

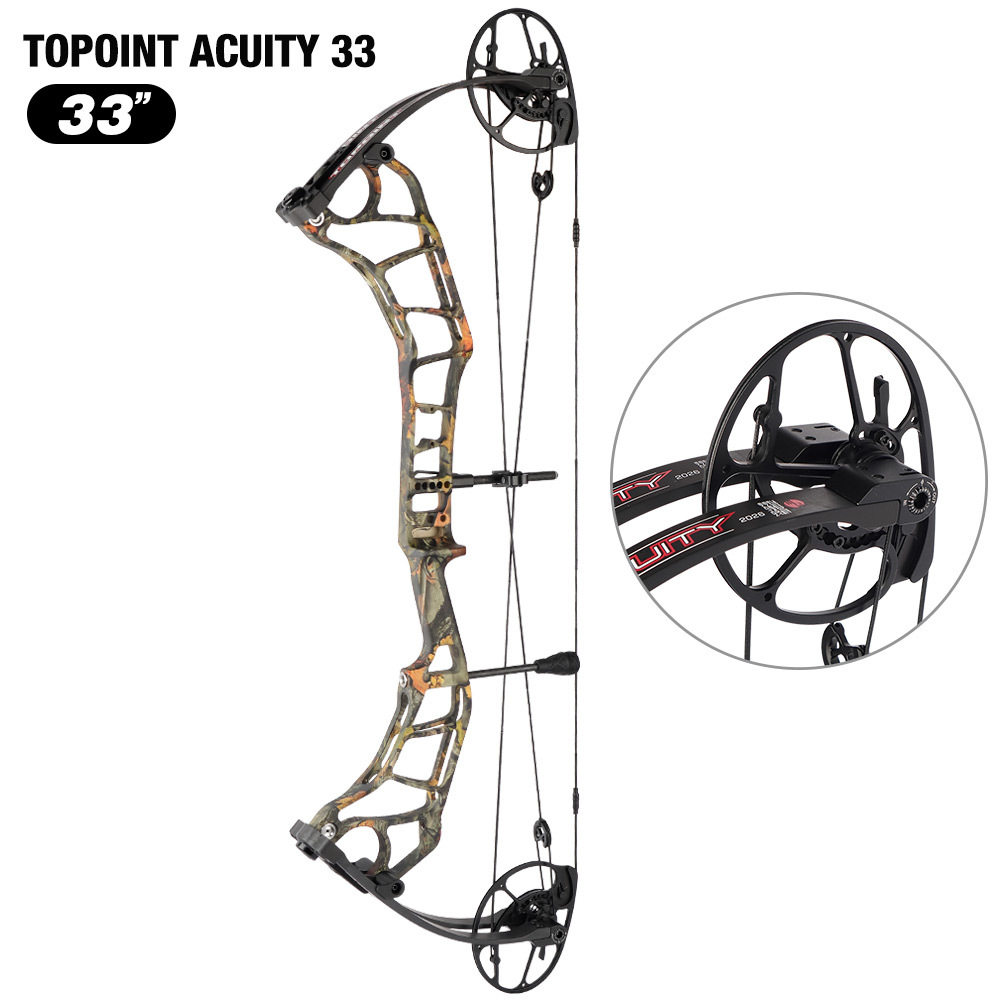

ACUITY 33”LIMB WIDTH 23MM

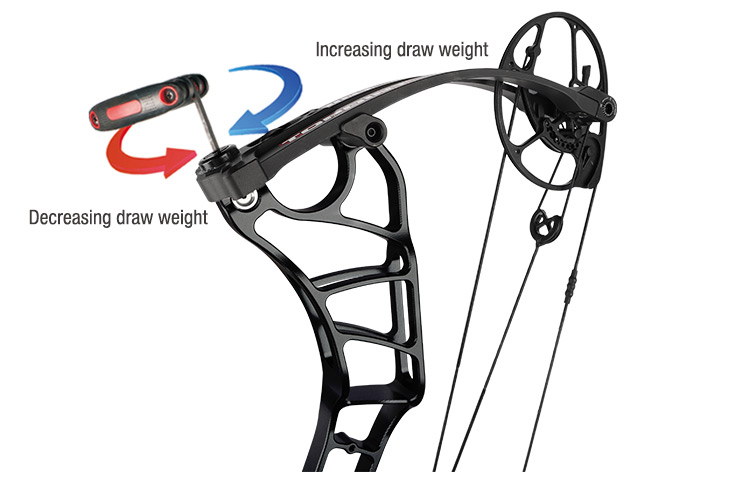

Draw Weight Adiustments Can Be Made By Turning The Limb BoltUsing A 7/32"Allen key, lt is Important To Adjust Both Limb Bolts inEqual Amounts,Each rotation equals approximately 2.5 pounds of drawweight,Do Not Exceed The Recommended Turns Out From The MaximumDraw Weight. See below the limit position of counter-clockwise rotation,when you can see the screw head through the round hole. Pleaseimmediately stop counter-clockwise turning.

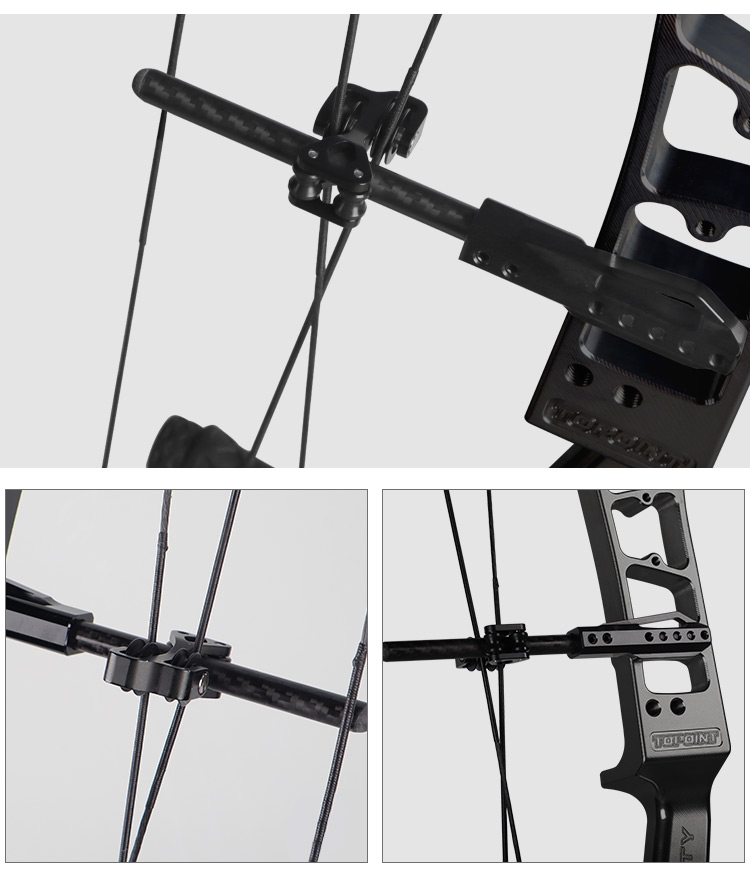

ROLLER CABLE SLIDE
Higher speed with aluminum material and stainless axles Lower abrasion

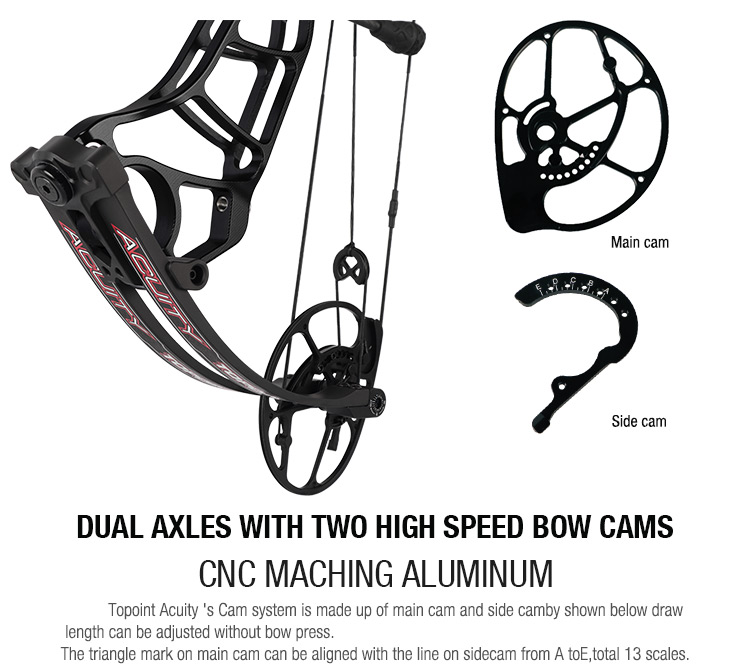

| Label |
A |
A1 |
A2 |
B |
B1 |
B2 |
C |
C1 |
C2 |
D |
D1 |
D2 |
E |
| Draw Length |
26.5" |
26.75" |
27" |
27.5" |
27.75" |
28" |
28.5" |
28.75" |
29" |
29.5" |
29.75" |
30" |
30.5" |
 |
