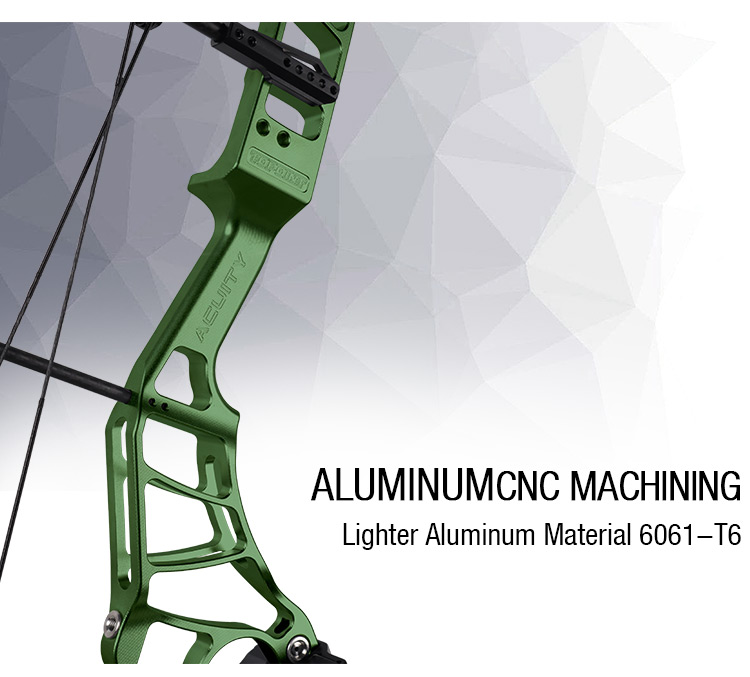

TOPOINT ARCHERY Acuity 31 Compound Bow Hunting Bow CNC Milling Riser USA Gordon Composites Limb Archery Bow

Price:
USD
$750.00
$1299.00

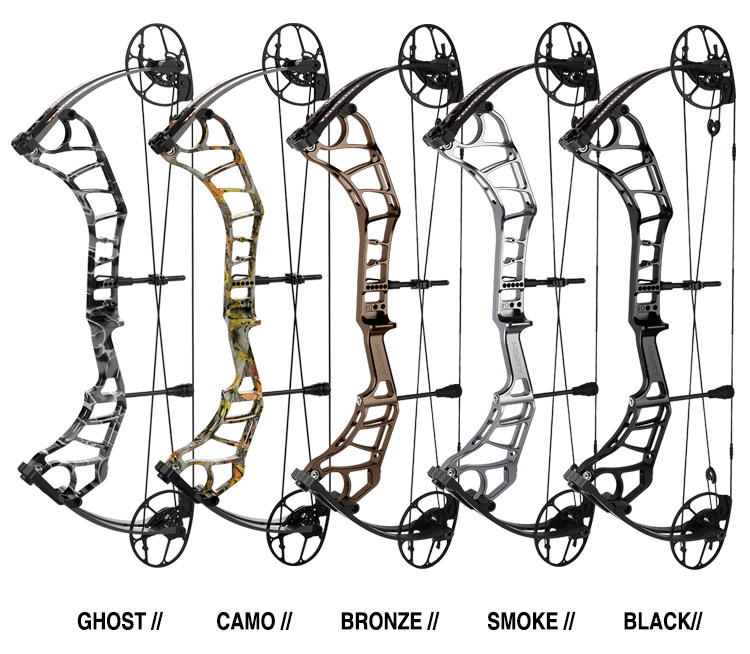

  • Color/Package:
    Black
    Smoke
    Bronze
    Arm Green
    Camo
    Ghost
  • Draw Weight:
    50-60lbs
    60-70lbs
    70-80lbs
  • Hand:
    RH
Quantity:
-
+
(180 available)
Please select the information you wantX
  • Description
  • Reviews

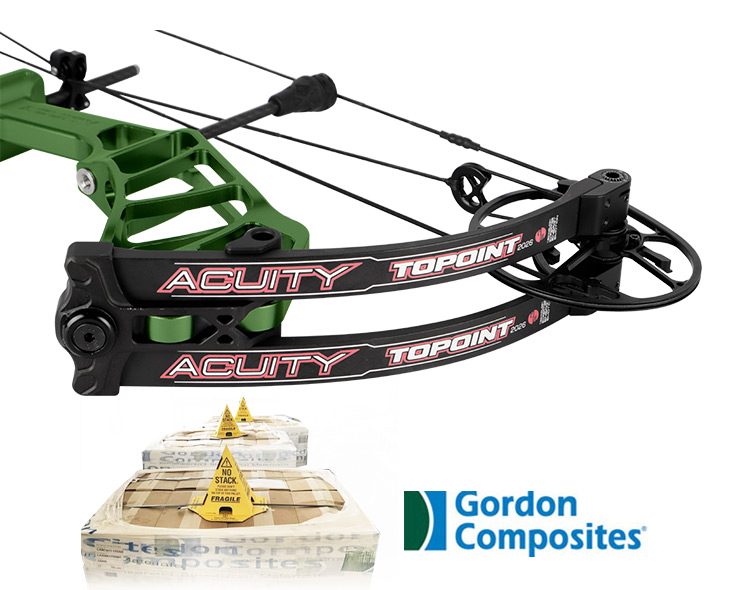

ACUITY 31”LIMB WIDTH 23MM
        The 23mm width limbs make the bow more stronger,mean while these limbs can help the bow perform better in daily use.

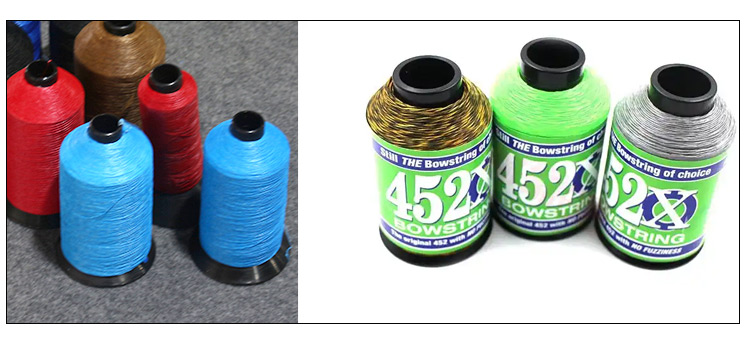

BCY-X99 BOW STRING & CABLES Imported from the best stringsupplies of BCY Company in USA.
One ofthe best string supplies in the world.

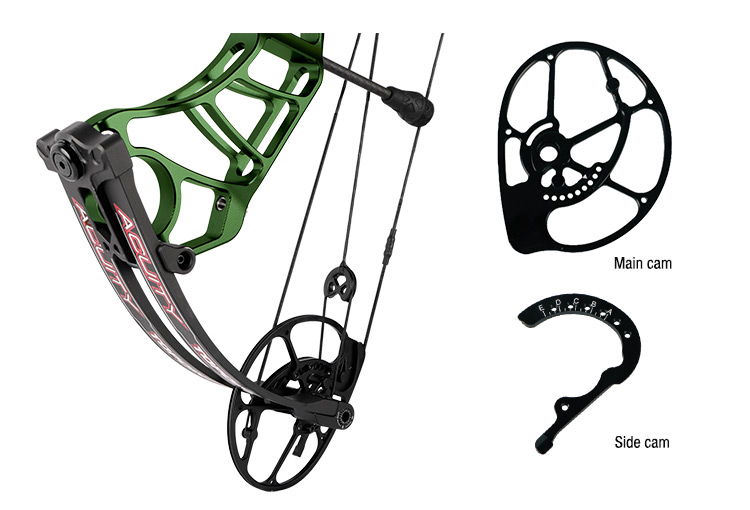

DUAL AXLES WITH TWO HIGH SPEED BOW CAMS CNC MACHING ALUMINUM
          Topoint Acuity 's Cam system is made up of main cam and side camby shown below draw length can be adjusted without bow press.The triangle mark on main cam can be aligned with the line on sidecam from A toE,total 13 scales.

Label A A1 A2 B B1 B2 C C1 C2 D D1 D2 E
Draw Length 26" 26.25" 26.75" 27" 27.5" 27.75" 28" 28.5" 28.75" 29" 29.5" 29.75" 30"

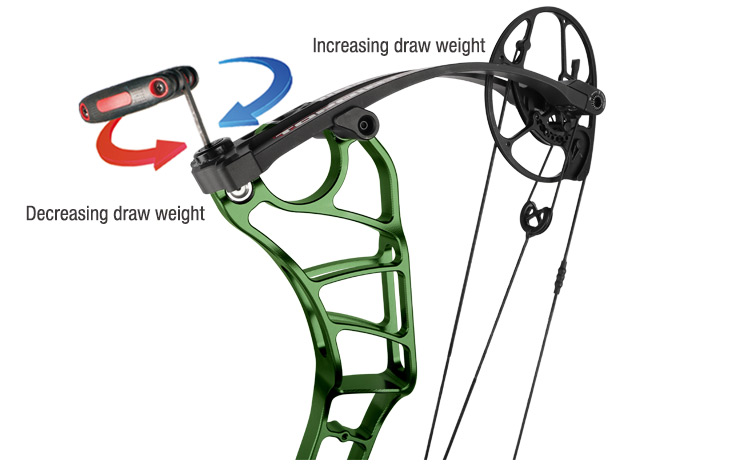

DRAW WEIGHT ADJUSTABILITY
        Draw Weight Adiustments Can Be Made By Turning The Limb BoltUsing A 7/32"Allen Key, It is lmportant To Adjust Both Limb Bolts in Equal Amounts,Each rotation equals approximately 2.5 pounds of draw weight,Do Not ExceedThe Recommended Turns 0ut From The Maximum Draw Weight See below the limit position of counter-clockwiserotation,when you can see the screw head through the round hole. Please immediately stop counter-clockwise turning.

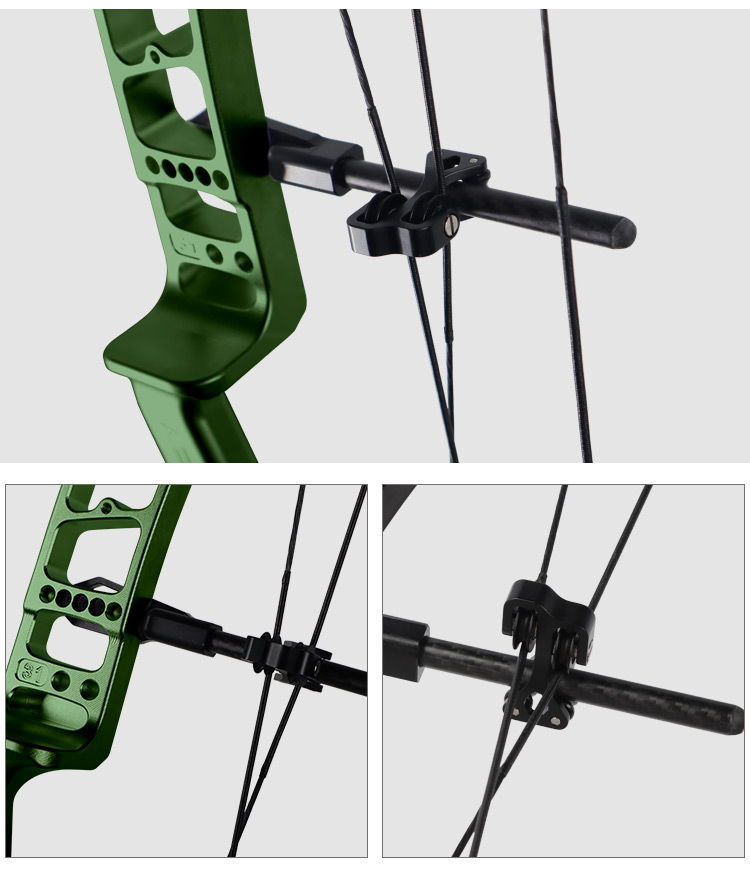

ROLLER CABLE SLIDE
        Higher speed with aluminum material and stainless axles Lower abrasion.
