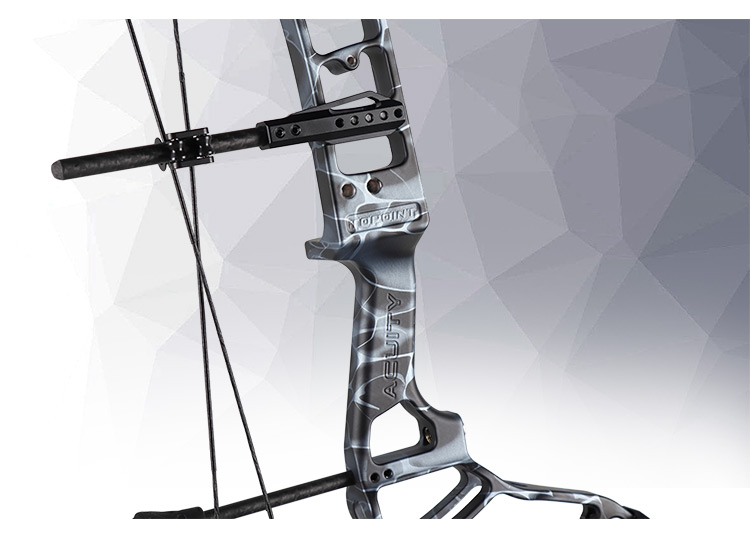

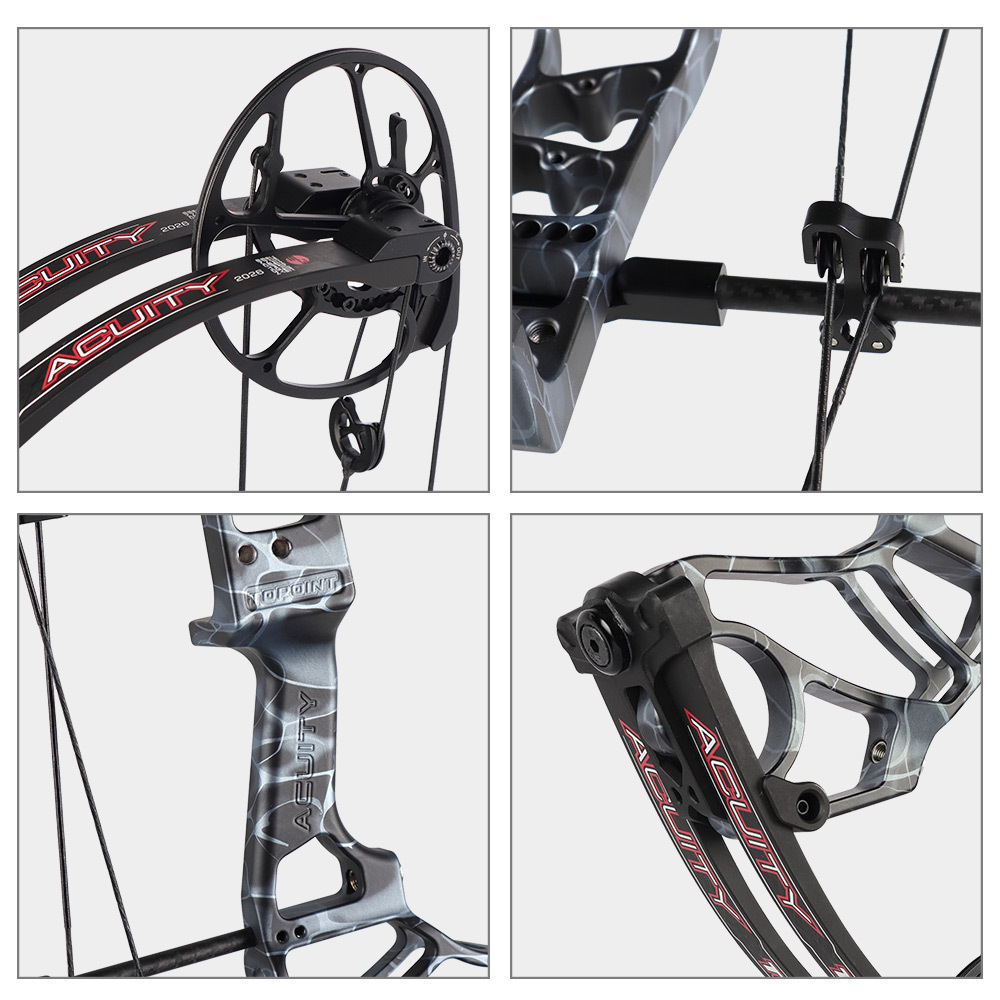

Aluminum CNC Machining
Lighter Aluminum Material 6061-T6 Stronger Rigidity/Anodized Surface

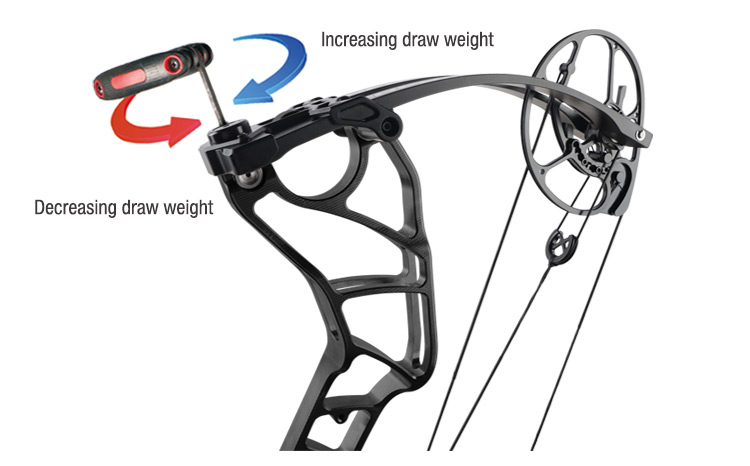

  DRAW WEIGHT ADJUSTABILITY
Draw Weight Adiustments Can Be Made By Turning The Limb BoltUsing A 7/32"Allen Key, It is lmportant To Adjust Both Limb Bolts in Equal Amounts,Each rotation equals approximately 2.5 pounds of drawweight,Do Not ExceedThe Recommended Turns 0ut From The MaximumDraw Weight See below the limit position of counter-clockwiserotation,when you can see the screw head through the round hole. Pleaseimmediately stop counter-clockwise turning.

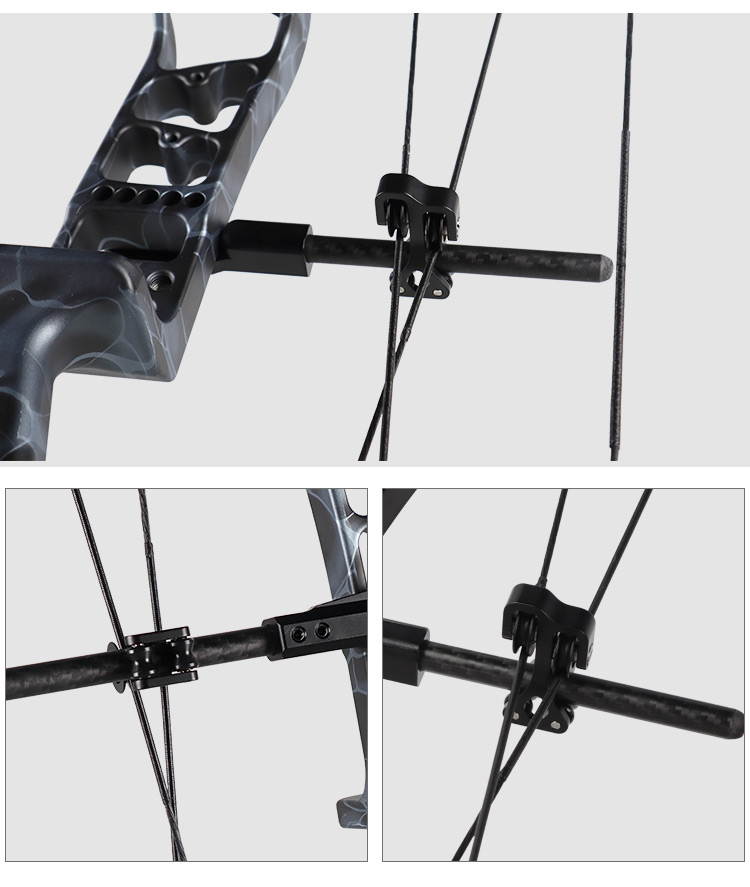

ROLLER CABLE SLIDE
Higher speed with aluminum material and stainless axles Lower abrasion.
| DUAL AXLES WITH TWO HIGH SPEED BOW CAMS CNC MACHING ALUMINUM

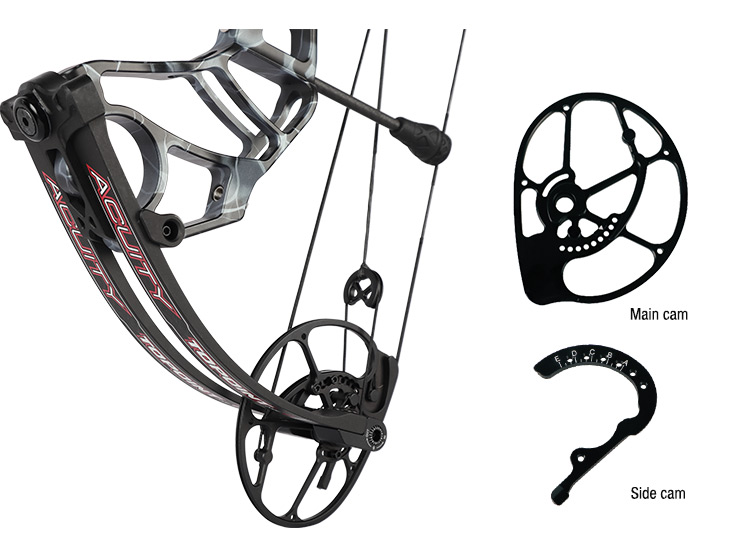

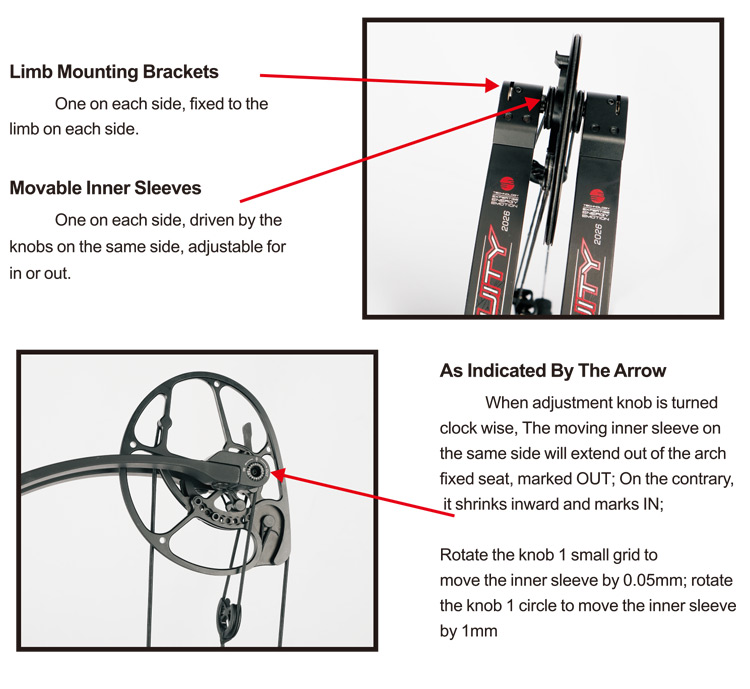

Topoint Acuity 's Cam system is made up of main cam and side camby shown below draw length can be adjusted without bow press.The triangle mark on main cam can be aligned with the line on sidecam from A to E,total 13 scales.
|
| Label |
A |
A1 |
A2 |
B |
B1 |
B2 |
C |
C1 |
C2 |
D |
D1 |
D2 |
E |
| Draw Length |
25.25" |
25.5" |
25.75" |
26.5" |
26.75" |
27.0" |
27.5" |
28.0" |
28.25" |
28.75" |
29.0" |
29.25" |
29.5" |
 |
